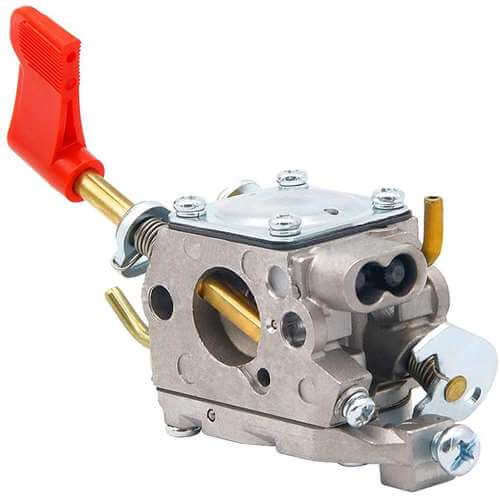

Husqvarna 545006017 Carburetor Assembly Kit – Genuine OEM Replacement Carburetor Kit

Part Number: 545006017
Category: Trimmer, Pole Saw & Small Engine Fuel System Components
Type: C1U-W32 Carburetor Assembly Kit – Genuine OEM Replacement Carburetor Kit

The Husqvarna 545006017 Carburetor Assembly Kit is a genuine OEM replacement fuel-system component designed for select Husqvarna, Poulan, Poulan Pro, and Craftsman handheld outdoor power equipment.

Product Specifications

• Part Number: 545006017
• Manufacturer: Husqvarna
• Product Type: Carburetor Assembly Kit
• OEM Description: Kit Carb Assy C1U W32
• Carburetor Model: C1U-W32
• Alternate Description: C1U-W32 Carburetor / Complete Carburetor Assembly
• Component Type: Engine Fuel & Air Metering Component
• Function: Mixes Fuel and Air for Engine Combustion
• Primary Application: String Trimmer / Pole Saw
• Compatible Brand: Husqvarna
• Additional Applications: Select Poulan / Poulan Pro / Craftsman Equipment
• Additional Husqvarna-Family Applications: Model Dependent
• System: Engine Fuel / Air Intake System
• Component Location: Between the Air Intake and Engine Intake
• Associated Components: Fuel Lines / Air Filter / Intake / Primer System / Throttle Linkage
• Construction: Metal Carburetor Body
• Replacement Type: Direct OEM Replacement
• OEM Status: Genuine Husqvarna OEM Part
• Condition: New
• Quantity: 1 Carburetor Assembly Kit
• Part Number Reference: 545006017
• Alternate Number Format: 545 00 60-17
• UPC: 705788574551

The UPC and C1U-W32 designation are documented for 545006017 in Husqvarna replacement-parts listings.

Features & Benefits

• Genuine Husqvarna OEM replacement component
• Factory-designated C1U-W32 Carburetor Assembly Kit
• Designed for compatible handheld outdoor power equipment
• Mixes incoming air and fuel for combustion
• Helps restore proper engine fuel delivery
• Supports reliable engine starting
• Supports smooth acceleration
• Helps maintain stable engine operation
• Helps provide consistent power under load
• Durable metal carburetor construction
• Suitable for compatible string trimmers
• Suitable for compatible pole saws
• Used across select Husqvarna-family equipment
• Designed for application-specific fit
• Maintains the original fuel-system configuration
• Suitable for replacement of clogged, damaged, leaking, or worn carburetors
• Genuine OEM replacement rather than an unspecified aftermarket carburetor

Carburetor Function

The carburetor is responsible for preparing the combustible mixture used by the engine.

During operation, the 545006017 C1U-W32 Carburetor helps:

• Draw fuel from the fuel system
• Meter the appropriate amount of fuel
• Combine fuel with incoming air
• Deliver the mixture toward the engine
• Respond to throttle changes
• Support idle operation
• Support acceleration
• Supply the engine under operating load

Parts documentation describes the purpose of 545006017 as mixing air and gasoline before the combustible mixture enters the engine.

C1U-W32 Carburetor

The specific carburetor designation associated with 545006017 is:

C1U-W32

This designation is important because carburetors that appear physically similar can have different:

• Fuel-metering characteristics
• Linkage configurations
• Primer connections
• Fuel-line connections
• Mounting dimensions
• Internal calibration
• Adjustment specifications

For this reason, the OEM part number should be used to confirm compatibility rather than selecting a carburetor solely by appearance.

Documented Applications

The 545006017 Carburetor Assembly Kit is documented for select:

• Husqvarna string trimmers
• Husqvarna pole saws
• Poulan string trimmers
• Poulan Pro string trimmers
• Poulan Pro pole saws
• Craftsman handheld trimmers
• Husqvarna-manufactured handheld equipment

PartsTree documents the carburetor on multiple Poulan Pro machines, including PPB200E, PP136E, SM446E, PPB32SST, and PPB250E applications.

Other OEM-parts references identify 545006017 as manufactured by Husqvarna for compatible Poulan, Craftsman, and Husqvarna equipment.

Exact compatibility should always be verified using the equipment's complete model and type number.

Common Reasons for Replacement

Replacement of the 545006017 Carburetor Assembly Kit may be appropriate if the existing carburetor has:

• Become internally clogged
• Developed fuel leaks
• Become corroded
• Developed damaged fuel connections
• Become contaminated with old fuel deposits
• Developed damaged diaphragms or internal components
• Become difficult or impossible to properly adjust
• Sustained physical damage
• Developed excessive internal wear
• Become unsuitable for economical repair

A complete carburetor replacement can be useful when cleaning or rebuilding the existing unit does not restore reliable operation.

Possible Symptoms of Carburetor Problems

A worn, clogged, damaged, or improperly functioning carburetor may contribute to:

• Engine will not start
• Engine starts and quickly dies
• Difficult starting
• Engine stalls
• Rough idle
• Engine will not idle
• Hesitation during acceleration
• Poor throttle response
• Reduced engine power
• Engine surging
• Excessively rich operation
• Excessively lean operation
• Fuel leakage

Parts references specifically identify failure to start or starting and then quickly dying as symptoms that can be associated with a failed carburetor.

These symptoms are not exclusive to carburetor failure. Fuel-line, fuel-filter, ignition, compression, air-filter, spark-plug, or other engine problems can produce similar symptoms.

Fuel System Inspection

Before replacing the carburetor, inspect related components including:

• Fuel tank
• Fuel cap
• Fuel filter
• Fuel lines
• Primer bulb
• Air filter
• Intake components
• Carburetor mounting gasket
• Throttle linkage
• Choke linkage
• Spark plug
• Ignition system

Old, hardened, cracked, or leaking fuel lines should be replaced separately as necessary.

Old Fuel & Carburetor Deposits

Fuel left in small-engine equipment for extended periods can deteriorate and leave deposits inside the carburetor.

These deposits can restrict:

• Fuel passages
• Metering circuits
• Needle components
• Fuel inlet passages
• Internal screens

This can cause difficult starting, poor acceleration, unstable idle, or an engine that will not remain running.

Keeping the fuel system clean is important for prolonging carburetor service life. PartsTree specifically recommends keeping fuel free from dirt, debris, and water and avoiding prolonged storage of fuel in infrequently used equipment.

Carburetor Replacement vs. Repair

Depending on the condition of the original carburetor, service may involve either:

Carburetor Cleaning/Rebuilding

• Appropriate when the body remains serviceable
• May involve replacing diaphragms, gaskets, needle components, or other internal parts
• Requires careful cleaning of internal passages

Complete Carburetor Replacement

• Appropriate when the original carburetor is damaged
• Useful when corrosion or wear is extensive
• Can simplify repair when multiple internal components have deteriorated
• Restores the complete carburetor assembly rather than individual internal components

The 545006017 provides an OEM complete carburetor solution for equipment specifically requiring this part number.

Installation Considerations

Before removing the original carburetor:

• Shut off the engine.
• Allow the engine to cool.
• Disconnect the spark plug.
• Drain fuel where appropriate.
• Note the routing of all fuel lines.
• Photograph throttle and choke linkage positions if necessary.
• Clean debris from around the carburetor and air-filter housing.

During installation:

• Connect fuel lines to their correct ports.
• Reinstall throttle and choke linkages correctly.
• Inspect applicable intake gaskets.
• Position the carburetor correctly against the intake.
• Tighten mounting hardware according to the equipment manufacturer's procedure.
• Reinstall the air-filter assembly.
• Check the fuel system for leaks before operation.

Important Notes

• Verify compatibility with your exact equipment model, type number, and production revision before ordering.
• Match part number 545006017 directly with your equipment's illustrated parts diagram.
• The OEM description is “Kit Carb Assy C1U W32.”
• The carburetor designation is C1U-W32.
• This component is primarily documented for compatible string trimmers and pole saws.
• The carburetor is manufactured by Husqvarna and documented across compatible Husqvarna, Poulan, and Craftsman equipment.
• The carburetor uses a durable metal body.
• UPC for 545006017 is 705788574551.
• Do not select a replacement carburetor based solely on appearance.
• Similar-looking carburetors may use different internal calibration, fuel connections, linkage arrangements, or mounting configurations.
• Verify 545006017 / C1U-W32 against the exact equipment model.
• Do not assume that every Husqvarna trimmer uses this carburetor.
• Some retailers currently mark 545006017 as no longer available, while others still show remaining inventory, so availability may vary by supplier.
• Package descriptions vary: some sources identify it as a carburetor assembly, while another describes the kit as including the carburetor, mounting hardware, and gaskets. Verify current package contents if specific ancillary components are required.
• Do not assume fuel lines, fuel filters, primer bulbs, air filters, or unrelated fuel-system components are included unless explicitly specified.
• Inspect fuel lines whenever replacing the carburetor.
• Replace hardened, cracked, swollen, or leaking fuel lines separately.
• Inspect the fuel filter for contamination or restriction.
• Use fresh fuel of the type and mixture specified by the equipment manufacturer.
• Clean the mounting surfaces before installation.
• Replace damaged intake gaskets or seals where required.
• Route fuel lines away from hot or moving components.
• Make sure throttle and choke linkages operate freely after installation.
• Check all fuel connections for leakage before starting the engine.
• Never operate equipment with an active fuel leak.
• Perform carburetor adjustment only according to the applicable manufacturer's service procedure.
• Do not arbitrarily lean the fuel mixture, as excessively lean operation can contribute to engine overheating or damage.
• Work with gasoline only in a well-ventilated area away from flames, sparks, cigarettes, and other ignition sources.
• Allow the engine and muffler to cool before beginning fuel-system service.
• Disconnect the spark plug before performing carburetor replacement.
• This listing is for one Husqvarna 545006017 C1U-W32 Carburetor Assembly Kit unless otherwise specified.
• Match Husqvarna part number 545006017 with your equipment's illustrated parts diagram or OEM documentation before ordering to ensure proper fitment.
