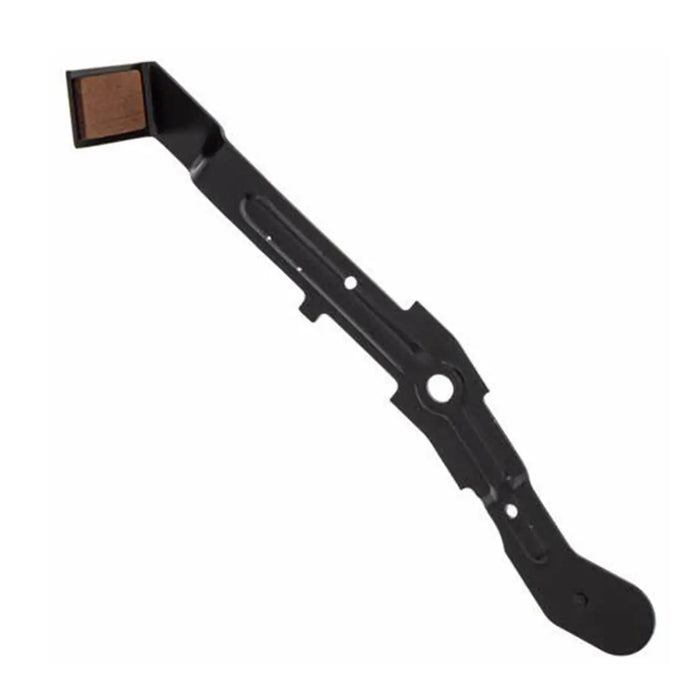

Husqvarna 531168401 Brake Arm Assembly Service Kit – Genuine OEM Replacement Brake Kit
Part Number: 531168401
Category: Lawn Tractor, Riding Mower & Brake System Components
Type: Brake Arm Assembly Service Kit – Genuine OEM Replacement Brake Kit
The Husqvarna 531168401 Brake Arm Assembly Service Kit is a genuine OEM replacement service kit designed for select Husqvarna lawn tractors, riding mowers, and compatible outdoor power equipment. This kit is intended to service or replace the applicable brake arm assembly, helping restore proper mechanical operation when the original brake components have become worn, bent, damaged, seized, or otherwise unserviceable.
Product Specifications
- Part Number: 531168401
- Manufacturer: Husqvarna
- Product Type: Brake Arm Assembly Service Kit
- OEM Description: Service Kit / Arm Brake Assembly
- Alternate Description: Brake Arm Kit / Brake Lever Assembly Kit / Brake Linkage Service Kit
- Component Type: Brake System Service Component
- Primary Application: Lawn Tractor / Riding Mower / Outdoor Power Equipment
- System: Brake / Drive System
- Function: Services or Replaces the Applicable Brake Arm Assembly
- Compatible Brand: Husqvarna
- Installation Location: Brake / Transmission Area – Model Dependent
- Associated Components: Brake Linkage / Brake Rod / Brake Pedal / Transmission Brake Components
- Replacement Type: OEM Service Kit
- OEM Status: Genuine Husqvarna OEM Part
- Condition: New
- Quantity: 1 Service Kit
- Part Number Reference: 531168401
- Alternate Number Format: 531 16 84-01
Features & Benefits
- Genuine Husqvarna OEM replacement service kit
- Designed for compatible Husqvarna equipment
- Services the applicable brake arm assembly
- Helps restore proper brake linkage movement
- Supports reliable brake engagement and release
- Designed around the original equipment brake-system geometry
- Application-specific OEM configuration
- Suitable for replacement of worn or damaged brake arm components
- Helps maintain the equipment's original braking configuration
- Appropriate for brake-system repairs and preventative servicing
- Eliminates the need to select an unspecified universal brake arm
- Direct service replacement for equipment specifying 531168401
Brake Arm Assembly Function
The brake arm is a mechanical component that helps transfer operator input through the equipment's braking system.
A typical mechanical mower brake arrangement may operate through:
Brake Pedal / Control → Brake Linkage → Brake Arm → Brake Mechanism
When the brake pedal or corresponding control is operated, movement is transferred through the linkage to the brake arm. The arm then acts on the applicable brake mechanism to help slow or hold the machine.
When the control is released, the linkage and associated return components allow the brake mechanism to return to its normal position.
The exact configuration varies by mower and transmission design.
Brake System Application
The 531168401 is a service component for the mower's brake system rather than a mower-deck blade brake.
Depending on the equipment configuration, the brake assembly can work with components such as:
- Brake pedal
- Brake rod
- Brake linkage
- Brake arm
- Return spring
- Pivot hardware
- Transmission brake mechanism
- Parking brake linkage
All related components should be inspected when servicing the brake system.
Service Kit Design
A service kit is intended to provide the applicable replacement component or components required for a specific repair.
The contents of service kits can change through manufacturer revisions. For this reason, the exact pieces included with 531168401 should be determined by the current package contents and applicable equipment documentation.
Do not assume that unrelated brake rods, pedals, springs, transmission components, or mounting hardware are included unless specifically stated.
Common Reasons for Replacement
Replacement of the 531168401 Brake Arm Assembly Service Kit may be appropriate if the existing brake assembly has:
- Become bent
- Developed excessive wear
- Become seized
- Developed excessive pivot play
- Sustained impact damage
- Developed corrosion
- Become difficult to move
- Developed worn attachment points
- Become misaligned
- Failed to properly engage the brake mechanism
- Failed to properly release
- Been damaged during transmission or linkage service
Because braking is a safety-related function, visibly damaged brake components should be corrected before returning the equipment to normal operation.
Possible Signs of Brake Arm Wear
A worn or damaged brake arm assembly may contribute to:
- Poor brake response
- Excessive brake-pedal travel
- Brake not fully engaging
- Brake not fully releasing
- Parking brake problems
- Increased stopping distance
- Brake dragging
- Stiff brake-pedal movement
- Loose brake linkage
- Inconsistent braking
- Visible linkage misalignment
- Abnormal movement around the brake assembly
These symptoms can also result from problems elsewhere in the braking or drive system.
Brake Linkage Inspection
Whenever installing 531168401, inspect the complete brake linkage.
Check for:
- Bent rods
- Loose connections
- Missing retaining hardware
- Excessive pivot wear
- Corrosion
- Binding
- Damaged springs
- Elongated mounting holes
- Incorrect linkage positioning
The brake system depends on coordinated movement between multiple components.
Replacing the brake arm may not correct a problem caused by a damaged rod, spring, pedal, or transmission brake mechanism.
Pivot Point Inspection
Brake arms commonly rotate around a pivot or mounting point.
Inspect the applicable pivot for:
- Excessive wear
- Binding
- Corrosion
- Dirt accumulation
- Bent hardware
- Loose fasteners
- Elongated mounting holes
- Cracks
A worn pivot can create excessive free movement and reduce the amount of brake-arm travel reaching the braking mechanism.
Return Spring Inspection
Where a return spring is used, inspect it for:
- Stretching
- Broken coils
- Corrosion
- Damaged hooks
- Loss of tension
- Incorrect attachment
The spring should allow the linkage to return correctly after the brake is released.
Do not substitute an arbitrary spring based solely on similar dimensions.
Brake Rod Inspection
Inspect the brake rod or connecting linkage for:
- Bending
- Worn ends
- Damaged threads
- Excessive play
- Missing retainers
- Corrosion
- Incorrect adjustment
A bent or incorrectly adjusted brake rod can alter brake-arm travel and prevent proper brake operation.
Transmission Brake Inspection
If the brake arm operates a transmission-mounted brake mechanism, inspect that assembly while the linkage is accessible.
Look for:
- Binding
- Excessive wear
- Damaged mounting points
- Loose hardware
- Contamination
- Improper adjustment
- Mechanical damage
A new brake arm cannot correct an internally damaged transmission brake.
Parking Brake Operation
On equipment where the service brake and parking brake share linkage components, verify both systems after completing the repair.
The parking brake should:
- Engage correctly
- Hold the equipment as intended
- Release fully
- Avoid binding the linkage after release
If the parking brake does not hold or release properly, inspect the entire control mechanism before operating the mower.
Brake Drag
Brake drag occurs when the brake remains partially engaged after the control is released.
Possible causes include:
- Binding brake arm
- Corroded pivot
- Damaged return spring
- Bent linkage
- Incorrect adjustment
- Brake mechanism damage
Brake drag can generate heat and accelerate wear.
The linkage should move freely throughout its intended operating range.
Installation Considerations
Before installing 531168401:
- Park the equipment on a flat, stable surface.
- Lower the mower deck where appropriate.
- Shut off the engine.
- Remove the ignition key.
- Allow all moving components to stop.
- Prevent the equipment from rolling.
- Disconnect the spark plug or battery as appropriate.
- Locate the brake arm assembly.
- Note the original linkage orientation.
- Photograph the assembly before disassembly if helpful.
- Carefully disconnect the applicable brake linkage.
- Remove the original brake arm components.
- Inspect the mounting and pivot points.
- Inspect the brake rod and return components.
- Install the 531168401 Brake Arm Assembly Service Kit according to the equipment's service configuration.
- Reconnect the linkage correctly.
- Verify free movement throughout the brake's operating range.
- Check brake adjustment where applicable.
- Verify complete brake engagement.
- Verify complete brake release.
- Test parking brake operation where equipped.
- Reinstall all guards or covers before normal operation.
Installation Tips
During installation:
- Note the original linkage arrangement before removing components
- Keep all pivot points and mounting surfaces clean
- Do not force bent linkage into the new brake arm
- Inspect retaining clips and hardware
- Make sure the brake arm moves freely
- Verify correct spring attachment
- Check linkage clearance throughout its full range
- Follow model-specific brake adjustment procedures
- Make sure the brake fully releases
- Test braking at low speed in a controlled area before normal use
Brake Adjustment
Some mower brake systems require adjustment after components are replaced.
An incorrectly adjusted brake system may:
- Engage too late
- Drag continuously
- Provide insufficient stopping force
- Prevent proper parking-brake operation
Always use the adjustment procedure specified for the exact equipment model and transmission configuration.
Do not compensate for worn or damaged components simply by over-adjusting the linkage.
Maintenance Tips
To help maintain proper brake operation:
- Inspect brake linkage periodically
- Keep pivot areas free of excessive debris
- Address corrosion before components seize
- Replace missing retainers promptly
- Investigate increased brake-pedal travel
- Check parking brake operation regularly
- Inspect springs and linkage during transmission service
- Correct brake drag promptly
- Replace bent or damaged components
- Keep the system adjusted according to equipment specifications
Important Notes
- Verify compatibility with your exact equipment model, product number, serial number, transmission, and production revision before ordering.
- Match part number 531168401 directly with the applicable OEM parts documentation.
- This product is a Brake Arm Assembly Service Kit for compatible equipment.
- It is intended for the equipment's mechanical braking system.
- Do not automatically confuse this component with a mower-deck blade brake arm.
- The exact installation location is model dependent.
- Service-kit contents may vary according to current manufacturer packaging or revisions.
- Do not assume brake rod, brake pedal, transmission, springs, or unrelated hardware are included unless specifically stated.
- Do not select a replacement brake component solely by visual similarity.
- Brake-arm geometry, mounting points, linkage connections, and operating travel must match.
- Use 531168401 as the primary fitment reference.
- Inspect all associated brake linkage during installation.
- Replace bent or severely worn rods and linkage components as necessary.
- Check pivot points for excessive play.
- Verify that all retaining hardware is securely installed.
- Confirm proper brake adjustment after completing the repair.
- Make sure the brake fully engages and fully releases.
- Verify parking brake operation where equipped.
- Do not operate equipment with a known brake-system malfunction.
- If braking remains inadequate after installation, inspect the complete braking and transmission system before returning the mower to service.
- Shut off the engine, remove the ignition key, and prevent accidental starting before servicing brake components.
- Prevent the mower from rolling while performing brake repairs.
- Securely support the equipment if it must be raised for service.
- Test repaired brakes at low speed in a controlled area before returning to normal operation.
- This listing is for one Husqvarna 531168401 Brake Arm Assembly Service Kit only unless otherwise specified. Brake rods, pedals, transmission components, springs, mounting hardware, and other brake-system parts are sold separately unless explicitly included.
- Match Husqvarna 531168401 with your equipment's OEM parts documentation before ordering to ensure proper fitment.
