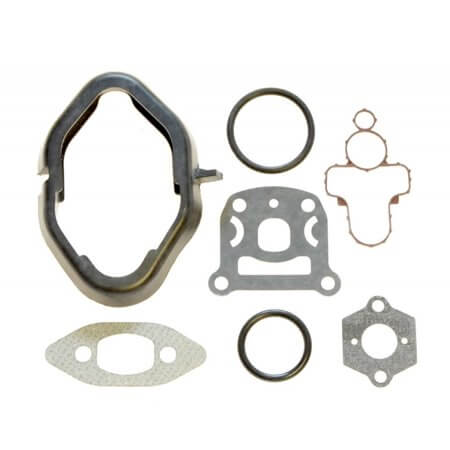

Husqvarna 530071894 Gasket Kit – Genuine OEM Replacement Engine Gasket Set
Part Number: 530071894
Category: Chainsaw, Trimmer & Small Engine Repair Components
Type: Gasket Kit – Genuine OEM Replacement Engine Gasket Set
The Husqvarna 530071894 Gasket Kit is a genuine OEM replacement gasket set designed for select Husqvarna handheld outdoor power equipment and small-engine applications. The factory description is commonly listed as “Kit Gasket SA” or gasket kit, and the kit provides application-specific sealing components used during engine repair and reassembly.
Product Specifications
- Part Number: 530071894
- Manufacturer: Husqvarna
- Product Type: Gasket Kit
- OEM Description: Kit Gasket SA / Gasket Kit
- Alternate Description: Engine Gasket Set / Engine Gasket Kit / Small Engine Gasket Set
- Component Type: Engine Sealing / Repair Components
- Primary Application: Handheld Outdoor Power Equipment / Small Engines
- System: Engine / Crankcase / Intake / Exhaust – Application Dependent
- Function: Provides Replacement Sealing Components for Applicable Engine Assemblies
- Installation Location: Multiple Engine Locations – Model Dependent
- Associated Components: Cylinder / Crankcase / Intake / Carburetor / Muffler / Engine Housing – Model Dependent
- Replacement Type: Genuine OEM Service Kit
- OEM Status: Genuine Husqvarna OEM Part
- Condition: New
- Quantity: 1 Gasket Kit
- Part Number Reference: 530071894
- Alternate Number Format: 530 07 18-94
Features & Benefits
- Genuine Husqvarna OEM replacement gasket kit
- Factory-designated engine gasket service kit
- Provides replacement sealing components for compatible equipment
- Designed for use during applicable engine repairs
- Helps restore sealing after engine disassembly
- Helps reduce leakage at applicable mating surfaces
- Supports proper engine assembly and operation
- Application-specific gasket shapes and dimensions
- Designed to match compatible OEM mating surfaces
- Useful for cylinder and crankcase-related repairs where applicable
- Suitable for replacing torn, compressed, brittle, or damaged gaskets
- Helps simplify repairs requiring multiple sealing components
- Direct OEM replacement kit for equipment specifying 530071894
Gasket Kit Function
The 530071894 provides sealing components used between applicable engine mating surfaces.
A simplified engine arrangement can be represented as:
Engine Component → Gasket / Seal → Mating Component → Sealed Assembly
When the engine is assembled, each applicable gasket is compressed between its corresponding surfaces to create the required seal.
Depending on the specific equipment application, these sealing points may be associated with areas such as:
- Cylinder
- Crankcase
- Intake system
- Carburetor mounting area
- Exhaust system
- Other engine interfaces
Exact kit contents and gasket locations should always be verified for the specific equipment model.
Why Engine Gaskets Matter
Small engines rely on correctly sealed mating surfaces for proper operation.
Gaskets can help:
- Prevent air leakage
- Prevent fuel-mixture leakage
- Prevent exhaust leakage
- Maintain crankcase sealing
- Separate adjoining engine components
- Maintain the designed airflow path
- Protect against contamination entry
The exact function depends on where each gasket is installed.
Two-Stroke Engine Sealing
Many Husqvarna handheld products use two-stroke engines where crankcase and intake sealing are particularly important.
A simplified operating path is:
Air/Fuel Mixture → Intake → Crankcase → Transfer System → Cylinder → Combustion
Unwanted air entering through a damaged gasket can alter the intended fuel-to-air mixture.
For this reason, sealing problems on applicable two-stroke engines should be addressed promptly.
Air Leaks & Engine Performance
A damaged gasket at an intake or crankcase-related location may potentially contribute to an unwanted air leak.
Depending on the location and severity, symptoms can include:
- Difficult starting
- Unstable idle
- High or hanging idle
- Poor acceleration
- Inconsistent engine performance
- Lean running condition
- Difficulty adjusting the carburetor
These symptoms can have many causes, so proper diagnosis is important before replacing components.
Exhaust Gasket Function
Where an exhaust gasket is included or applicable, its role is different from an intake or crankcase gasket.
An exhaust gasket helps seal the connection between the cylinder/exhaust outlet and applicable muffler components.
A failed exhaust seal may contribute to:
- Exhaust leakage
- Increased noise
- Carbon residue around the joint
- Loose muffler symptoms
Always identify each gasket before installation.
Intake Gasket Function
An intake-related gasket helps maintain the intended seal between applicable:
- Carburetor components
- Intake adapters
- Cylinder components
- Air-intake assemblies
A damaged intake gasket can allow air to enter where it was not intended.
Correct gasket positioning is important because some gaskets include openings or passages that must align with corresponding engine components.
Crankcase Sealing
Where applicable, crankcase gaskets help maintain the seal between engine crankcase sections or adjoining components.
This is particularly important in two-stroke engines because crankcase pressure changes are part of the engine's operating cycle.
A compromised crankcase seal can negatively affect engine operation even if there is no obvious external liquid leak.
Common Reasons for Gasket Kit Replacement
The 530071894 Gasket Kit may be required when:
- Rebuilding the engine
- Removing the cylinder
- Opening the crankcase
- Servicing applicable intake components
- Performing major engine repairs
- Replacing damaged sealing components
- Repairing an air leak
- Repairing an exhaust leak
- Reassembling previously separated engine components
Individual gaskets may require replacement if they have:
- Torn
- Cracked
- Split
- Hardened
- Become brittle
- Compressed excessively
- Delaminated
- Developed missing sections
- Adhered to the mating surface
- Been damaged during disassembly
Why Old Gaskets Should Be Inspected Carefully
Gaskets conform to mating surfaces when compressed during assembly.
After extended use, a gasket may become:
- Permanently compressed
- Brittle
- Heat affected
- Chemically deteriorated
- Bonded to the mating surfaces
A gasket that tears or deforms during disassembly should not be relied upon to reseal the repaired assembly.
Mating Surface Inspection
Before installing replacement gaskets, inspect all applicable mating surfaces for:
- Old gasket material
- Carbon buildup
- Scratches
- Gouges
- Corrosion
- Burrs
- Distortion
- Dirt
- Oil or fuel residue
A new gasket cannot reliably compensate for a severely damaged or warped mating surface.
Old Gasket Removal
When removing old gasket material:
- Work carefully
- Avoid gouging aluminum surfaces
- Keep debris away from internal engine passages
- Remove loose gasket fragments
- Clean mating surfaces appropriately
- Avoid damaging sealing faces
Aggressive scraping can create new sealing problems.
Gasket Orientation
Some engine gaskets are not symmetrical.
A gasket may contain:
- Fuel passages
- Air passages
- Pulse openings
- Bolt holes
- Transfer openings
- Exhaust openings
Installing a gasket backward or upside down can potentially block a required passage.
Compare each replacement gasket carefully with:
- The original component
- OEM parts documentation
- The mating surfaces
before final assembly.
Gasket vs. Seal
A gasket and shaft seal are not necessarily interchangeable components.
Gasket
Typically seals between stationary mating surfaces.
Shaft Seal
Typically seals around a rotating shaft such as a crankshaft.
If the engine has a crankshaft seal leak, replacing unrelated gaskets may not correct the problem.
Gasket vs. O-Ring
Some engines use both conventional gaskets and O-rings.
Gasket
Generally seals between broader mating surfaces.
O-Ring
Typically fits within a groove or specifically shaped sealing interface.
Use each sealing component only in its designated location.
Related Components to Inspect
When performing engine gasket service, inspect applicable:
- Cylinder
- Piston
- Piston rings
- Crankcase
- Crankshaft
- Crankshaft seals
- Bearings
- Intake components
- Carburetor mounting surfaces
- Muffler
- Fasteners
A gasket kit restores sealing components but does not correct mechanical damage to surrounding parts.
Cylinder Inspection
If the cylinder has been removed, inspect it for:
- Scoring
- Scratches
- Excessive wear
- Carbon buildup
- Damaged mounting surfaces
- Cracks
- Heat damage
Severe cylinder damage may require additional engine repair.
Piston Inspection
Inspect the piston for:
- Scoring
- Excessive wear
- Heat damage
- Carbon buildup
- Cracks
- Damaged ring grooves
If an air leak caused the engine to operate excessively lean, piston and cylinder inspection can be particularly important.
Crankshaft Seal Inspection
If engine symptoms suggest an air leak, inspect applicable crankshaft seals as well.
A failed crankshaft seal can sometimes produce symptoms similar to a damaged crankcase or intake gasket.
Installing new gaskets will not repair a separate shaft-seal failure.
Fastener Inspection
Inspect applicable engine fasteners for:
- Damaged threads
- Corrosion
- Bending
- Missing hardware
- Incorrect hardware
Proper and even clamping force is important for gasket sealing.
Installation Considerations
Before installing the 530071894 Gasket Kit:
- Shut off the equipment completely.
- Allow the engine and muffler to cool.
- Disconnect the spark plug.
- Drain or secure fuel as required.
- Clean the exterior of the engine before opening it.
- Photograph assemblies before disassembly if helpful.
- Remove the components required for the repair.
- Carefully remove the old gaskets.
- Prevent gasket debris from entering the engine.
- Clean the applicable mating surfaces.
- Inspect surfaces for scratches or distortion.
- Inspect surrounding engine components.
- Compare the replacement gaskets with the originals.
- Identify the correct location for each gasket.
- Verify all passages and bolt holes align.
- Position each gasket correctly.
- Reassemble the applicable engine components.
- Tighten fasteners evenly and according to model-specific specifications.
- Reinstall intake, exhaust, and engine components as required.
- Restore the fuel system.
- Reconnect the spark plug.
- Check for leaks.
- Test engine operation in a safe, controlled area.
Installation Tips
During installation:
- Keep the repair area clean
- Organize components during disassembly
- Photograph gasket orientation
- Remove old gasket material completely
- Avoid scratching aluminum mating surfaces
- Keep debris out of the crankcase and cylinder
- Verify every gasket opening aligns correctly
- Do not fold or tear replacement gaskets
- Tighten fasteners evenly
- Follow model-specific torque specifications
- Inspect crankshaft seals during major engine service
- Check for leaks after reassembly
Sealant Considerations
Do not automatically apply RTV, silicone, gasket maker, adhesive, or other sealant to every gasket in the 530071894 kit.
Some gasket locations are designed for dry installation, while other specific engine assemblies may require an OEM-specified sealing compound.
Excessive or incorrect sealant can:
- Block engine passages
- Enter the crankcase
- Affect gasket compression
- Create future service problems
Follow the equipment-specific service procedure for each sealing location.
Diagnosing a Suspected Air Leak
If the gasket kit is being installed to correct a suspected engine air leak, inspect the complete sealing system rather than assuming one gasket is responsible.
Potential leak points can include:
- Intake gaskets
- Intake adapters
- Carburetor connections
- Crankcase joints
- Crankshaft seals
- Cylinder mounting surfaces
A complete diagnosis can help prevent repeated disassembly.
Why Correct Gasket Fitment Matters
Engine gaskets that appear similar can differ in:
- Thickness
- Outer dimensions
- Bolt-hole pattern
- Passage locations
- Port openings
- Material
- Equipment application
Even a small difference can interfere with proper engine sealing or block an important passage.
Use 530071894 as the primary kit reference and verify compatibility before installation.
Maintenance Tips
To help maintain reliable engine sealing:
- Inspect for fuel or oil residue during maintenance
- Investigate unexplained high idle or lean-running symptoms
- Check intake components for looseness
- Inspect muffler mounting hardware
- Keep engine fasteners properly secured
- Replace damaged gaskets during repairs
- Keep mating surfaces clean during service
- Avoid reusing badly compressed or torn gaskets
- Inspect seals during major engine repairs
- Follow model-specific service procedures
Important Notes
- Verify compatibility with your exact Husqvarna equipment model, product number, engine configuration, serial number, and production revision before ordering.
- Match part number 530071894 directly with the applicable OEM parts documentation.
- 530071894 is a genuine OEM Gasket Kit / Engine Gasket Set.
- This kit contains sealing components intended for applicable engine repair applications.
- Exact kit contents can vary by application and should be verified against current OEM parts information before ordering.
- Do not assume every gasket discussed above is necessarily included in every package or used at every location on your equipment.
- Individual gasket functions and installation locations depend on the specific engine configuration.
- Do not assume every Husqvarna handheld engine uses 530071894.
- Do not select an engine gasket kit solely by approximate gasket shape or engine displacement.
- Gasket thickness, openings, passages, mounting pattern, material, and equipment compatibility must match.
- Use 530071894 as the primary fitment reference.
- Inspect engine mating surfaces whenever replacing gaskets.
- Inspect related crankshaft seals when diagnosing a suspected two-stroke engine air leak.
- Remove old gasket material carefully without damaging the sealing surfaces.
- Make sure all ports and passages remain unobstructed during installation.
- Do not cut, drill, stack, trim, or otherwise modify replacement gaskets to force fitment.
- Do not automatically apply additional gasket maker or sealant unless specified by the applicable service procedure.
- Shut off the engine, allow it to cool, disconnect the spark plug, and prevent accidental starting before engine service.
- This listing is for one Husqvarna 530071894 Gasket Kit only unless otherwise specified. Cylinder, piston, crankshaft seals, bearings, carburetor, muffler, fasteners, and other engine components are sold separately unless explicitly included.
- Match Husqvarna 530071894 with your equipment's OEM parts documentation before ordering to ensure proper fitment.
