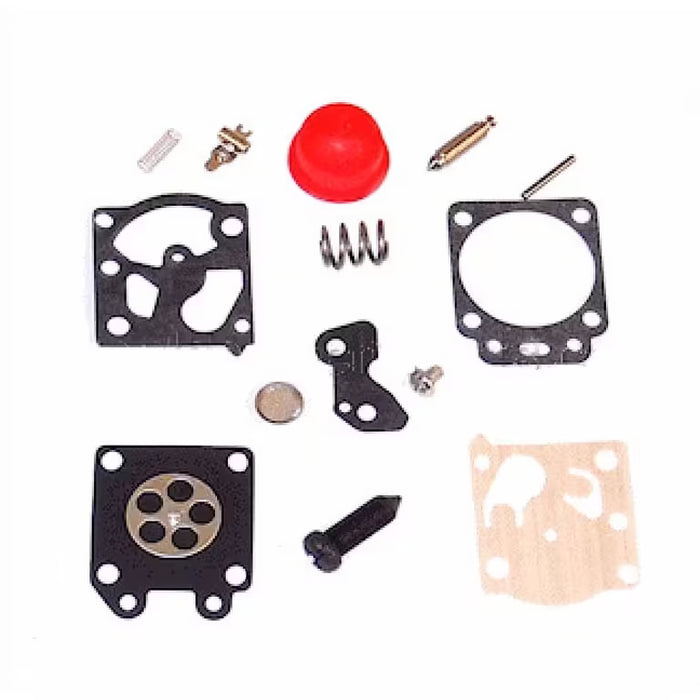

Husqvarna 530069841 Carburetor Repair Kit – Genuine OEM Replacement Carburetor Kit
Part Number: 530069841
Category: Trimmer Engine, Carburetor & Fuel System Components
Type: WA224 Carburetor Repair Kit – Genuine OEM Replacement Carburetor Kit
The Husqvarna 530069841 Carburetor Repair Kit is a genuine OEM carburetor service kit designed for select Weed Eater, Poulan, Husqvarna-family, and compatible gas-powered trimmers equipped with the applicable Walbro WA224 carburetor. OEM parts diagrams identify 530069841 specifically as the Carburetor Repair Kit for the WA224 carburetor.
Product Specifications
- Part Number: 530069841
- Manufacturer: Husqvarna / Poulan
- Product Type: Carburetor Repair Kit
- OEM Description: Kit – Carburetor Repair
- Alternate Description: Carb Repair Kit / Carburetor Rebuild Kit
- Carburetor Application: Walbro WA224
- Component Type: Engine Fuel-System Service Kit
- Primary Application: Gas String Trimmer
- System: Carburetor / Fuel Metering System
- Compatible Brands: Husqvarna-Family / Poulan / Weed Eater
- Additional Applications: Select AYP / Craftsman / Jonsered / McCulloch / Poulan Pro / RedMax Equipment
- Installation Location: Engine Carburetor
- Associated Components: Carburetor / Gaskets / Diaphragms / Fuel Metering Components
- Replacement Type: OEM Carburetor Repair Kit
- OEM Status: Genuine OEM Replacement Part
- Condition: New
- Quantity: 1 Carburetor Repair Kit
- Part Number Reference: 530069841
- Alternate Number Format: 530 06 98-41
- UPC: 193028543397
A Husqvarna parts listing identifies UPC 193028543397 for 530069841.
Features & Benefits
- Genuine OEM carburetor repair kit
- Designed specifically for compatible carburetor applications
- Documented for Walbro WA224 carburetors
- Provides service components used during carburetor rebuilding
- Helps restore proper fuel-metering operation when worn carburetor components are the cause
- Suitable for repairing aging or deteriorated carburetor components
- Helps address fuel-delivery problems caused by serviceable internal components
- Application-specific replacement parts
- Useful for preventative carburetor servicing and engine repair
- Designed for compatible two-cycle trimmer engines
- Maintains the original carburetor configuration
- Direct replacement for equipment specifying 530069841
- Genuine OEM kit rather than an unspecified universal carburetor rebuild kit
WA224 Carburetor Application
A key fitment detail for 530069841 is its documented use with the:
Walbro WA224 Carburetor
PartsTree identifies the kit directly as:
530069841 – Carburetor Repair Kit WA224.
An illustrated Featherlite Plus parts list likewise identifies:
- 530069839 – Carburetor Repair Kit – WA223
- 530069841 – Carburetor Repair Kit – WA224
- 530069842 – Carburetor Repair Kit – WA226
This makes the exact carburetor model important when selecting the correct repair kit.
Carburetor Repair Kit Function
A small-engine carburetor meters the proper amount of fuel and air supplied to the engine.
Over time, internal carburetor components can:
- Harden
- Crack
- Wear
- Become contaminated
- Lose flexibility
- Develop fuel deposits
- Become damaged during carburetor cleaning
The 530069841 Repair Kit provides service components intended to replace applicable wear items when rebuilding the compatible carburetor.
Repair Kit vs. Complete Carburetor
The 530069841 is a carburetor repair kit, not necessarily a complete assembled carburetor.
This distinction is important.
A repair kit is intended to service the existing carburetor by replacing specified internal components. It does not automatically include:
- Complete carburetor body
- Throttle assembly
- Choke assembly
- Fuel lines
- Primer bulb
- Air-filter assembly
- Intake manifold
- Complete replacement carburetor
The exact included pieces should be confirmed from the kit contents or OEM diagram.
Gasket & Diaphragm Kit vs. Repair Kit
The 530069841 Carburetor Repair Kit should also not be confused with 530069844, which is separately identified as the Gasket/Diaphragm Kit for WA223, WA224 and WA226 carburetors.
Therefore:
- 530069841 – WA224 Carburetor Repair Kit
- 530069844 – Gasket/Diaphragm Kit for WA223 / WA224 / WA226
Always order according to the specific components required for the repair.
Documented Equipment Applications
The 530069841 Carburetor Repair Kit is documented for select Weed Eater gas trimmers including:
- Weed Eater Featherlite
- Weed Eater Featherlite Plus
- Weed Eater XT200
- Weed Eater XT25
PartSelect documents these models as applications for 530069841.
Additional model types and production revisions may use the kit when equipped with the applicable carburetor.
Featherlite Application
Parts documentation for the Weed Eater Featherlite Type 1 specifically shows a:
Carburetor Assembly (WA224) – P/N 530069841
and identifies 530069841 within the diagram as the Carburetor Repair Kit WA224.
Featherlite Type 5 documentation also lists the WA224 configuration and the 530069841 Kit Carb Repair.
Because Featherlite models were produced in multiple types and carburetor configurations, verify the carburetor before ordering.
Compatible Brands
Authorized Husqvarna parts references state that 530069841 may fit specific equipment from Husqvarna-produced brands requiring this exact part number, including:
- Husqvarna
- AYP
- Craftsman
- Jonsered
- McCulloch
- Poulan
- Poulan Pro
- RedMax
- Weed Eater
Compatibility remains model- and carburetor-specific.
Common Reasons for Replacement
The 530069841 Carburetor Repair Kit may be useful when serviceable carburetor components have:
- Become hardened
- Cracked
- Become brittle
- Developed fuel deposits
- Become contaminated
- Lost flexibility
- Become worn
- Been damaged during carburetor cleaning
- Deteriorated after long-term storage
- Been affected by old or contaminated fuel
A rebuild kit should only be used when the carburetor body and other non-serviceable components remain suitable for reuse.
Possible Carburetor Symptoms
Carburetor servicing may be appropriate when compatible equipment exhibits symptoms such as:
- Difficult starting
- Engine will not start
- Poor idle
- Engine stalls
- Engine surges
- Hesitation during acceleration
- Engine runs inconsistently
- Poor throttle response
- Fuel-delivery problems
- Engine only runs with choke
- Fuel leakage from the carburetor
These symptoms are not exclusive to carburetor failure.
Before rebuilding the carburetor, also inspect the fuel lines, fuel filter, tank vent, spark plug, ignition system, air filter, primer system, and engine compression as appropriate.
Carburetor Inspection
When servicing the carburetor, inspect:
- Carburetor body
- Metering passages
- Fuel inlet
- Diaphragms
- Gaskets
- Needle components
- Adjustment components
- Primer system
- Throttle shaft
- Choke components
- Fuel lines
- Intake connections
A repair kit cannot correct a severely corroded, cracked, warped, or otherwise damaged carburetor body.
Installation Considerations
A typical carburetor rebuild involves:
- Shut off and cool the equipment.
- Disconnect the spark plug.
- Drain or safely contain the fuel.
- Remove the air-filter assembly as necessary.
- Disconnect the fuel lines.
- Disconnect throttle/choke linkages as required.
- Remove the carburetor.
- Note the orientation of all covers, gaskets, and diaphragms.
- Carefully disassemble the carburetor.
- Clean applicable carburetor passages.
- Install the correct components from 530069841.
- Reassemble the carburetor in the correct sequence.
- Reinstall the carburetor and fuel connections.
- Check carefully for fuel leakage.
- Verify proper engine operation.
Carburetor components are small and precision-oriented, so careful assembly is important.
Important Notes
- Verify compatibility with your exact equipment model, type number, carburetor model, and production revision before ordering.
- Match part number 530069841 directly with the equipment's OEM parts diagram.
- 530069841 is specifically documented as a Carburetor Repair Kit.
- OEM diagrams specifically associate 530069841 with the WA224 carburetor.
- Do not confuse 530069841 with repair kits for WA223 or WA226 carburetors.
- Do not confuse this repair kit with 530069844, the separate gasket/diaphragm kit.
- This kit is intended to service the existing carburetor; it is not a complete replacement carburetor assembly.
- Exact kit contents should be verified against the product packaging or OEM diagram.
- Do not select a carburetor kit based solely on equipment brand or engine displacement.
- Similar trimmer models can use different carburetors depending on production type.
- Verify the carburetor identification before ordering whenever possible.
- Use 530069841 as the primary fitment reference.
- Some current parts sources identify 530069841 as no longer available from the manufacturer, although remaining genuine OEM inventory is still listed by other parts sellers.
- Do not reuse hardened, torn, or damaged carburetor gaskets or diaphragms when the service procedure calls for replacement.
- Keep dirt and debris out of carburetor passages during servicing.
- Avoid damaging precision fuel-metering passages.
- Note the original orientation and sequence of gaskets and diaphragms before disassembly.
- Inspect fuel lines for cracking or hardening while the carburetor is removed.
- Replace a contaminated fuel filter separately when necessary.
- Check the air filter before adjusting or diagnosing the carburetor.
- Do not make arbitrary carburetor adjustment changes without following the applicable service procedure.
- Incorrect carburetor adjustment can cause poor performance or an excessively lean fuel mixture.
- Use the correct fuel/oil mixture specified for the applicable two-cycle engine.
- Work in a well-ventilated area away from sparks, flames, and ignition sources when servicing gasoline-powered equipment.
- Check all fuel connections for leakage before starting the engine.
- This listing is for one Husqvarna 530069841 Carburetor Repair Kit only unless otherwise specified. Complete carburetor, fuel lines, primer bulb, air filter, intake components, and other fuel-system parts are sold separately unless explicitly included.
- Match Husqvarna 530069841 with the WA224 carburetor and your equipment's OEM parts documentation before ordering to ensure proper fitment.
