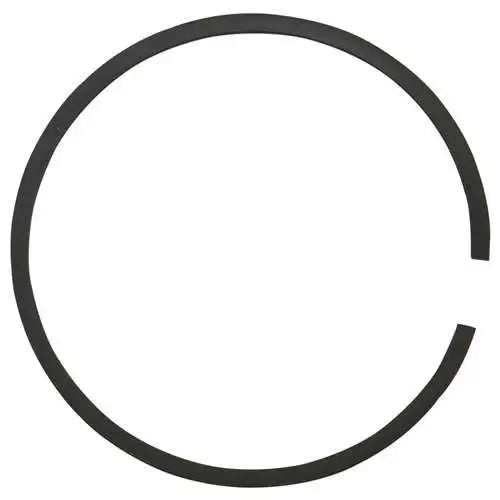

Husqvarna 530036176 Piston Ring – Genuine OEM Replacement Engine Piston Ring
Part Number: 530036176
Category: Chainsaw Engine, Cylinder & Piston Components
Type: Piston Ring – Genuine OEM Replacement Engine Piston Ring
The Husqvarna 530036176 Piston Ring is a genuine OEM replacement internal engine component designed for select Husqvarna-family chainsaws and other compatible two-cycle outdoor power equipment.
Product Specifications
- Part Number: 530036176
- Manufacturer: Husqvarna
- Product Type: Piston Ring
- OEM Description: Piston Ring / Ring-Piston
- Component Type: Internal Engine / Piston & Cylinder Component
- Function: Helps Seal the Piston Against the Cylinder Wall
- Primary Application: Chainsaw Engine
- Engine Type: Select Two-Cycle / Two-Stroke Engines
- Compatible Brand: Husqvarna
- Additional Applications: Select Poulan / Poulan Pro / Craftsman / AYP / Dixon / Jonsered / McCulloch / RedMax / Weed Eater Equipment
- Installation Location: Piston / Cylinder Assembly
- Associated Components: Piston / Cylinder / Connecting Rod / Piston Pin / Retainers / Crankshaft
- Approximate Outside Dimension: 52 mm
- Approximate Height: 2 mm
- Approximate Weight: 3 g
- Replacement Type: Direct OEM Replacement
- OEM Status: Genuine Husqvarna OEM Part
- Condition: New
- Quantity: 1 Piston Ring
- Part Number Reference: 530036176
- Alternate Number Format: 530 03 61-76
- EAN: 7391736043564
A Husqvarna-parts specialist lists 530036176 at approximately 52 mm × 52 mm × 2 mm and 3 g, with EAN 7391736043564.
Features & Benefits
- Genuine Husqvarna OEM replacement engine component
- Factory-designated Piston Ring
- Designed for compatible two-cycle engines
- Helps maintain proper cylinder compression
- Provides a seal between the piston and cylinder wall
- Helps control combustion-gas leakage
- Supports efficient combustion
- Helps maintain normal engine power output
- Designed to withstand repeated high-temperature engine cycles
- Works within the piston groove of compatible engines
- Suitable for chainsaw engine rebuilding and repair
- Used across select Husqvarna-family equipment
- Designed for application-specific fit
- Ideal replacement for worn, scored, broken, or damaged piston rings
- Direct replacement for engines specifying 530036176
- Genuine OEM component rather than an unspecified universal piston ring
Piston Ring Function
During engine operation, the piston moves rapidly up and down inside the cylinder.
The 530036176 Piston Ring fits into the applicable groove around the piston and maintains contact with the cylinder wall.
Its primary functions include:
- Maintaining engine compression
- Sealing the combustion chamber
- Limiting combustion gases escaping past the piston
- Supporting efficient transfer of combustion pressure to the piston
- Helping maintain normal engine performance
- Supporting proper piston operation within the cylinder
Because two-stroke engines rely heavily on proper cylinder sealing, piston-ring condition can have a substantial effect on starting and engine performance.
Engine Compression
Compression is created as the piston travels upward within the cylinder and compresses the air/fuel mixture.
A properly functioning piston ring helps prevent excessive pressure from escaping between the piston and cylinder wall.
If the ring becomes excessively worn or damaged, the engine may experience:
- Reduced compression
- Difficult starting
- Reduced power
- Poor acceleration
- Inconsistent combustion
- Difficulty remaining running
However, low compression can also result from cylinder wear, piston damage, cylinder scoring, gasket problems, or other internal engine issues.
Documented Chainsaw Applications
OEM illustrated parts lists document 530036176 on several Poulan-produced chainsaws.
For example, the Poulan 3600 Gas Saw internal power-unit parts list identifies:
530036176 – Piston Ring – 3500 & 3600
within the cylinder and piston assembly.
Another Poulan illustrated parts list identifies 530036176 for:
- Poulan 3750 Type 1
- Poulan 3750 Type 2
- Poulan 3450 Type 3
while other 3450 versions use a different piston ring.
This distinction is important because different production types of the same chainsaw model can use different internal engine components.
Compatible Equipment Brands
Husqvarna parts references indicate 530036176 can be used on specific models from Husqvarna-produced brands requiring this exact part number, including:
- Husqvarna
- AYP
- Craftsman
- Jonsered
- McCulloch
- Poulan
- Poulan Pro
- RedMax
- Weed Eater
An authorized Husqvarna parts dealer specifically cross-references these brands for 530036176.
Lawnmower Pros additionally cross-references the same piston ring under Poulan, AYP, Dixon, and Husqvarna part numbering.
Compatibility should always be determined using the exact model, type, and OEM illustrated parts list.
Piston & Cylinder Assembly
The piston ring works as part of the engine's internal reciprocating assembly, which can include:
- Cylinder
- Piston
- Piston ring
- Piston pin
- Piston-pin retainers
- Connecting rod
- Crankshaft
- Bearings
- Cylinder gasket
- Crankcase components
These components operate together at high speed and under significant heat and combustion pressure.
Damage to one component can therefore affect others in the assembly.
Common Reasons for Replacement
Replacement of the 530036176 Piston Ring may be appropriate if the original ring has:
- Broken
- Cracked
- Become excessively worn
- Lost sealing ability
- Become scored
- Become stuck in the piston groove
- Lost proper tension
- Sustained overheating damage
- Developed excessive carbon buildup
- Been damaged by cylinder scoring
- Been damaged during engine disassembly
- Become unsuitable for reuse during an engine rebuild
A broken piston ring should prompt careful inspection of the piston and cylinder before replacement.
Possible Signs of Piston Ring Wear
A worn or damaged piston ring may contribute to:
- Low engine compression
- Difficult starting
- Engine will not start
- Reduced engine power
- Poor acceleration
- Engine stalling
- Inconsistent engine operation
- Poor performance under load
- Excessive combustion blow-by
- Abnormal internal engine noise
- Reduced overall engine efficiency
These symptoms are not exclusive to piston-ring failure, so proper diagnosis is recommended before disassembling the engine.
Cylinder Inspection
Whenever replacing 530036176, carefully inspect the cylinder.
Look for:
- Vertical scoring
- Deep scratches
- Aluminum transfer
- Excessive wear
- Cracks
- Heat damage
- Damaged cylinder plating
- Abnormal discoloration
Installing a new piston ring into a severely damaged cylinder may result in poor compression or rapid failure of the replacement ring.
Piston Inspection
Inspect the piston for:
- Scoring
- Cracks
- Excessive skirt wear
- Damaged ring groove
- Carbon accumulation
- Heat damage
- Piston-pin wear
- Deformation
- Seizure marks
The piston-ring groove must be in serviceable condition so the replacement ring can move and seal as designed.
Ring Groove Inspection
The piston ring installs into a precision groove around the piston.
Before installation:
- Remove carbon deposits carefully
- Inspect the groove for damage
- Make sure the ring can seat correctly
- Check for excessive groove wear
- Inspect any locating feature used by the piston
- Confirm the ring is oriented correctly
Never force a piston ring into a damaged or incompatible groove.
Piston Ring Installation
Piston rings are relatively brittle precision engine components and should be handled carefully.
During installation:
- Confirm that 530036176 is correct for the exact engine.
- Clean the piston and ring groove.
- Inspect the cylinder and piston.
- Carefully expand the ring only enough to install it.
- Position the ring correctly in its piston groove.
- Align the ring according to the engine's locating arrangement.
- Lubricate internal components according to the applicable service procedure.
- Carefully compress the ring when inserting the piston into the cylinder.
- Avoid catching the ring on cylinder ports.
- Reassemble the engine according to the manufacturer's specifications.
Excessively spreading or twisting a piston ring can permanently deform or break it.
Two-Stroke Engine Considerations
Piston-ring installation in a two-stroke engine requires particular care because the cylinder contains intake, transfer, and exhaust ports.
Incorrect ring positioning can allow the ring end to encounter a cylinder port, potentially resulting in serious engine damage.
Always maintain the manufacturer-specified ring orientation and locating-pin relationship.
Related Components to Inspect
When replacing 530036176, inspect:
- Piston
- Cylinder
- Piston pin
- Piston-pin bearing
- Piston-pin retainers
- Connecting rod
- Crankshaft
- Crankshaft bearings
- Crankshaft seals
- Cylinder gasket
- Intake components
- Carburetor settings
- Air filter
- Fuel system
A lean fuel mixture, air leak, inadequate lubrication, or overheating can damage the piston and ring, so identifying the underlying cause of failure is important.
Important Notes
- Verify compatibility with your exact equipment model, model type, serial number, and production revision before ordering.
- Match part number 530036176 directly with the equipment's OEM illustrated parts list.
- The OEM description is “Piston Ring” / “Ring-Piston.”
- The part is documented as a genuine OEM piston ring for compatible chainsaw engines.
- 530036176 is specifically documented on certain Poulan 3500, 3600, 3450, and 3750 chainsaw configurations.
- Different production types of the same chainsaw model may use a different piston ring.
- Do not select a piston ring solely by approximate diameter.
- Piston rings can differ in diameter, thickness, profile, end configuration, material, locating arrangement, and engine application.
- Use 530036176 as the primary fitment reference.
- Approximate documented dimensions are 52 × 52 × 2 mm.
- Approximate documented weight is 3 g.
- EAN is 7391736043564.
- Some authorized parts sources currently identify 530036176 as no longer available/discontinued, although remaining inventory may still exist through other parts sellers.
- Inspect the cylinder before installing a replacement ring.
- Do not install a new ring into a severely scored or damaged cylinder without addressing the underlying damage.
- Inspect the piston ring groove for wear and carbon deposits.
- Never excessively stretch or twist the piston ring during installation.
- Make sure the ring is installed in the correct orientation.
- Ensure the ring end is correctly positioned relative to any locating pin.
- Use appropriate lubrication during assembly according to the service procedure.
- Avoid damaging the ring as the piston enters the cylinder.
- Verify correct cylinder and crankcase sealing during reassembly.
- Use the correct fuel/oil mixture specified for the applicable two-stroke engine.
- Incorrect fuel mixture or inadequate lubrication can result in piston, cylinder, and piston-ring damage.
- Diagnose overheating or lean-running conditions before returning a rebuilt engine to service.
- Internal engine repairs require careful assembly and correct torque specifications.
- This listing is for one Husqvarna 530036176 Piston Ring only unless otherwise specified. Piston, cylinder, piston pin, bearings, retainers, gaskets, and other engine components are sold separately unless explicitly included.
- Match Husqvarna 530036176 with the exact equipment model and OEM parts diagram before ordering to ensure proper fitment.
