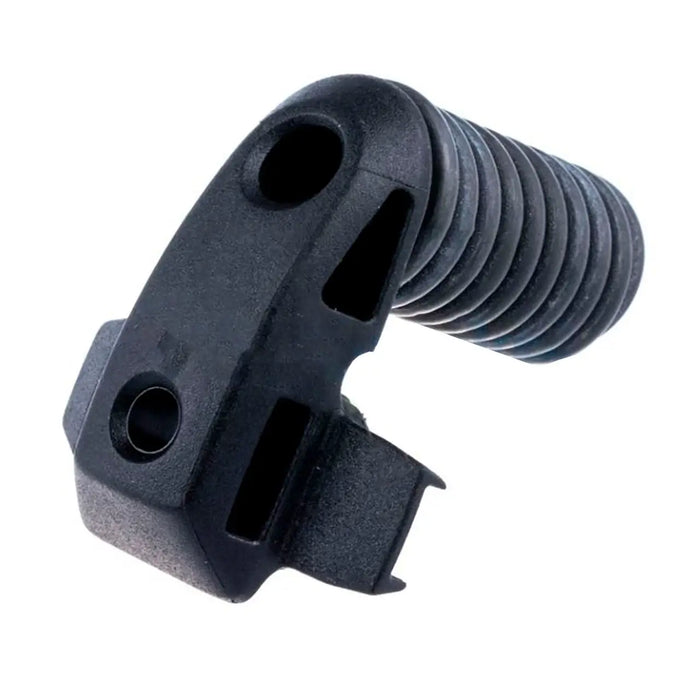

Husqvarna 522951508 Anti-Vibration Element Assembly – Genuine OEM Replacement Vibration Mount
Part Number: 522951508
Category: Chainsaw & Handheld Outdoor Power Equipment Components
Type: Anti-Vibration Element Assembly – Genuine OEM Replacement Vibration Mount
The Husqvarna 522951508 Anti-Vibration Element Assembly is a genuine OEM replacement vibration-isolation component designed for select Husqvarna chainsaws and compatible handheld outdoor power equipment. This component forms part of the equipment's anti-vibration system, helping isolate the handle assembly from vibration generated by the engine and cutting system during operation.
Product Specifications
- Part Number: 522951508
- Manufacturer: Husqvarna
- Product Type: Anti-Vibration Element Assembly
- Alternate Description: AV Element Assembly / Anti-Vibration Mount / Vibration Isolator / Vibration Damper
- Component Type: Anti-Vibration / Handle Isolation Component
- Primary Application: Chainsaw / Handheld Outdoor Power Equipment
- System: Anti-Vibration / Handle System
- Function: Helps Isolate Engine and Cutting-System Vibration from the Applicable Handle Assembly
- Installation Location: Between Applicable Chassis, Engine and Handle Components – Model Dependent
- Associated Components: Handle Assembly / Chassis / Engine Housing / AV Mounting Hardware
- Design: Flexible Vibration-Isolation Element
- Replacement Type: Direct OEM Replacement
- OEM Status: Genuine Husqvarna OEM Part
- Condition: New
- Quantity: 1 Anti-Vibration Element Assembly
- Part Number Reference: 522951508
- Alternate Number Format: 522 95 15-08
Features & Benefits
- Genuine Husqvarna OEM replacement component
- Designed for compatible Husqvarna equipment
- Forms part of the factory anti-vibration system
- Helps isolate handle components from engine vibration
- Helps reduce vibration transfer through the equipment structure
- Provides controlled movement between applicable assemblies
- Helps maintain the original handle-to-chassis relationship
- Supports proper anti-vibration system operation
- Application-specific mounting configuration
- Designed to match original equipment dimensions and geometry
- Suitable for replacing cracked, torn, hardened, or separated vibration mounts
- Helps restore the original vibration-isolation configuration
- Direct replacement for equipment specifying 522951508
- Sold individually
Anti-Vibration Element Function
The 522951508 helps separate vibration-producing components from the surfaces held by the operator.
A simplified arrangement can be represented as:
Engine / Cutting Assembly → 522951508 Anti-Vibration Element → Handle Assembly → Operator
During operation, the engine and cutting system generate vibration.
The anti-vibration element flexes within its designed range, reducing the amount of this movement that is transmitted directly into the handle assembly.
Why Chainsaws Use Anti-Vibration Systems
Chainsaws generate vibration from several sources, including:
- Engine combustion
- Crankshaft rotation
- Clutch operation
- Chain movement
- Cutting loads
- Contact between the chain and wood
Without vibration isolation, much of this movement could be transmitted directly through the chassis into the handles.
The anti-vibration system helps mechanically isolate these assemblies.
Vibration Isolation
The anti-vibration element acts as an intermediary between vibrating and operator-contact components.
Instead of creating a completely rigid connection:
Vibrating Assembly → Flexible AV Mount → Handle
the mount allows a controlled degree of movement.
This helps absorb and isolate vibration while still maintaining the structural relationship necessary for equipment operation.
Anti-Vibration Element vs. Solid Mount
A conventional solid mount creates a relatively rigid connection between components.
An anti-vibration element is specifically designed to provide controlled flexibility.
Solid Mount
Provides a rigid mechanical connection.
Anti-Vibration Element
Provides structural connection while allowing controlled movement to help isolate vibration.
For this reason, the 522951508 should not be replaced with improvised solid hardware.
Anti-Vibration Element vs. Handle
The 522951508 should also not be confused with the complete handle assembly.
Anti-Vibration Element
Provides the flexible isolation point between equipment structures.
Handle Assembly
Provides the operator's gripping and control structure.
A damaged handle may require separate replacement even if the AV element remains serviceable.
Multiple AV Elements
Depending on the equipment design, a chainsaw may use multiple anti-vibration elements at different mounting points.
Each element helps support and isolate the handle/chassis relationship.
If one AV mount has failed, inspect the other anti-vibration components for:
- Cracking
- Tearing
- Hardening
- Separation
- Excessive movement
- Loose mounting
Replacing one failed element while leaving another severely worn element in service may not fully restore the anti-vibration system.
Common Reasons for Replacement
Replacement of the 522951508 Anti-Vibration Element Assembly may be appropriate if the original has:
- Cracked
- Torn
- Split
- Hardened
- Become excessively soft
- Stretched
- Separated
- Become distorted
- Developed excessive movement
- Sustained impact damage
- Developed damaged mounting points
- Become loose
- Deteriorated with age
- Been damaged during equipment disassembly
Possible Signs of AV Mount Wear
A worn or damaged anti-vibration element may contribute to:
- Increased handle vibration
- Excessive movement between the handle and chassis
- Loose-feeling handle assembly
- Abnormal rattling
- Visible separation
- Handle misalignment
- Unusual movement during acceleration
- Increased component contact
- Damaged surrounding mounting points
These symptoms can also result from other anti-vibration mounts, loose hardware, damaged handles, or engine-related problems.
Visual Inspection
Inspect the existing 522951508 for:
- Cracks
- Tears
- Splitting
- Separation
- Distortion
- Hardening
- Missing material
- Damaged mounting points
- Excessive stretching
- Surface deterioration
Flexible vibration-isolation components should be replaced when structural deterioration compromises their ability to remain securely mounted.
Excessive Handle Movement
A failed anti-vibration mount can allow more movement than the equipment was designed to accommodate.
Excessive movement can potentially cause:
- Handle instability
- Component interference
- Hose or wire strain
- Increased loading on remaining AV mounts
- Contact between normally separated components
If the handle moves excessively relative to the engine/chassis assembly, inspect all AV mounting points.
Hardened Anti-Vibration Elements
Anti-vibration materials can change characteristics over time.
A mount that has become excessively hardened may remain physically intact but provide less vibration isolation than intended.
Possible contributing factors include:
- Age
- Heat exposure
- Fuel or chemical exposure
- Environmental conditions
- Long-term mechanical loading
Inspect both physical condition and flexibility where appropriate.
Torn or Separated Elements
A torn or separated vibration mount can no longer maintain the intended connection between assemblies.
Continued operation with a failed mount can place additional load on:
- Remaining AV elements
- Handle components
- Mounting hardware
- Fuel lines
- Control cables
- Wiring
Prompt replacement can help prevent secondary damage.
Handle Inspection
Whenever replacing 522951508, inspect the applicable handle components for:
- Cracks
- Distortion
- Loose mounting points
- Impact damage
- Excessive wear
- Damaged attachment areas
A damaged handle mounting point may prevent a new AV element from functioning correctly.
Chassis & Housing Inspection
Inspect the corresponding engine housing or chassis mounting area for:
- Cracks
- Damaged threads
- Distortion
- Missing material
- Loose mounting hardware
- Impact damage
The replacement element requires serviceable mounting points on both sides of the connection.
Other AV Mounts
If the equipment uses multiple vibration mounts, inspect each one.
A simplified multi-point arrangement may look like:
Front AV Element + Rear AV Element + Additional AV Element → Isolated Handle Assembly
If one element has deteriorated from age or operating conditions, others may be approaching similar wear.
Fuel Line & Control Inspection
Excessive movement caused by failed AV mounts can sometimes place additional strain on nearby flexible components.
During service, inspect applicable:
- Fuel lines
- Primer lines
- Throttle cables
- Control wiring
- Switch wiring
Look for abrasion, stretching, cracking, or unusual routing.
Why Correct AV Mount Fitment Matters
Anti-vibration elements that appear similar can differ in:
- Length
- Diameter
- Stiffness
- Material characteristics
- Mounting configuration
- Thread or fastener interface
- Orientation
- Equipment application
An incorrect mount may physically install but provide inappropriate movement or positioning.
For this reason, use 522951508 as the primary replacement reference.
Installation Considerations
Before replacing 522951508:
- Shut off the equipment completely.
- Engage the chain brake where applicable.
- Allow the engine and muffler to cool.
- Disconnect the spark plug.
- Drain or secure fuel if required by the repair procedure.
- Place the equipment on a stable work surface.
- Locate the applicable anti-vibration element.
- Note its orientation and mounting arrangement.
- Photograph the assembly before disassembly if helpful.
- Remove applicable covers or handle components for access.
- Support the handle and chassis assemblies as required.
- Remove the applicable mounting hardware.
- Carefully remove the damaged AV element.
- Inspect the handle mounting point.
- Inspect the chassis or housing mounting point.
- Inspect the remaining anti-vibration elements.
- Check nearby fuel lines, cables, and wiring.
- Clean the mounting surfaces.
- Compare the replacement 522951508 with the original.
- Position the new AV element correctly.
- Reinstall applicable mounting hardware.
- Restore the handle and chassis relationship.
- Verify that the element is correctly seated.
- Confirm nearby lines and controls are routed correctly.
- Check that the handle has controlled movement without abnormal looseness.
- Reinstall all covers and protective components.
- Reconnect the spark plug.
- Test equipment operation in a safe, controlled area.
Installation Tips
During installation:
- Photograph the original AV mount orientation
- Support the handle during disassembly
- Inspect all other vibration mounts
- Check mounting surfaces for cracks
- Keep hardware organized
- Route fuel lines and cables correctly
- Avoid twisting the replacement element
- Do not force the mount into an incorrect position
- Make sure mounting hardware is secure
- Verify controlled handle movement after installation
- Check for component interference
- Reinstall all covers before operation
Do Not Solid-Mount the Assembly
Do not replace a damaged 522951508 with:
- Solid spacers
- Improvised bolts
- Metal blocks
- Washers stacked as a substitute
- Adhesive-filled mounting points
- Other rigid hardware
Doing so can bypass the vibration-isolation function designed into the equipment.
Use the correct OEM anti-vibration component.
Why Complete AV System Inspection Matters
Anti-vibration systems operate as a group.
If one mount fails, the remaining mounts may be forced to carry additional movement and loading.
Whenever 522951508 requires replacement, inspect the complete system for:
- Failed mounts
- Loose hardware
- Damaged handles
- Cracked housings
- Excessive movement
- Component interference
This can help identify additional problems before the equipment returns to service.
Maintenance Tips
To help maintain the anti-vibration system:
- Inspect AV elements periodically
- Replace cracked or torn mounts
- Check handle movement
- Inspect mounting hardware
- Investigate increased vibration promptly
- Keep fuel and harsh chemicals away from vibration-isolation components where practical
- Inspect AV mounts after major impacts
- Check surrounding housings for cracks
- Inspect fuel lines and controls if excessive handle movement occurs
- Follow equipment-specific maintenance procedures
Important Notes
- Verify compatibility with your exact equipment model, product number, serial number, and production revision before ordering.
- Match part number 522951508 directly with the applicable OEM parts documentation.
- 522951508 is an Anti-Vibration Element Assembly / AV Element used in compatible Husqvarna equipment.
- The component forms part of the equipment's vibration-isolation system.
- It helps reduce the transfer of engine and cutting-system vibration into the applicable handle assembly.
- The exact installation position and associated mounting components depend on the equipment model.
- Do not assume every Husqvarna chainsaw or handheld product uses 522951508.
- Do not select a replacement anti-vibration element solely by approximate dimensions or appearance.
- Size, stiffness, mounting configuration, orientation, and equipment compatibility must match.
- Use 522951508 as the primary fitment reference.
- Inspect all other anti-vibration elements whenever one mount has failed.
- Inspect the handle and chassis mounting points for cracks or damage.
- Check nearby fuel lines, cables, and wiring if the failed mount allowed excessive movement.
- Do not substitute solid hardware for an anti-vibration element.
- Do not cut, drill, grind, glue, heat, reshape, or otherwise modify the replacement mount to force fitment.
- Shut off the engine, engage the chain brake where applicable, allow the equipment to cool, and disconnect the spark plug before service.
- Verify that the handle remains securely attached and that movement is controlled after installation.
- Reinstall all applicable covers and protective components before operating the equipment.
- This listing is for one Husqvarna 522951508 Anti-Vibration Element Assembly only unless otherwise specified. Handles, housings, additional AV elements, fasteners, fuel lines, control cables, and other associated components are sold separately unless explicitly included.
- Match Husqvarna 522951508 with your equipment's OEM parts documentation before ordering to ensure proper fitment.
