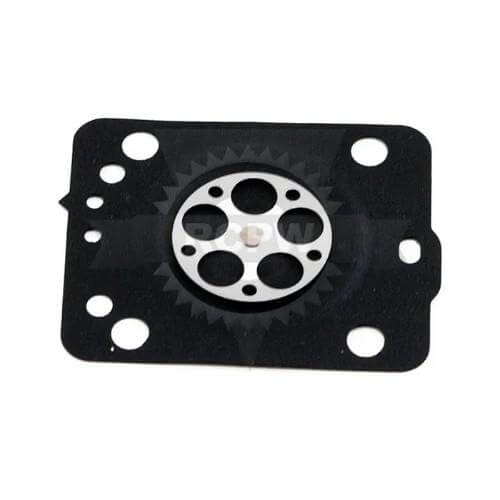

Husqvarna 504024501 Diaphragm – Replacement Lawn & Garden Equipment Engine Part

Part Number: 504024501
Category: Lawn & Garden Equipment Replacement Parts
Type: Diaphragm – Replacement Lawn & Garden Equipment Engine Part

The Husqvarna 504024501 Diaphragm is a replacement engine component designed for compatible Husqvarna lawn and garden equipment. This diaphragm is intended for use within the applicable engine or fuel system assembly, where its flexible construction supports the movement and regulation required by the associated mechanism. Ideal for replacing a hardened, cracked, stretched, torn, deteriorated, damaged, or failed diaphragm, the 504024501 helps restore proper system function and dependable engine operation.

Product Specifications

• Part Number: 504024501
• Brand: Husqvarna
• Product Type: Diaphragm
• Component Type: Replacement Engine / Fuel System Component
• Application: Lawn & Garden Equipment
• System: Engine / Fuel System
• Condition: New

Features & Benefits

• Replacement diaphragm for compatible Husqvarna equipment
• Designed for use within the applicable engine or fuel system assembly
• Flexible construction supports the required movement of the associated mechanism
• Helps maintain proper operation of the applicable engine system
• Helps restore system function when the original diaphragm becomes worn or deteriorated
• Ideal for replacing hardened, cracked, stretched, torn, damaged, or failed diaphragms
• Suitable for applicable engine and fuel system servicing or rebuilding
• Practical replacement component for routine equipment maintenance and repair

Applications

• Husqvarna lawn and garden equipment
• Compatible outdoor power equipment
• Small engine assemblies
• Applicable fuel system components
• Diaphragm-equipped engine mechanisms
• Engine and fuel system repair
• Replacement of worn or damaged diaphragms
• Routine equipment maintenance and servicing

Important Notes

• Verify part number 504024501 before ordering
• Confirm compatibility with your specific Husqvarna equipment, engine, and applicable assembly
• Compare the existing diaphragm dimensions, shape, hole pattern, sealing surfaces, and installation configuration before replacement
• Inspect associated gaskets, covers, fuel passages, mating surfaces, and surrounding components for contamination, wear, or damage
• Verify whether any gaskets, seals, hardware, or additional components are included or must be purchased separately
• Ensure all mating surfaces are clean before installation
• Install the diaphragm in the correct orientation and avoid folding, pinching, stretching, or otherwise damaging it during assembly
