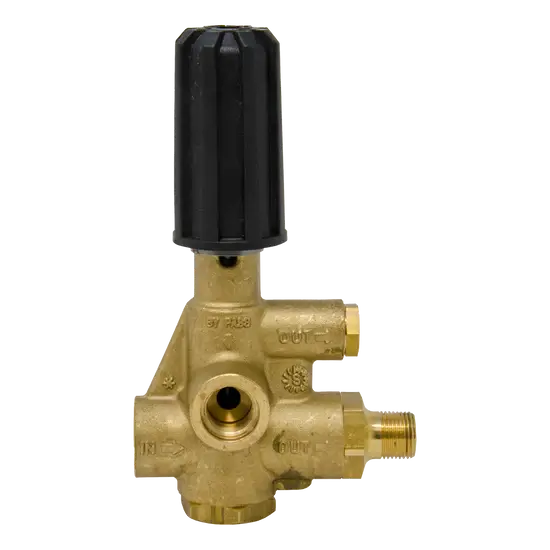

HM Pressure Washer Unloader Valve 10.8 GPM 3000 PSI – OEM Replacement Part
Part Number: 2169
Category: Pressure Washer Parts → Unloader Valves → Easy Start Unloader Valves
Type: HM Pressure Washer Unloader Valve
The HM Pressure Washer Unloader Valve (Part #2169) is a heavy-duty OEM replacement pressure-actuated unloader designed for commercial and industrial pressure washer systems operating up to 10.8 GPM and 3,000 PSI. Engineered with a built-in Easy Start Valve, this unloader is especially well-suited for pressure washers powered by gasoline engines, helping reduce starting resistance by eliminating back pressure during engine startup.
Key Features & Benefits
- OEM replacement pressure washer unloader valve
- Built-in Easy Start Valve
- Rated for up to 10.8 GPM
- Maximum pressure rating of 3,000 PSI
- Helps eliminate back pressure during engine startup
- Ideal for gasoline engine-driven pressure washers
- Durable brass and stainless steel construction
- Adjustable pressure control knob
- Reliable pressure-actuated bypass operation
- Protects pumps, hoses, and spray guns
- Commercial and industrial-duty performance
- Long service life
Technical Specifications
Part Number: 2169
Product Type: Pressure Washer Unloader Valve
Maximum Flow Rate: 10.8 GPM
Maximum Pressure: 3,000 PSI
Maximum Temperature: 165°F
Inlet Connection: 3/8" FPT
Outlet Connections:
- 3/8" MPT
- 1/4" FPT
Bypass Connections: Dual 3/8" FPT
Construction: Brass & Stainless Steel
Pressure Adjustment: Adjustable Control Knob
Easy Start Valve: Built-In
Mounting Position: Vertical (recommended)
Dimensions: 2.75" x 3.75" x 6.50"
Weight: 2.5 lbs.
OEM Replacement: Yes
Built-In Easy Start Technology
The integrated Easy Start Valve helps:
- Eliminate back pressure during startup
- Reduce recoil starter resistance
- Improve engine starting performance
- Reduce strain on pull-start systems
- Extend equipment lifespan
- Improve operator convenience
This feature is particularly beneficial on gasoline-powered pressure washer systems where startup pressure can make engines difficult to pull-start.
Durable Construction
Designed for demanding operating conditions, the HM Unloader features:
- Brass valve body construction
- Stainless steel internal components
- Corrosion-resistant materials
- Durable adjustment knob
- Heavy-duty commercial-grade design
These materials provide long-lasting reliability in professional cleaning environments.
What an Unloader Valve Does
The HM Unloader automatically:
- Regulates operating pressure
- Diverts water flow during bypass operation
- Protects pumps from pressure spikes
- Reduces wear on hoses and fittings
- Improves system safety
- Extends equipment service life
When the trigger gun is released, water is redirected through the bypass circuit until cleaning resumes.
Common Applications
Gasoline Engine Pressure Washers
Ideal for:
- Belt-drive pressure washers
- Direct-drive pressure washers
- Commercial cleaning rigs
- Contractor equipment
- Mobile pressure washing systems
Commercial Cleaning Equipment
Suitable for:
- Fleet washing
- Agricultural cleaning
- Property maintenance
- Equipment wash-down stations
- Industrial cleaning applications
Performance Benefits
- Easier engine starting
- Reliable pressure regulation
- Improved pump protection
- Reduced pressure spikes
- Consistent cleaning performance
- Long service life
- Reduced maintenance requirements
- Commercial-duty durability
Installation Notes
- Install in the vertical position whenever possible.
- If mounted in another position, the optional spring must be used.
- Verify compatibility with system pressure and flow requirements.
- Apply thread sealant to threaded connections.
- Adjust operating pressure according to equipment specifications.
- Test bypass operation and startup performance after installation.
Important: Ensure all system components are rated for the intended operating pressure and flow requirements.
Maintenance Recommendations
- Inspect regularly for leaks and wear.
- Verify pressure settings during service intervals.
- Keep bypass circuits functioning properly.
- Maintain clean inlet water filtration.
- Replace worn seals and internal components as necessary.
- Monitor startup performance and bypass operation.
