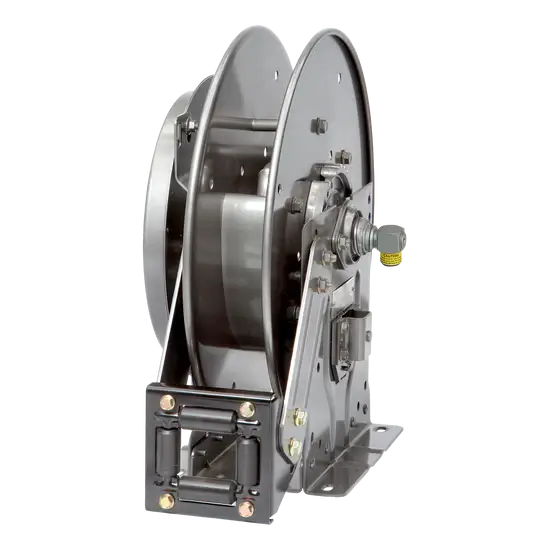

Hannay Spring Rewind Hose Reel – 3/8" x 100' 3000 PSI Pressure Washer Hose Reel with TR Roller Position
Part Number: 6655
Category: Pressure Washer Parts → Hose Reels
Type: Hannay Spring Rewind Hose Reel – 3/8" x 100' 3000 PSI Pressure Washer Hose Reel with TR Roller Position
The Hannay Spring Rewind Hose Reel (Part #6655) is a genuine Hannay Reels heavy-duty hose reel engineered for professional pressure washing, industrial cleaning, commercial wash bays, fleet maintenance, agricultural operations, and equipment service applications. Designed to accommodate up to 100 feet of 3/8-inch pressure washer hose, this spring-powered rewind reel provides smooth hose deployment and automatic retraction, helping reduce operator fatigue while improving jobsite safety and efficiency.
Key Features & Benefits
- Genuine Hannay Reels spring rewind hose reel
- Part Number: 6655
- Manufactured by Hannay Reels
- Holds up to 100 ft. of 3/8" pressure washer hose
- Automatic spring-powered hose rewind
- Rated for systems up to 3,000 PSI
- Maximum operating temperature: 225°F
- Heavy-duty steel construction
- TR (Top Right) roller guide position
- 1/2" FNPT inlet connection
- 1/2" FNPT outlet connection
- Helps reduce hose wear during operation
- Improves jobsite organization and safety
- Designed for professional commercial use
Technical Specifications
Part Number: 6655
Manufacturer: Hannay Reels
Product Type: Spring Rewind Pressure Washer Hose Reel
Rewind Type: Spring Rewind
Roller Position: TR (Top Right)
Hose Capacity: 3/8" × 100'
Maximum Working Pressure: 3,000 PSI
Maximum Temperature: 225°F
Inlet Connection: 1/2" FNPT
Outlet Connection: 1/2" FNPT
Construction: Heavy-Duty Steel
Weight: 131 lbs
OEM Replacement: Yes
Compatible Applications
Suitable for use with:
- Commercial pressure washers
- Industrial pressure washing systems
- Hot and cold water pressure washers
- Mobile pressure washing trailers
- Pressure washing trucks
- Fleet washing equipment
- Agricultural cleaning equipment
- Heavy equipment cleaning
- Industrial wash bays
- Manufacturing facilities
- Municipal maintenance equipment
- Professional cleaning contractors
Always verify hose size, hose length, mounting space, pressure rating, temperature rating, and connection compatibility before ordering.
Function of the Hose Reel
The Hannay 6655 Spring Rewind Hose Reel helps:
- Store up to 100 feet of 3/8-inch pressure washer hose
- Automatically rewind hose using a spring-powered mechanism
- Reduce hose tangles and workplace hazards
- Improve hose organization and storage
- Protect hoses from unnecessary wear and abrasion
- Increase efficiency during pressure washing operations
Its TR roller guide helps maintain proper hose alignment during extension and retraction, extending hose life while providing smooth reel operation.
Common Signs Replacement Is Needed
Replace or service the hose reel if you notice:
- Weak or failed spring rewind
- Damaged or worn swivel assembly
- Bent frame or drum
- Roller guide damage
- Corrosion affecting operation
- Hose binding during rewind
- Excessive bearing or spindle wear
Routine inspection and maintenance help maximize hose reel performance and service life.
Installation & Service Notes
Mount the hose reel securely to a stable surface capable of supporting the reel, hose, and operating loads.
Connect the 1/2" FNPT inlet and outlet fittings using compatible high-pressure plumbing components.
Verify all fittings are tightened properly before pressurizing the system.
Position the TR roller guide to provide the straightest possible hose path during operation.
Important: Never exceed the maximum 3,000 PSI working pressure or 225°F maximum operating temperature. Always inspect hoses, fittings, swivel joints, and mounting hardware before operating the pressure washer system.
Maintenance Recommendations
- Inspect the spring rewind mechanism regularly for smooth operation.
- Lubricate moving components according to Hannay Reels maintenance recommendations.
- Check swivel seals and fittings for leaks or wear.
- Inspect the roller guide for proper alignment and free rotation.
- Tighten mounting hardware periodically.
- Store the reel in a clean, dry environment when not in service.
- Use only genuine OEM Hannay Reels replacement parts to maintain proper operation, reliability, and long-term performance.
