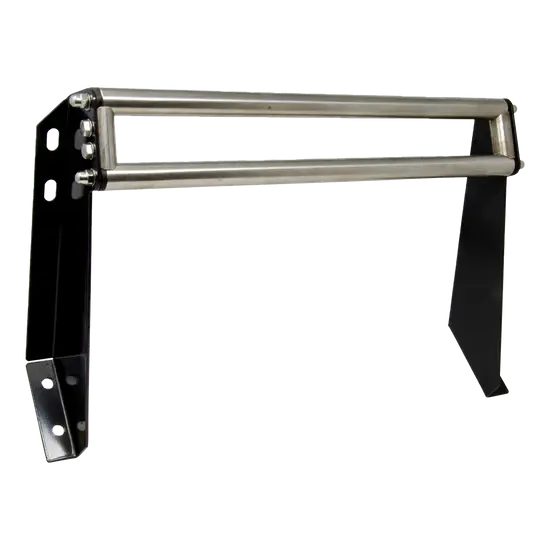

GP 2100503 A-Frame Hose Reel Guide – Fits 450' Capacity Hose Reels
Part Number: 7062
Category: Pressure Washer Parts → Hose Reel Accessories
Type: GP 2100503 A-Frame Hose Reel Guide – Fits 450' Capacity Hose Reels
The GP 2100503 A-Frame Hose Reel Guide (Part #7062) is a genuine General Pump hose reel accessory designed for 450-foot capacity A-frame hose reels. Engineered to protect pressure washer hoses during deployment and retrieval, this heavy-duty guide assembly minimizes hose abrasion and wear when the hose is pulled from various angles, helping extend hose service life in demanding commercial and industrial environments.
Key Features & Benefits
- Genuine General Pump OEM hose reel guide assembly
- Part Number: 7062
- Manufacturer Model: 2100503
- Fits 450' capacity General Pump A-frame hose reels
- Four-way enclosed hose guide design
- Pinch-proof stainless steel guide rollers
- Protects hose from abrasion and excessive wear
- Allows smooth hose payout and rewind from multiple angles
- Corrosion-resistant stainless steel hardware
- Heavy-duty construction for commercial use
- Helps reduce hose damage and maintenance costs
- Direct OEM replacement component
Technical Specifications
Part Number: 7062
Manufacturer: General Pump
Manufacturer Model: 2100503
Alternate Model: 2100503 Hose Reel Guide 450' A Frame
Product Type: Hose Reel Guide Assembly
Compatible Reel Style: A-Frame
Compatible Reel Capacity: 450'
Guide Configuration: Four-Way Enclosed Roller Guide
Roller Material: Stainless Steel
Hardware Material: Corrosion-Resistant Stainless Steel
OEM Replacement: Yes
Compatible Applications
Suitable for use with:
- General Pump A-frame hose reels
- 450' capacity hose reels
- Commercial pressure washers
- Industrial pressure washing systems
- Hot and cold water pressure washers
- Mobile pressure washing trailers
- Pressure washing trucks
- Fleet washing equipment
- Industrial wash bays
- Agricultural cleaning equipment
- Heavy equipment cleaning systems
Always verify hose reel model, mounting dimensions, and guide compatibility before ordering.
Function of the Hose Reel Guide
The General Pump 2100503 Hose Reel Guide helps:
- Protect hoses from abrasion during use
- Guide the hose smoothly onto the reel
- Allow hose payout and retrieval from multiple pulling angles
- Reduce hose kinking and binding
- Extend hose service life
- Improve overall hose reel performance and efficiency
Its enclosed four-way roller design keeps the hose properly aligned while minimizing friction during operation.
Common Signs Replacement Is Needed
Replace the hose reel guide if you notice:
- Worn or damaged guide rollers
- Excessive hose abrasion
- Bent or damaged guide frame
- Corroded mounting hardware
- Rollers that no longer rotate freely
- Hose binding during payout or rewind
Replacing a worn guide assembly helps protect expensive pressure washer hoses and restores smooth reel operation.
Installation & Service Notes
Turn off the pressure washer and secure the hose reel before installation.
Remove the existing guide assembly and install the General Pump 2100503 Hose Reel Guide using the appropriate mounting hardware.
Verify all hardware is tightened securely and confirm the guide rollers rotate freely before placing the reel into service.
Inspect hose alignment during operation to ensure smooth payout and rewind.
Important: Always verify compatibility with your 450' capacity General Pump A-frame hose reel before ordering.
Maintenance Recommendations
- Inspect guide rollers regularly for smooth rotation.
- Clean dirt, sand, and debris from the roller assembly.
- Inspect stainless steel hardware for looseness or damage.
- Tighten mounting hardware periodically.
- Replace worn rollers or damaged components promptly to prevent hose damage.
- Use only genuine OEM General Pump replacement parts to maintain proper hose guidance, durability, and long-term performance.
