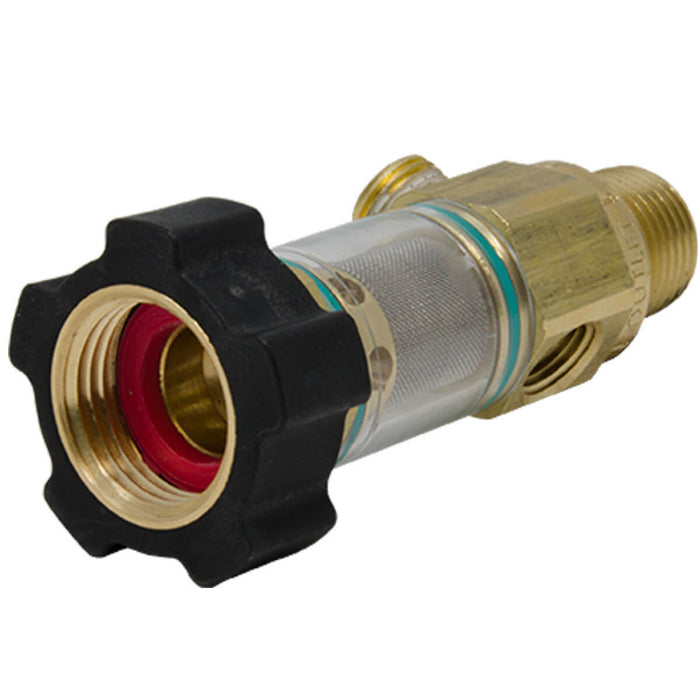

GP 100652 DuraView Inlet Water Filter – 8.0 GPM | 150 PSI Max

Model: 100652
Category: Pressure Washer Accessories → Inlet Water Filters
Type: GP DuraView Inlet Water Filter – 3/4" Garden Hose x 1/2" MNPT

The GP 100652 DuraView Inlet Water Filter is designed to protect pressure washer pumps and internal components by filtering debris and contaminants from incoming water before it reaches the pump. Contaminants such as sand, rust, sediment, and mineral particles can cause premature wear to pump packings, valves, and ceramic pistons if not properly filtered.

Key Features

• Protects pressure washer pumps from debris and sediment

• Clear DuraView housing allows quick visual inspection of the filter screen

• Helps prevent pump wear, clogged valves, and damaged pistons

• Simple installation between water supply and pump inlet

• 1/4" bypass port for optional plumbing configurations

Technical Specifications

Product Name: GP DuraView Inlet Water Filter
Manufacturer: General Pump
Part Number: 100652

Maximum Flow Rate: 8.0 GPM
Maximum Pressure: 150 PSI

Inlet Connection: 3/4" Garden Hose
Outlet Connection: 1/2" Male NPT
Bypass Port: 1/4"

Application: Pressure washer inlet water filtration
Condition: New

Typical Applications

• Pressure washer pump inlet filtration

• Residential and commercial pressure washers

• Systems using garden hose water supply

• Contractor and industrial pressure washing equipment

• Applications requiring debris filtration before the pump
