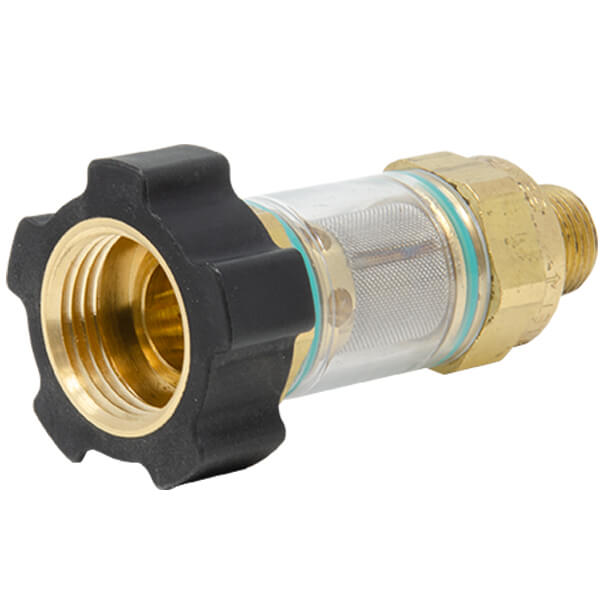

GP 100649 DuraView Inlet Water Filter – 8.0 GPM | 150 PSI Max

Model: 100649
Category: Pressure Washer Accessories → Inlet Water Filters
Type: GP DuraView Inlet Water Filter – 3/4" Garden Hose x 1/2" MNPT

The GP 100649 DuraView Inlet Water Filter is designed to protect pressure washer pumps and internal components by filtering debris and contaminants from incoming water before it enters the pump. Water sources often contain sand, rust, minerals, and sediment, which can damage pump packings, valves, and ceramic pistons if not properly filtered.

Key Features

• Protects pressure washer pumps from debris and sediment

• Clear DuraView housing for easy visual inspection

• Helps prevent pump wear, clogged valves, and piston damage

• Simple installation between water supply hose and pump inlet

• Compact design without bypass port

Technical Specifications

Product Name: GP DuraView Inlet Water Filter
Manufacturer: General Pump
Part Number: 100649

Maximum Flow Rate: 8.0 GPM
Maximum Pressure: 150 PSI

Inlet Connection: 3/4" Garden Hose
Outlet Connection: 1/2" Male NPT
Bypass Port: None

Application: Pressure washer inlet water filtration
Condition: New

Typical Applications

• Pressure washer pump inlet filtration

• Residential and commercial pressure washers

• Systems using garden hose water supply

• Contractor and industrial pressure washing equipment

• Applications requiring clean inlet water to protect pump components
