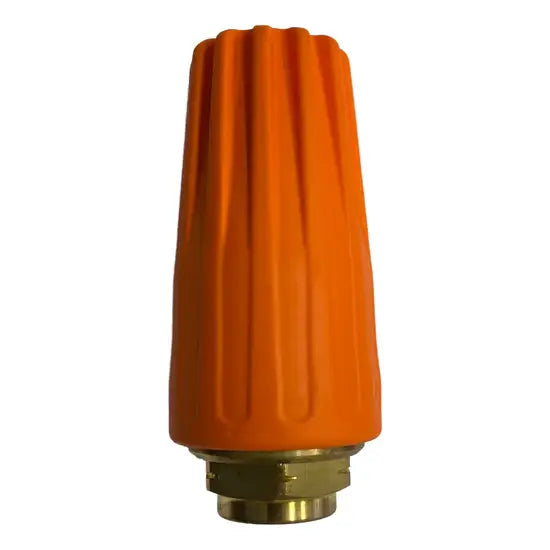

Gladiator 5800 PSI Rotating Turbo Nozzle – 12.0 Orifice Pressure Washer Nozzle
Part Number: 7603
Category: Pressure Washer Parts & Accessories → Pressure Washer Nozzles → Turbo Nozzles
Type: Gladiator 5800 PSI Rotating Turbo Nozzle – 12.0 Orifice Pressure Washer Nozzle
The Gladiator 5800 PSI Rotating Turbo Nozzle (Part #7603) is a heavy-duty rotating pressure washer nozzle designed for ultra-high-flow commercial and industrial pressure washing systems. Featuring a 12.0 orifice and a maximum working pressure of 5,800 PSI, this turbo nozzle combines the concentrated cleaning force of a zero-degree spray with a high-speed rotating action to deliver exceptional cleaning performance while increasing surface coverage.
Key Features & Benefits
- Part Number: 7603
- Gladiator professional rotating turbo nozzle
- 12.0 orifice
- Rated for up to 5,800 PSI
- Designed for pressure washers up to 12.0 GPM
- High-speed rotating spray pattern
- Combines concentrated impact with wider cleaning coverage
- Removes heavy dirt, grease, mud, algae, and stubborn buildup
- Heavy-duty construction for commercial and industrial applications
- Maximizes cleaning speed and efficiency
Technical Specifications
Part Number: 7603
Manufacturer: Gladiator
Product Type: Rotating Turbo Nozzle
Orifice Size: 12.0
Maximum Pressure: 5,800 PSI
Maximum Flow Rate: 12.0 GPM
Nozzle Type: Rotating (Turbo)
Compatible Applications
Ideal for cleaning:
- Concrete driveways
- Sidewalks
- Parking lots
- Brick and masonry
- Stone surfaces
- Heavy equipment
- Construction machinery
- Agricultural equipment
- Fleet vehicles
- Industrial facilities
- Loading docks
- Commercial pressure washing applications
Function of the Rotating Turbo Nozzle
The Gladiator 7603 Rotating Turbo Nozzle generates a rapidly spinning high-pressure water jet that combines the cutting force of a concentrated stream with the broader coverage of a rotating spray pattern. This design helps to:
- Remove embedded dirt and stubborn grime
- Increase cleaning efficiency on durable surfaces
- Cover more area with fewer passes
- Reduce operator fatigue during extended cleaning
- Deliver consistent, high-impact cleaning performance
Common Signs Replacement Is Needed
Replace the turbo nozzle if you notice:
- Reduced cleaning power
- Uneven or distorted spray pattern
- Nozzle no longer rotates properly
- Internal rattling or excessive vibration
- Leaking from the nozzle body
- Damaged inlet or connection
- Visible wear after prolonged use
Replacing a worn turbo nozzle restores maximum spray performance and cleaning efficiency.
Installation & Service Notes
Turn off the pressure washer and relieve system pressure before replacing the nozzle.
Install the Gladiator 7603 Rotating Turbo Nozzle onto a compatible spray lance or quick-connect coupler, ensuring the nozzle is securely connected before operating the pressure washer.
Important: Match the 12.0 orifice to your pressure washer's 12.0 GPM flow rate and operating pressure for optimal performance. Never exceed the maximum working pressure of 5,800 PSI. Turbo nozzles are designed for durable surfaces only and should not be used on painted finishes, vehicles, windows, soft wood, or other delicate materials that may be damaged by concentrated high-pressure spray.
Maintenance Recommendations
- Flush the nozzle thoroughly with clean water after each use.
- Inspect regularly for debris, mineral deposits, or signs of wear.
- Use filtered water whenever possible to maximize service life.
- Avoid dropping or striking the nozzle, as impacts can damage the internal rotating mechanism.
- Store the nozzle in a clean, dry location when not in use.
- Replace the nozzle if the rotating action becomes inconsistent or stops to maintain peak cleaning performance and productivity.
