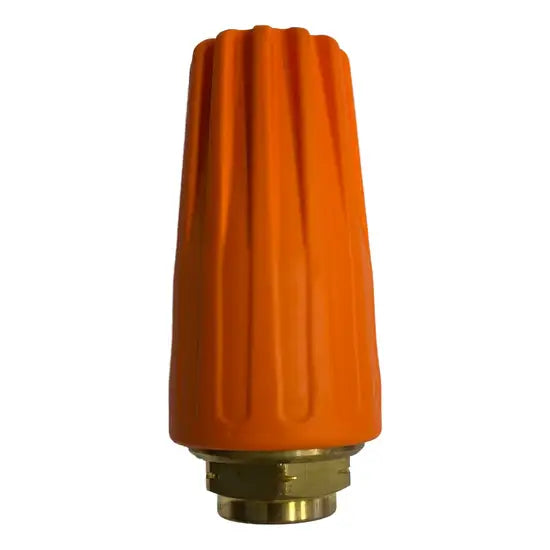

Gladiator 5800 PSI Rotating Turbo Nozzle – 10.0 Orifice Pressure Washer Nozzle
Part Number: 7602
Category: Pressure Washer Parts & Accessories → Pressure Washer Nozzles → Turbo Nozzles
Type: Gladiator 5800 PSI Rotating Turbo Nozzle – 10.0 Orifice Pressure Washer Nozzle
The Gladiator 5800 PSI Rotating Turbo Nozzle (Part #7602) is a professional-grade rotating pressure washer nozzle engineered for the highest-flow commercial and industrial pressure washing systems. Featuring a 10.0 orifice and a maximum working pressure of 5,800 PSI, this turbo nozzle combines the concentrated force of a zero-degree spray with a high-speed rotating action to deliver powerful cleaning performance with wider surface coverage.
Key Features & Benefits
- Part Number: 7602
- Gladiator professional rotating turbo nozzle
- 10.0 orifice
- Rated for up to 5,800 PSI
- Designed for pressure washers up to 10.0 GPM
- High-speed rotating spray pattern
- Combines concentrated cleaning power with wider surface coverage
- Removes heavy dirt, grease, mud, algae, and stubborn buildup
- Heavy-duty construction for commercial and industrial applications
- Increases cleaning efficiency and reduces cleaning time
Technical Specifications
Part Number: 7602
Manufacturer: Gladiator
Product Type: Rotating Turbo Nozzle
Orifice Size: 10.0
Maximum Pressure: 5,800 PSI
Maximum Flow Rate: 10.0 GPM
Nozzle Type: Rotating (Turbo)
Compatible Applications
Ideal for cleaning:
- Concrete driveways
- Sidewalks
- Parking lots
- Brick and masonry
- Stone surfaces
- Heavy equipment
- Construction machinery
- Agricultural equipment
- Fleet vehicles
- Industrial facilities
- Loading docks
- Commercial pressure washing applications
Function of the Rotating Turbo Nozzle
The Gladiator 7602 Rotating Turbo Nozzle produces a rapidly spinning high-pressure water jet that combines the concentrated impact of a narrow spray with the broader coverage of a rotating pattern. This design helps to:
- Remove embedded dirt and stubborn grime
- Increase cleaning efficiency on durable surfaces
- Cover larger areas with fewer passes
- Reduce operator fatigue during extended cleaning
- Deliver consistent, high-impact cleaning performance
Common Signs Replacement Is Needed
Replace the turbo nozzle if you notice:
- Reduced cleaning power
- Uneven or distorted spray pattern
- Nozzle no longer rotates properly
- Internal rattling or excessive vibration
- Leaks from the nozzle body
- Damaged inlet or connection
- Visible wear after prolonged use
Replacing a worn turbo nozzle restores optimal spray performance and maximum cleaning efficiency.
Installation & Service Notes
Turn off the pressure washer and relieve system pressure before replacing the nozzle.
Install the Gladiator 7602 Rotating Turbo Nozzle onto a compatible spray lance or quick-connect coupler, ensuring the nozzle is securely connected before operating the pressure washer.
Important: Match the 10.0 orifice to your pressure washer's 10.0 GPM flow rate and operating pressure for optimum performance. Never exceed the maximum working pressure of 5,800 PSI. Turbo nozzles are intended for use on durable surfaces only and should not be used on painted finishes, vehicles, windows, soft wood, or other delicate materials that may be damaged by concentrated high-pressure spray.
Maintenance Recommendations
- Flush the nozzle thoroughly with clean water after each use.
- Inspect regularly for debris, mineral buildup, or signs of wear.
- Use filtered water whenever possible to maximize service life.
- Avoid dropping or striking the nozzle, as impacts can damage the internal rotating mechanism.
- Store the nozzle in a clean, dry location when not in use.
- Replace the nozzle if the rotating action becomes inconsistent or stops to maintain peak cleaning performance and productivity.
