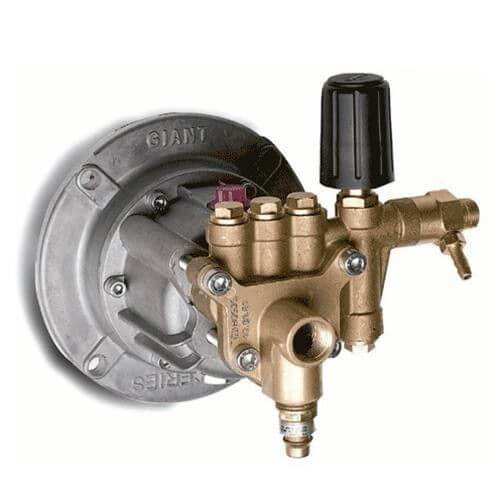

Giant GXRV2224-212 Vertical Pump – 2.2 GPM @ 2400 PSI, Regulating Valve, 1.8mm

Model: GXRV2224-212
Category: Pressure Washer Pumps → Vertical Pressure Washer Pumps
Type: Giant GXRV2224-212 Vertical Pump – 2.2 GPM @ 2400 PSI, 3450 RPM, with Regulating Valve

The Giant GXRV2224-212 Vertical Pump is a compact vertical-mount pressure washer pump designed for dependable residential and light commercial cleaning applications. Rated for 2.2 GPM at 2400 PSI, this pump features an integrated regulating valve and is engineered for direct-drive systems operating at 3450 RPM.

Key Features

• Genuine Giant GXRV2224-212 vertical pressure washer pump

• Rated 2.2 GPM at 2400 PSI

• Includes regulating valve

• Designed for 3450 RPM direct-drive applications

• Compact and lightweight vertical pump design

• Supports either direction of shaft rotation

• 1/2" NPT inlet and 3/8" NPT discharge port

• Ideal for residential and light commercial pressure washer systems

Technical Specifications

Product Name: Vertical Pressure Washer Pump
Manufacturer: Giant Pump
Model: GXRV2224-212

Flow Rate: 2.2 GPM
Maximum Pressure: 2400 PSI
Maximum Inlet Pressure: Up to 90 PSIG
RPM: 3450
Plunger Diameter: 16 mm
Stroke: 4.7 mm
Crankcase Oil Capacity: 4.7 fl. oz. (4.1 fl. oz. horizontal)
Maximum Fluid Temperature: Up to 80°F

Inlet Port: 1/2" NPT
Discharge Port: 3/8" NPT
Shaft Rotation: Either direction
Weight: 9 lbs.
Width: 8.325"
Height: 6.45"

Swash Plate Bore (Horizontal): 3/4" x 3/16" Keyway
Swash Plate Bore (Vertical): 7/8" x 3/16" Keyway
Valve Type: Polyamide Plastic
Condition: New

Important Notes

• A 25 PSIG minimum inlet pressure is required

• The pump can be driven in either direction of rotation

• On TEFC motors, the cooling fan must be positioned so cooling air is drawn from the non-drive end of the motor toward the pump

Typical Applications

• Residential pressure washer replacement pumps

• Light commercial direct-drive cleaning systems

• Vertical-mount pressure washer assemblies

• Equipment requiring a 2.2 GPM 2400 PSI vertical pump

• Compatible systems using a 7/8" vertical swash plate bore
