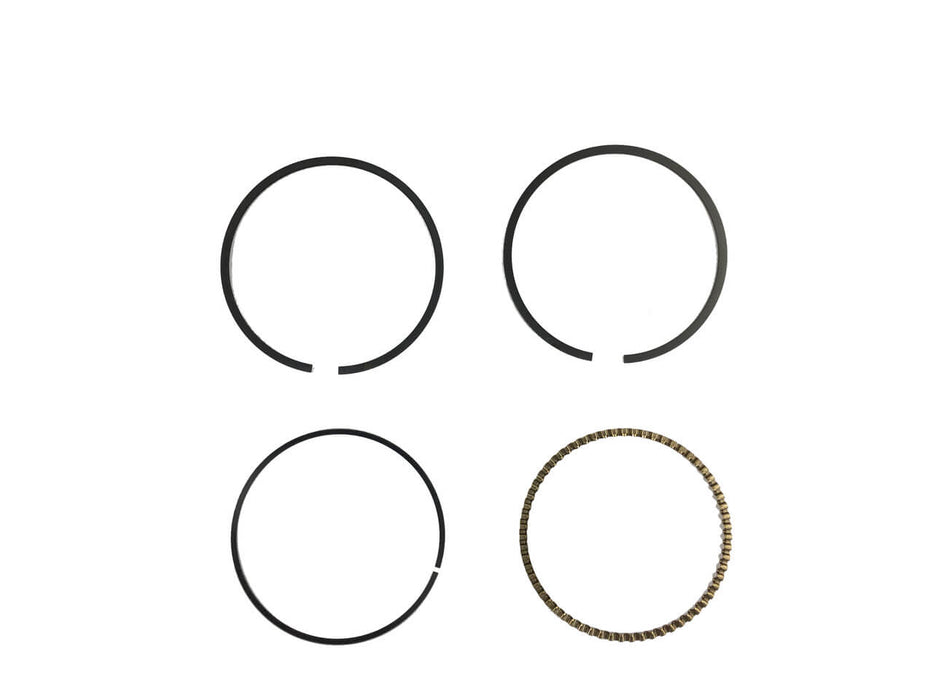

Generac 0G25650SRV 90mm Piston Ring Set – Genuine OEM Replacement Generator Engine Ring Set

Part Number: 0G25650SRV
Category: Generator Parts & Accessories → Engine Components → Pistons & Piston Rings
Type: Generac 0G25650SRV 90mm Piston Ring Set – Genuine OEM Replacement Generator Engine Ring Set

The Generac 0G25650SRV 90mm Piston Ring Set is a genuine OEM replacement engine component designed for compatible Generac generator engines with a designated 90mm piston bore application. These piston rings help seal the combustion chamber, regulate engine oil along the cylinder wall, and maintain proper compression during engine operation. Manufactured to original equipment specifications, this ring set supports efficient combustion, dependable engine performance, and proper internal engine sealing during overhaul or repair.

Key Features & Benefits

• Part Number: 0G25650SRV
• Genuine OEM Generac replacement part
• Designed for compatible 90mm piston applications
• Replacement generator engine piston ring set
• Helps seal the combustion chamber
• Supports proper cylinder compression
• Helps regulate oil along the cylinder wall
• Reduces combustion-gas leakage into the crankcase
• Supports efficient combustion and engine performance
• Ideal for engine rebuilding and overhaul applications
• Manufactured to original equipment specifications
• Replaces worn, damaged, broken, or seized piston rings

Technical Specifications

• Part Number: 0G25650SRV
• Manufacturer: Generac
• Product Type: Piston Ring Set
• Component Type: Internal Engine Ring Set
• Nominal Piston Diameter: 90mm
• Application: Generator engine piston assembly
• Function: Compression sealing and cylinder-wall oil control
• Service Type: Engine overhaul and internal repair
• OEM Part: Yes
• Quantity: One Piston Ring Set

Compatible Applications

The Generac 0G25650SRV Piston Ring Set is designed for select:

• Generac generator engines
• Compatible 90mm piston and cylinder assemblies
• Standby and portable generator systems
• Internal engine repair projects
• Generator engine rebuilding applications
• Equipment requiring OEM piston ring set 0G25650SRV

Always verify the generator model, serial number, engine model, piston diameter, cylinder bore specifications, ring-groove dimensions, parts diagram, and original part number before ordering to ensure proper compatibility.

Function of the Piston Ring Set

The 0G25650SRV Piston Ring Set is designed to:

• Seal the area between the piston and cylinder wall
• Help maintain proper engine compression
• Reduce combustion-gas leakage into the crankcase
• Regulate lubricating oil on the cylinder wall
• Help prevent excessive oil from entering the combustion chamber
• Transfer piston heat to the cylinder wall
• Support efficient air-and-fuel combustion
• Help maintain dependable engine power
• Restore internal sealing during engine rebuilding
• Support reliable generator operation

Properly fitted piston rings are essential for maintaining compression, controlling oil consumption, and supporting efficient engine performance.

Common Signs Replacement Is Needed

Inspect or replace the piston rings if you notice:

• Low or uneven cylinder compression
• Excessive engine oil consumption
• Blue or oil-related exhaust smoke
• Reduced engine power
• Difficult starting
• Excessive crankcase pressure or blow-by
• Oil-fouled spark plugs
• Poor combustion efficiency
• Scored, broken, seized, or heavily worn rings
• Excessive piston-ring end gap
• Cylinder leakage confirmed during diagnostic testing

These symptoms may also result from worn cylinders, damaged pistons, valve problems, failed seals, or other internal engine conditions. Complete diagnostic testing and inspection should be performed before replacing the piston rings.

Installation & Service Notes

• Shut down the generator and disable automatic startup.
• Disconnect the starting battery and isolate all power sources.
• Allow the engine and exhaust system to cool completely.
• Remove and disassemble the engine according to the Generac service manual.
• Inspect the piston, cylinder bore, connecting rod, and ring grooves for damage.
• Measure the cylinder bore for taper, scoring, wear, and out-of-round conditions.
• Confirm the ring end gap inside the cylinder before installation.
• Clean the piston ring grooves without damaging their surfaces.
• Install each ring in the correct groove and orientation.
• Stagger the ring gaps according to the manufacturer’s specifications.
• Use a proper piston-ring expander and ring compressor during installation.
• Lubricate the rings, piston, and cylinder wall with the approved engine oil.
• Follow all manufacturer torque values and engine assembly procedures.
• Complete the specified break-in and operational checks after repair.

Important: Piston-ring replacement requires substantial engine disassembly, specialized measuring tools, and precise installation. Service should be performed by a qualified small-engine or generator technician. Always verify the engine model, piston diameter, cylinder condition, ring specifications, and original part number before ordering.

Maintenance Recommendations

• Maintain the correct engine oil level and specification.
• Follow the manufacturer’s oil and filter replacement intervals.
• Keep the engine air filter clean to reduce cylinder contamination.
• Prevent dirt and debris from entering the engine during service.
• Inspect the piston and cylinder whenever ring damage is discovered.
• Measure cylinder wear before installing new piston rings.
• Do not install new rings in a damaged or excessively worn cylinder.
• Replace related gaskets, seals, and single-use hardware during reassembly.
• Follow the manufacturer’s engine break-in procedure after rebuilding.
• Monitor compression, oil consumption, and exhaust condition after repair.
• Use genuine OEM replacement parts to maintain proper fit, sealing, and dependable generator engine performance.
