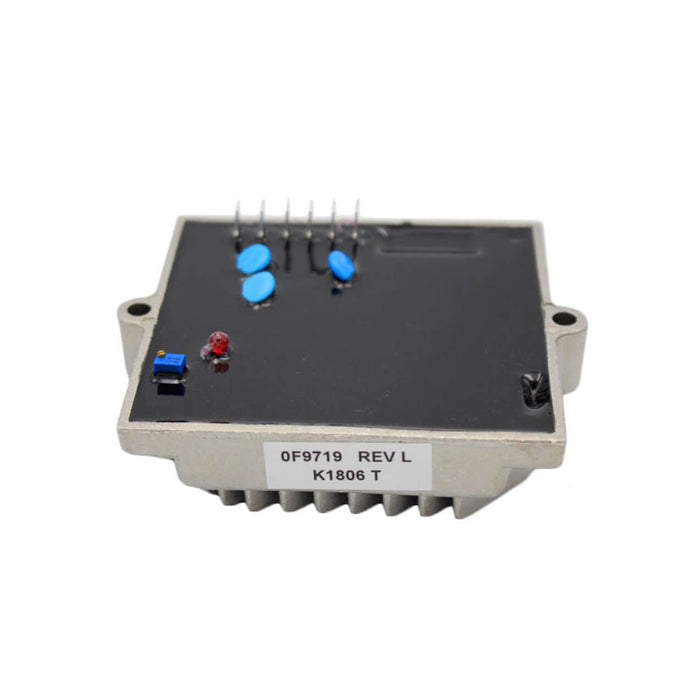

Generac 0F97190SRV PCB Automatic Voltage Regulator Assembly – Genuine OEM Replacement Air-Cooled Generator AVR
Part Number: 0F97190SRV
Category: Generator Parts → Electrical Components → Automatic Voltage Regulators
Type: Generac 0F97190SRV PCB Automatic Voltage Regulator Assembly – Genuine OEM Replacement Air-Cooled Generator AVR
The Generac 0F97190SRV PCB Automatic Voltage Regulator Assembly is a genuine OEM replacement AVR designed for compatible Generac air-cooled generators. This printed circuit board assembly monitors generator output and controls alternator excitation to help maintain stable voltage as electrical loads and operating conditions change. Manufactured to original equipment specifications, it provides the proper circuitry, electrical connections, response characteristics, and mounting fit required when replacing a failed or damaged generator voltage regulator.
Key Features & Benefits
- Part Number: 0F97190SRV
- Genuine OEM Generac replacement part
- Designed for compatible air-cooled Generac generators
- Printed circuit board voltage regulator assembly
- Commonly referred to as an automatic voltage regulator or AVR
- Monitors and regulates generator output voltage
- Controls alternator excitation as electrical loads change
- Helps maintain stable and consistent power output
- Supports dependable operation of connected equipment
- Direct replacement for a failed or damaged voltage regulator
- Manufactured to original equipment specifications
Technical Specifications
- Part Number: 0F97190SRV
- Manufacturer: Generac
- Product Type: PCB Automatic Voltage Regulator Assembly
- Common Abbreviation: AVR
- Generator Application: Designated air-cooled generator systems
- Application: Generator output-voltage regulation
- Installation Location: Designated generator electrical or alternator assembly
- OEM Part: Yes
- Quantity: Sold Individually
Compatible Applications
The Generac 0F97190SRV PCB Automatic Voltage Regulator Assembly is designed for use with select Generac air-cooled generators and compatible alternator configurations.
Always verify the generator model, serial number, frequency, alternator configuration, output-voltage requirements, connector arrangement, original part number, and applicable wiring diagram before ordering to ensure proper compatibility.
Function of the PCB Automatic Voltage Regulator
The 0F97190SRV PCB Automatic Voltage Regulator is designed to:
- Monitor the generator’s electrical output
- Control excitation current supplied to the alternator rotor
- Help maintain voltage within the specified operating range
- Compensate for changes in connected electrical load
- Support stable and consistent generator output
- Help reduce excessive voltage fluctuation
- Support dependable operation of connected equipment
- Restore the generator’s original voltage-regulation functionality
A properly operating AVR is essential for maintaining reliable generator output as electrical demand changes.
Common Signs Replacement Is Needed
Replace or inspect the voltage regulator assembly if you notice:
- Generator produces no electrical output
- Output voltage is consistently too high or too low
- Voltage fluctuates under a steady electrical load
- Connected lights flicker during operation
- Voltage changes excessively when loads are added or removed
- PCB or connectors show burning or heat damage
- Electrical components produce a burning odor
- Generator output remains unstable after engine speed is verified
- Diagnostic testing confirms AVR failure
Voltage problems may also result from incorrect engine speed, damaged brushes, contaminated slip rings, loose wiring, failed capacitors, or faults within the rotor or stator. Diagnose the complete generating system before replacing the regulator.
Installation & Service Notes
- Shut down the generator and allow it to cool completely before servicing.
- Disconnect all connected electrical loads and external power sources.
- Disable automatic startup according to the manufacturer’s instructions.
- Disconnect the starting battery, beginning with the negative cable.
- Confirm that no hazardous voltage is present before accessing electrical components.
- Use appropriate electrostatic-discharge precautions when handling the PCB.
- Label or photograph all original wires and connector positions.
- Handle the assembly by its edges and avoid touching exposed circuitry.
- Remove the damaged regulator without pulling directly on its wiring.
- Inspect connectors, terminals, brushes, and surrounding wiring for damage.
- Install the 0F97190SRV AVR in the correct position and orientation.
- Reconnect all wiring according to the applicable Generac wiring diagram.
- Reinstall every electrical cover and protective guard.
- Restore power and verify generator frequency and voltage with appropriate test equipment.
- Test the generator under controlled load conditions before returning it to service.
Important: Generators may start automatically and can contain hazardous voltage even when the engine is not running. Do not adjust or modify the AVR unless specifically directed by the applicable Generac service procedure. Professional installation is recommended for anyone unfamiliar with generator electrical diagnosis.
Maintenance Recommendations
- Verify generator voltage and frequency during scheduled maintenance.
- Keep the regulator and electrical enclosure clean and dry.
- Inspect connectors for corrosion, looseness, and heat damage.
- Check wiring for abrasion, pinching, and deteriorated insulation.
- Maintain the engine at the correct governed operating speed.
- Inspect carbon brushes and slip rings when diagnosing unstable output.
- Avoid exceeding the generator’s rated electrical capacity.
- Investigate abnormal voltage or electrical faults immediately.
- Use genuine OEM replacement parts to maintain proper compatibility, voltage regulation, and dependable generator performance.
