Generac 0D3546 Control Panel Harness – Genuine OEM Replacement Generator Wiring Harness
Part Number: 0D3546
Category: Generator Parts → Electrical Components → Control Panel Wiring Harnesses
Type: Generac 0D3546 Control Panel Harness – Genuine OEM Replacement Generator Wiring Harness

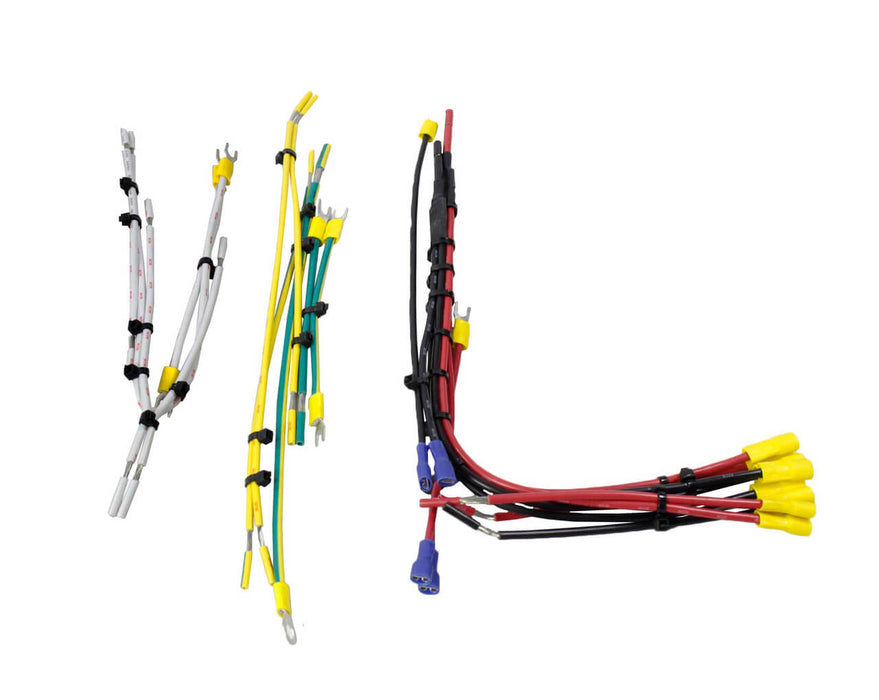

The Generac 0D3546 Control Panel Harness is a genuine OEM replacement wiring assembly designed for compatible Generac generators. This harness routes electrical power and control signals between designated control-panel components and the generator’s associated electrical systems. Manufactured to original equipment specifications, it provides the proper wire configuration, connector fit, length, and electrical compatibility required when replacing a burned, cut, corroded, damaged, or malfunctioning generator wiring harness.
Key Features & Benefits
- Part Number: 0D3546
- Genuine OEM Generac replacement part
- Designed for compatible Generac generators
- Replacement control-panel wiring harness
- Routes power and control signals between designated components
- Preconfigured wiring supports proper electrical connections
- Helps maintain organized internal wire routing
- Supports dependable control-panel operation
- Direct replacement for a damaged or malfunctioning harness
- Manufactured to original equipment specifications
- Ideal for generator electrical repair and maintenance
Technical Specifications
- Part Number: 0D3546
- Manufacturer: Generac
- Product Type: Generator Control Panel Wiring Harness
- Installation Location: Designated generator control-panel assembly
- Application: Electrical power and control-signal distribution
- OEM Part: Yes
- Quantity: Sold Individually
Compatible Applications
The Generac 0D3546 Control Panel Harness is designed for use with select Generac generators and compatible control-panel configurations.
Always verify the generator model, serial number, control-panel configuration, connector arrangement, original part number, wire routing, and applicable wiring diagram before ordering to ensure proper compatibility.
Function of the Control Panel Harness
The 0D3546 Control Panel Harness is designed to:
- Connect designated generator control-panel components
- Route electrical power through the control system
- Carry operating and monitoring signals
- Support communication between switches, breakers, gauges, and related components
- Maintain organized and protected electrical connections
- Help prevent loose or incorrect individual wiring
- Restore the generator’s original control-panel electrical functionality
A properly installed wiring harness is essential for dependable generator starting, monitoring, output control, and safety-system operation.
Common Signs Replacement Is Needed
Replace or inspect the control-panel harness if you notice:
- Cut, pinched, frayed, or melted wires
- Cracked or broken electrical connectors
- Burned, discolored, or overheated terminals
- Corrosion at wiring connections
- Intermittent control-panel operation
- Generator fails to start or respond to controls
- Gauges, switches, or indicator lights operate inconsistently
- Electrical faults remain after associated components are tested
- Previous repairs or splices have damaged the harness
Control-panel problems may also result from failed switches, circuit breakers, controllers, relays, sensors, grounds, or other electrical components. Diagnose the complete electrical system before ordering replacement parts.
Installation & Service Notes
- Shut down the generator and allow it to cool completely before servicing.
- Disconnect all connected electrical loads and external power sources.
- Disable automatic startup according to the manufacturer’s instructions.
- Disconnect the negative battery cable first, followed by the positive cable.
- Confirm that no hazardous voltage is present before opening the control panel.
- Photograph or label every original connector and wire-routing location.
- Release locking tabs carefully to avoid damaging mating connectors.
- Remove clips, ties, and retainers securing the existing harness.
- Route the 0D3546 Control Panel Harness according to the applicable wiring diagram.
- Keep wiring away from hot surfaces, sharp edges, and moving components.
- Confirm that every connector is fully seated and locked.
- Reinstall all clips, protective coverings, guards, and control-panel covers.
- Reconnect the positive battery cable first and the negative cable last.
- Test all generator and control-panel functions before returning the unit to service.
Important: Generator wiring may carry hazardous voltage, and some generators can start automatically. Professional installation is recommended if you are unfamiliar with electrical diagnosis, wiring diagrams, or generator control systems.
Maintenance Recommendations
- Inspect control-panel wiring during scheduled generator maintenance.
- Keep connectors clean, dry, and fully seated.
- Check wiring for abrasion, heat damage, and loose routing.
- Secure the harness with the correct clips and retainers.
- Keep wires away from exhaust components and moving assemblies.
- Investigate overheated terminals and repeated electrical faults promptly.
- Avoid unapproved splices or modifications to the OEM harness.
- Use genuine OEM replacement parts to maintain proper connector fit, electrical compatibility, and dependable generator control-panel operation.
