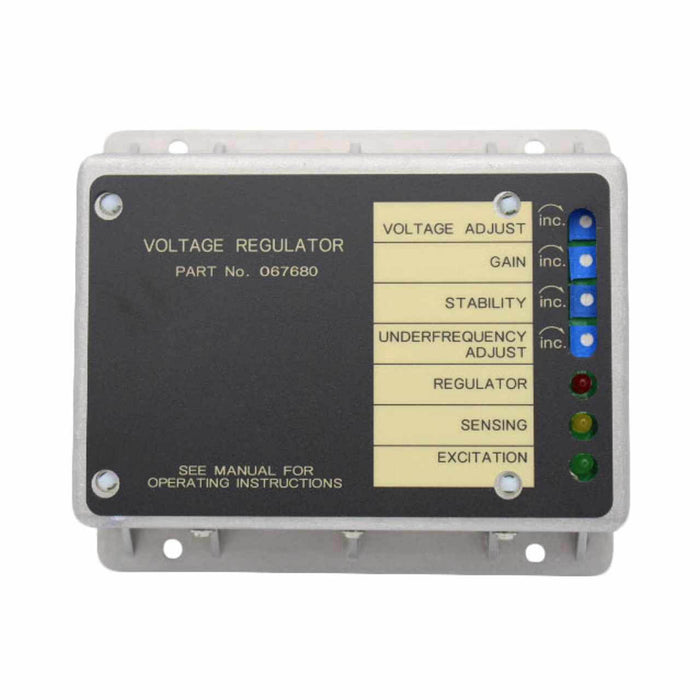

Generac 0676800SRV Voltage Regulator Assembly 60Hz – Genuine OEM Replacement Generator AVR
Part Number: 0676800SRV
Category: Generator Parts → Electrical Components → Automatic Voltage Regulators
Type: Generac 0676800SRV Voltage Regulator Assembly 60Hz – Genuine OEM Replacement Generator AVR
The Generac 0676800SRV Voltage Regulator Assembly is a genuine OEM replacement automatic voltage regulator designed for compatible 60Hz Generac generators. Commonly referred to as an AVR, this electrical component monitors generator output and adjusts excitation to help maintain voltage within the designated operating range as engine speed and connected loads change. Manufactured to original equipment specifications, it provides the proper electrical compatibility, connections, response characteristics, and mounting fit required when replacing a failed or damaged generator voltage regulator.
Key Features & Benefits
- Part Number: 0676800SRV
- Genuine OEM Generac replacement part
- Designed for compatible 60Hz Generac generators
- Replacement automatic voltage regulator assembly
- Monitors and regulates generator output voltage
- Adjusts alternator excitation as operating conditions change
- Helps maintain stable electrical output
- Supports dependable operation of connected equipment
- Direct replacement for a failed or damaged AVR
- Manufactured to original equipment specifications
- Ideal for generator electrical repair and maintenance
Technical Specifications
- Part Number: 0676800SRV
- Manufacturer: Generac
- Product Type: Automatic Voltage Regulator Assembly
- Frequency Application: 60Hz
- Common Abbreviation: AVR
- Application: Generator output-voltage regulation
- Installation Location: Designated generator electrical or alternator assembly
- OEM Part: Yes
- Quantity: Sold Individually
Compatible Applications
The Generac 0676800SRV Voltage Regulator Assembly is designed for use with select 60Hz Generac generators and compatible alternator configurations.
Always verify the generator model, serial number, frequency, alternator configuration, output-voltage requirements, connector arrangement, original part number, and applicable wiring diagram before ordering to ensure proper compatibility.
Function of the Voltage Regulator Assembly
The 0676800SRV Voltage Regulator Assembly is designed to:
- Monitor the generator’s electrical output
- Control excitation current supplied to the alternator rotor
- Help maintain voltage within the specified operating range
- Compensate for changes in connected electrical load
- Support stable and consistent generator output
- Help protect connected equipment from improper voltage
- Restore the generator’s original voltage-regulation functionality
A properly operating AVR is essential for consistent generator output and dependable performance under changing load conditions.
Common Signs Replacement Is Needed
Replace or inspect the voltage regulator if you notice:
- Generator produces no electrical output
- Output voltage is consistently too high or too low
- Voltage fluctuates under a steady load
- Lights connected to the generator flicker
- Generator voltage changes excessively as loads are added
- AVR housing or connectors show heat damage
- Electrical components produce a burning odor
- Voltage remains unstable after engine speed is verified
- Diagnostic testing confirms regulator failure
Voltage problems may also result from incorrect engine speed, damaged brushes, contaminated slip rings, loose wiring, failed capacitors, or faults in the rotor or stator. Diagnose the complete generating system before replacing the regulator.
Installation & Service Notes
- Shut down the generator and allow it to cool completely before servicing.
- Disconnect all electrical loads and external power sources.
- Disable automatic startup according to the manufacturer’s instructions.
- Disconnect the starting battery, beginning with the negative cable.
- Confirm that no hazardous voltage is present before accessing electrical components.
- Label or photograph all original wire and connector positions.
- Remove the damaged regulator without pulling directly on the wiring.
- Inspect the connectors, terminals, brushes, and surrounding wiring for damage.
- Install the 0676800SRV Voltage Regulator Assembly in the correct orientation.
- Reconnect all wiring according to the applicable Generac wiring diagram.
- Reinstall all electrical covers and protective guards.
- Restore power and verify generator frequency and voltage with appropriate test equipment.
- Test the generator under controlled load conditions before returning it to service.
Important: Do not adjust an automatic voltage regulator unless the Generac service procedure specifically permits it and the correct test equipment is available. Improper adjustment can damage the generator or connected equipment. Professional installation is recommended for anyone unfamiliar with generator electrical diagnosis.
Maintenance Recommendations
- Verify generator voltage and frequency during scheduled maintenance.
- Keep electrical connectors clean, dry, and fully seated.
- Inspect wiring for heat damage, corrosion, and abrasion.
- Maintain the engine at the correct governed operating speed.
- Check carbon brushes and slip rings when diagnosing unstable output.
- Avoid exceeding the generator’s rated electrical capacity.
- Investigate voltage fluctuation or abnormal output immediately.
- Do not modify the regulator wiring or substitute an incompatible AVR.
- Use genuine OEM replacement parts to maintain proper electrical compatibility, voltage regulation, and dependable generator performance.
