Generac 0663860SRV Brush Holder Assembly – Genuine OEM Replacement Generator Brush Holder Assembly

Part Number: 0663860SRV
Category: Generator Parts → Alternator Components → Brush Holder Assemblies
Type: Generac 0663860SRV Brush Holder Assembly – Genuine OEM Replacement Generator Brush Holder Assembly

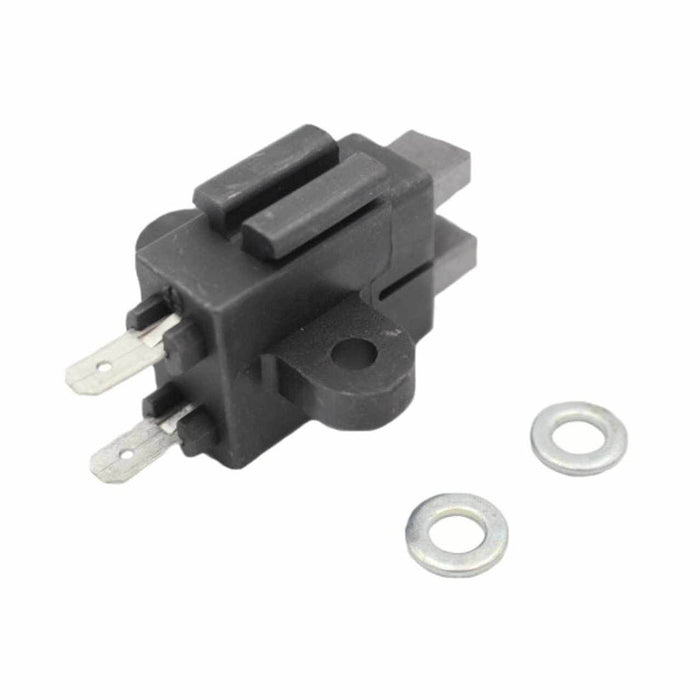

The Generac 0663860SRV Brush Holder Assembly is a genuine OEM replacement alternator component designed for compatible Generac generators. This assembly positions and supports the generator’s carbon brushes so they maintain proper electrical contact with the rotating slip rings. Manufactured to original equipment specifications, it provides the correct brush alignment, spring pressure, electrical connections, and mounting fit required when replacing a cracked, burned, worn, or damaged brush holder assembly.

Key Features & Benefits

• Part Number: 0663860SRV
• Genuine OEM Generac replacement part
• Designed for compatible Generac generators
• Replacement alternator brush holder assembly
• Supports and aligns designated carbon brushes
• Helps maintain proper brush-to-slip-ring contact
• Supports alternator field excitation
• Helps maintain consistent generator output
• Direct replacement for a damaged or worn brush holder
• Manufactured to original equipment specifications
• Ideal for generator electrical repair and maintenance

Technical Specifications

• Part Number: 0663860SRV
• Manufacturer: Generac
• Product Type: Generator Brush Holder Assembly
• Installation Location: Generator alternator or generator-head assembly
• Application: Carbon-brush support, alignment, and electrical contact
• OEM Part: Yes
• Quantity: Sold Individually

Compatible Applications

The Generac 0663860SRV Brush Holder Assembly is designed for use with select Generac generators and compatible alternator configurations.

Always verify the generator model, serial number, alternator configuration, original part number, connector arrangement, mounting design, included components, and applicable parts diagram before ordering to ensure proper compatibility.

Function of the Brush Holder Assembly

The 0663860SRV Brush Holder Assembly is designed to:

• Hold the carbon brushes in their proper operating positions
• Maintain brush alignment against the rotating slip rings
• Support consistent spring pressure as the brushes wear
• Transfer excitation current to the alternator rotor
• Help create the magnetic field required for power generation
• Support stable and dependable electrical output
• Restore the generator’s original brush-contact functionality

Proper brush alignment and contact pressure are essential for dependable alternator excitation and generator voltage output.

Common Signs Replacement Is Needed

Replace or inspect the brush holder assembly if you notice:

• Generator engine runs but produces no electrical output
• Output voltage is low, intermittent, or unstable
• Brush holder is cracked, melted, or distorted
• Carbon brushes bind within the holder
• Brush springs are weak, broken, or damaged
• Electrical leads or terminals show heat damage
• Excessive arcing occurs at the slip rings
• Brushes wear unevenly
• Assembly will not mount securely
• Diagnostic testing confirms poor brush contact

Output problems can also result from worn brushes, damaged slip rings, loose wiring, a failed voltage regulator, or faults within the rotor or stator. Diagnose the complete generating system before replacing parts.

Installation & Service Notes

• Shut down the generator and allow it to cool completely before servicing.
• Disconnect all electrical loads and external power sources.
• Disable automatic startup according to the manufacturer’s instructions.
• Disconnect the starting battery, beginning with the negative cable.
• Confirm that no hazardous voltage is present before accessing the alternator.
• Label or photograph the original wiring and connector positions.
• Remove the existing brush holder without pulling directly on its wires.
• Inspect the carbon brushes, springs, terminals, and slip rings for damage.
• Clean the mounting area using the manufacturer-approved procedure.
• Install the 0663860SRV Brush Holder Assembly in the correct orientation.
• Confirm that the brushes move freely and contact the slip rings properly.
• Reconnect all wiring according to the applicable Generac wiring diagram.
• Reinstall all protective covers and guards.
• Verify generator voltage and frequency with appropriate test equipment.

Important: Brush holder assemblies may be supplied with different included components depending on the service package. Verify the product contents before ordering. Generator electrical systems may contain hazardous voltage and can start automatically, so professional installation is recommended when proper electrical service procedures are unavailable.

Maintenance Recommendations

• Inspect the brush holder during scheduled generator maintenance.
• Check carbon-brush length and condition regularly.
• Confirm that each brush moves freely within the holder.
• Keep the assembly free of carbon dust, oil, and debris.
• Inspect the slip rings for scoring, burning, and contamination.
• Investigate excessive arcing or unstable generator output promptly.
• Replace damaged springs, brushes, or holder components as required.
• Avoid contaminating the brush contact surfaces with grease.
• Use genuine OEM replacement parts to maintain proper alignment, electrical contact, and dependable generator output.
