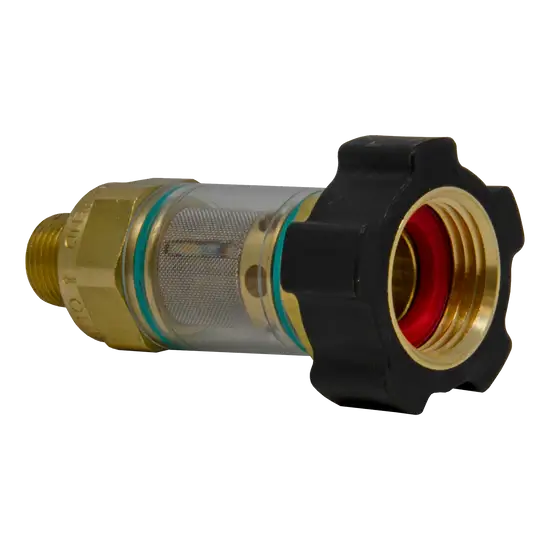

DuraView Inlet Filter 3/8" MPT No Ports – OEM Replacement Part

Part Number: 5181
Category: Pressure Washer Plumbing → Water Inlet Filters → Inlet Water Filters
Type: DuraView Inline Water Inlet Filter

The DuraView Inlet Filter 3/8" MPT No Ports is a heavy-duty inline water filtration device designed to protect pressure washer pumps and water-fed equipment from harmful debris and contaminants. Engineered for general-purpose pressure washer applications, this filter helps remove dirt, sand, rust, scale, and other particles before they enter sensitive system components, helping reduce wear and extend equipment life.

Key Features & Benefits

• OEM-quality inline water filter
• Clear DuraView housing for easy visual inspection
• Heavy-duty load-bearing brass spine
• Integrated garden hose connection
• Flow-through design promotes consistent water delivery
• Helps remove dirt, sand, rust, and debris
• Protects pumps, injectors, valves, and nozzles
• Strong clear housing designed for pressure washer use
• Easy to inspect and maintain
• Ideal for general-purpose pressure washer applications

Technical Specifications

Product Type: Inline Water Inlet Filter

Filter Style: DuraView Clear Housing

Outlet Connection: 3/8" MPT

Outlet Thread Type: Male Pipe Thread

Integrated Garden Hose Connection: Yes

Maximum Flow Rate: 8.0 GPM

Maximum Operating Pressure: 150 PSI

Minimum Operating Pressure: 15 PSI

Maximum Temperature: 180°F

Construction: Brass Spine with Clear Housing

Weight: 0.5 lb

Application: Water Inlet Filtration & Pump Protection

OEM Replacement: Yes

Typical Applications

• Pressure washer water supply systems
• Pump inlet protection
• Commercial cleaning equipment
• Industrial wash-down systems
• Water transfer equipment
• Soft wash systems
• Mobile pressure washer trailers
• Residential pressure washer installations
• General-purpose water filtration applications

Performance Advantages

• Helps prevent contaminants from reaching sensitive pump components
• Clear housing allows quick visual inspection of filter condition
• Heavy-duty brass spine provides exceptional structural support
• Maintains consistent water flow to connected equipment
• Reduces pump wear and maintenance requirements
• Helps prevent clogged injectors, valves, and nozzles
• Simplifies preventative maintenance procedures
• Supports long equipment service life
• Suitable for residential, commercial, and industrial applications

Maintenance Recommendations

• Inspect the filter regularly through the clear housing.
• Clean the filter screen whenever debris buildup becomes visible.
• Check all connections for leaks before operation.
• Replace damaged filter components immediately.
• Monitor water quality if frequent cleaning is required.
• Inspect the housing and seals during routine equipment maintenance.
