DuraView Inlet Filter 1/2" MPT No Ports – OEM Replacement Part

Part Number: 5419
Category: Pressure Washer Plumbing → Water Inlet Filters → Inlet Water Filters
Type: DuraView Inline Water Inlet Filter

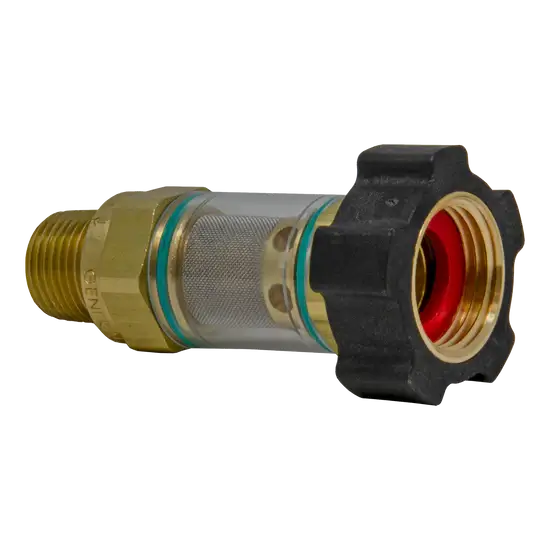

The DuraView Inlet Filter 1/2" MPT No Ports (Part #5419) is a high-quality inline water filtration device designed to protect pressure washer pumps, transfer pumps, injectors, valves, and other water-fed equipment from damaging debris and contaminants. Manufactured by General Pump, this filter helps remove dirt, sand, rust particles, scale, and other foreign materials before they enter sensitive system components.

Key Features & Benefits

• Genuine General Pump OEM replacement part
• Transparent DuraView housing for easy visual inspection
• 3/4" Female Garden Hose (FGH) inlet
• 1/2" Male Pipe Thread (MPT) outlet
• No bypass ports for simplified installation
• Helps remove dirt, sand, rust, and debris
• Protects pumps, injectors, valves, and nozzles
• Supports flow rates up to 8 GPM
• Suitable for hot and cold water applications
• Easy-to-clean and maintain design

Technical Specifications

Part Number: 5419

Product Type: Inline Water Inlet Filter

Manufacturer: General Pump

Inlet Connection: 3/4" FGH

Inlet Thread Type: Female Garden Hose Thread

Outlet Connection: 1/2" MPT

Outlet Thread Type: Male Pipe Thread

Bypass Ports: None

Maximum Flow Rate: 8 GPM

Maximum Operating Pressure: 150 PSI

Maximum Temperature: 180°F

Housing Style: DuraView Transparent Housing

Application: Water Inlet Filtration & Pump Protection

OEM Replacement: Yes

Typical Applications

• Pressure washer water supply systems
• Pump inlet protection
• Commercial cleaning equipment
• Industrial wash-down systems
• Water transfer systems
• Soft wash systems
• Mobile pressure washer trailers
• Residential pressure washer installations
• General-purpose water filtration applications

Performance Advantages

• Helps prevent debris from entering pumps and equipment
• Protects valves, injectors, seals, and nozzles from contamination
• Transparent housing allows quick visual inspection
• Reduces maintenance caused by clogged components
• Supports consistent water flow and system performance
• Simplified no-port design minimizes plumbing complexity
• Extends pump and equipment service life
• Simplifies preventative maintenance procedures
• Suitable for residential, commercial, and industrial applications

Maintenance Recommendations

• Inspect the filter regularly through the clear housing.
• Clean the filter screen when debris buildup becomes visible.
• Check all threaded connections for leaks before operation.
• Replace damaged screens or filter components immediately.
• Monitor water quality if frequent cleaning becomes necessary.
• Inspect the housing, seals, and fittings during routine equipment maintenance.
