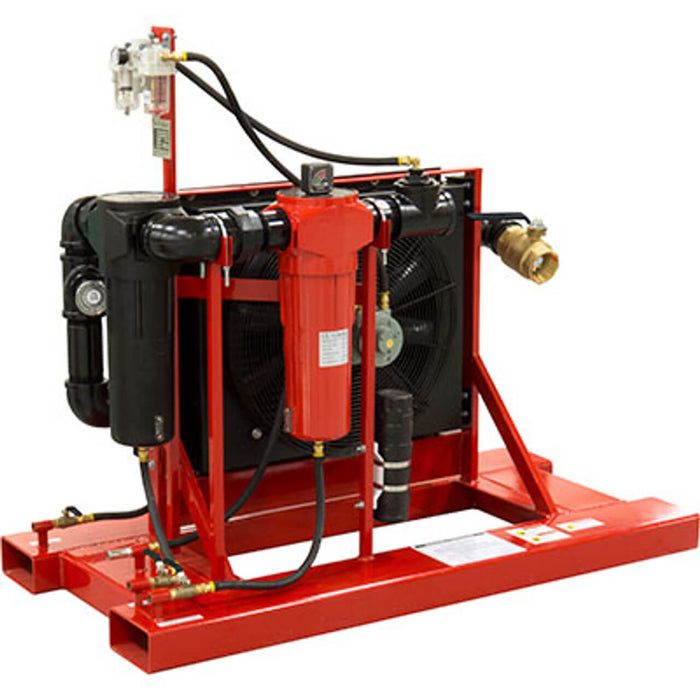

Dry Land™ Aftercooler Skid-Mounted System – 900 CFM @ 100 PSIG / 1,160 CFM @ 150 PSIG with Moisture Separator & Coalescing Filter on Powder-Coated Skid

Part Number: DLAC-900-1160
Weight: 659 lb (299 kg)

The Dry Land™ Aftercooler Skid-Mounted System (DLAC-900-1160) is a high-capacity, industrial-grade air-cooling and moisture-removal unit designed for professional abrasive blasting, coating, and pneumatic applications requiring maximum air purity.

This self-contained system includes an aftercooler, moisture separator, and coalescing filter, all integrated into a powder-coated steel skid. With a rated output of 900 CFM @ 100 PSIG or 1,160 CFM @ 150 PSIG, it delivers cool, clean, and dry compressed air without the need for electricity—ideal for mobile contractors and field operations.

Performance Ratings:

Specifications:

• Inlet Size: 3″ NPT

• Outlet Size: 3″ NPT

• Maximum Pressure: 200 PSI

• Air Motor Lubricant: ATF

• Dimensions: 64″ W × 32″ D × 54.5″ H (163 × 82 × 139 cm)

• Weight: 659 lb (299 kg)

• Frame Construction: Powder-coated steel skid

• Mounting Type: Heavy-duty skid mount

• Warranty: 5-Year Limited Warranty*

Key Features & Benefits:

• Comprehensive Air Treatment System
  • Combines aftercooler, moisture separator, and coalescing filter for complete moisture and oil removal.
  • Prevents flash rust and contamination in blasting and painting applications.

• High-Efficiency Cooling
  • Cools air to within 10°F–15°F (5.6°C–8.3°C) of ambient temperature for maximum condensation and water removal.

• Fully Pneumatic Operation
  • No electric power required—ideal for field and mobile environments.
  • Dependable air-driven design minimizes downtime and service requirements.

• Rugged Construction
  • Powder-coated steel frame resists rust and corrosion in harsh job site conditions.
  • Built to withstand continuous operation under high-pressure loads.

• Maintenance & Monitoring Convenience
  • Integrated air temperature gauge for real-time system diagnostics.
  • Quick-access filter and drain valve design for easy service.

How It Works:
The Pirate Brand® Dry Land™ Aftercooler System uses a three-stage process to cool and purify compressed air:

1. Cooling Stage: Hot air from the compressor passes through the aftercooler, reducing air temperature to near ambient levels and condensing moisture.

2. Separation Stage: Condensed liquid and water droplets are removed in the moisture separator using centrifugal and gravitational force.

3. Filtration Stage: A coalescing filter captures oil aerosols and fine particles for a clean, dry air supply ready for industrial use.
