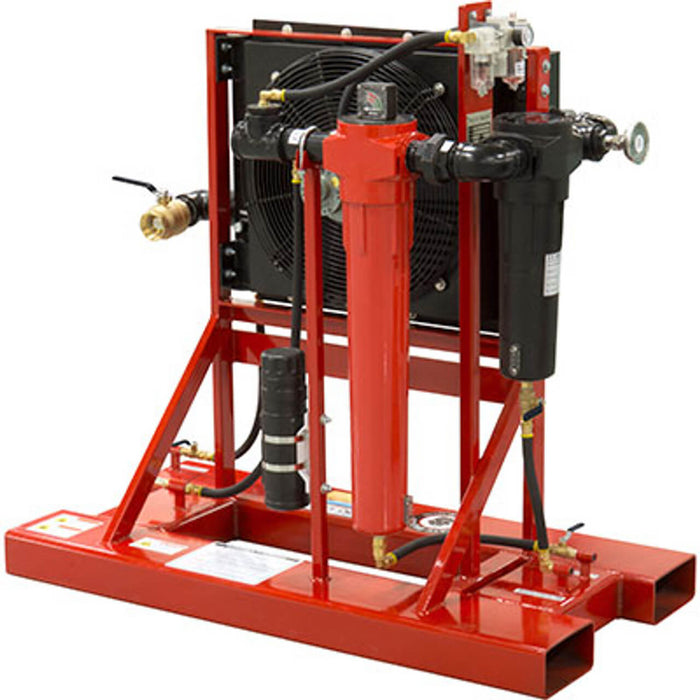

Dry Land™ Aftercooler Skid-Mounted System – 750 CFM @ 100 PSIG / 1,130 CFM @ 150 PSIG with Moisture Separator & Coalescing Filter on Powder-Coated Skid

Part Number: DLAC-750-1130
Weight: 417 lb (190 kg)

The Dry Land™ Aftercooler Skid-Mounted System (DLAC-750-1130) is a heavy-duty industrial air cooling and moisture removal solution engineered for high-capacity blasting, painting, and compressed-air operations.

This fully self-contained system integrates an aftercooler, moisture separator, and coalescing filter into a single skid-mounted frame—requiring no electrical power for operation. Built to handle up to 1,130 CFM @ 150 PSIG, it ensures consistent delivery of cool, dry, and contaminant-free air, maximizing productivity and equipment longevity in the harshest field environments.

Performance Ratings:

Specifications:

• Inlet Size: 2″ NPT

• Outlet Size: 2″ NPT

• Maximum Pressure: 200 PSI

• Air Motor Lubricant: ATF

• Dimensions: 52″ W × 26″ D × 55.5″ H (132 × 66 × 141 cm)

• Weight: 417 lb (190 kg)

• Frame Construction: Powder-coated steel skid

• Mounting Type: Skid-mounted for mobile or stationary use

• Warranty: 5-Year Limited Warranty*

Key Features & Benefits:

• Comprehensive Moisture Removal System

  • Includes aftercooler, moisture separator, and coalescing filter to eliminate water, oil, and fine contaminants.

  • Extends the life of blast pots, nozzles, and air tools while improving blasting and coating performance.

• Superior Cooling Efficiency

  • Reduces air temperature within 10°F–15°F (5.6°C–8.3°C) of ambient, condensing moisture for efficient separation.

• Completely Pneumatic Operation

  • No electricity required — ideal for mobile contractors and field applications.

  • Reliable performance in remote environments and rugged job sites.

• Heavy-Duty Skid Design

  • Built on a powder-coated industrial frame engineered for durability and corrosion resistance.

  • Provides stability and long-term use under heavy-duty conditions.

• Easy Maintenance & Monitoring

  • Equipped with air temperature gauge for quick troubleshooting.

  • Accessible filters and drain valves for simplified upkeep.

How It Works:
The Pirate Brand® Dry Land™ Aftercooler System uses a three-stage air treatment process to ensure dry, clean compressed air:

1. Cooling Stage: Warm air from the compressor enters the aftercooler, where it is cooled close to ambient temperature, causing moisture to condense.

2. Separation Stage: Condensed liquid and airborne water droplets are removed in the moisture separator using centrifugal and gravitational force.

3. Filtration Stage: A coalescing filter captures fine oil mist and particulates, delivering high-quality air to downstream equipment.

The result is clean, dry air—essential for professional abrasive blasting, surface prep, and painting operations.
