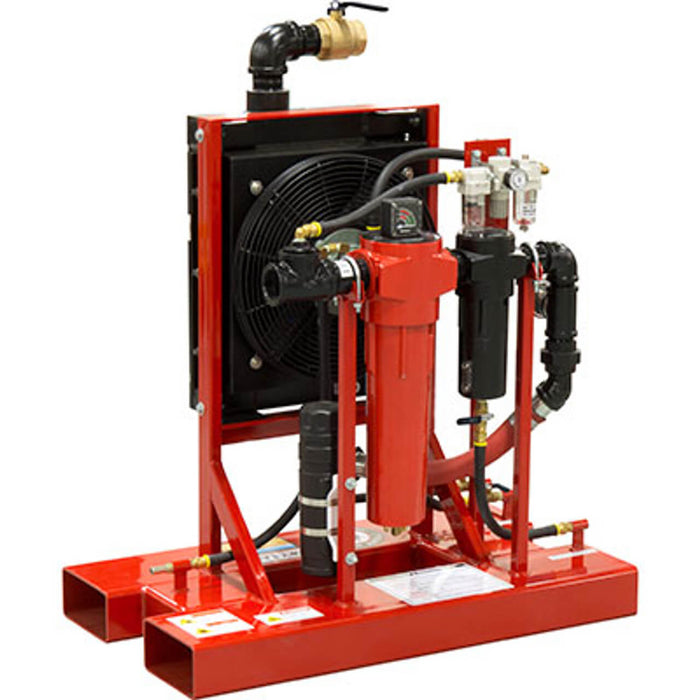

Dry Land™ Aftercooler Skid-Mounted System – 450 CFM @ 100 PSIG / 575 CFM @ 150 PSIG with Moisture Separator & Coalescing Filter on Powder-Coated Skid

Part Number: DLAC-450-575
Weight: 297 lb (135 kg)

The Dry Land™ Aftercooler Skid-Mounted System (DLAC-450-575) delivers industrial-grade air-cooling and moisture-removal performance for demanding blasting, coating, and pneumatic applications. Engineered by Pirate Brand®, this self-contained skid unit integrates an aftercooler, moisture separator, and coalescing filter into a single, rugged, powder-coated frame that requires no electricity to operate—ideal for mobile or remote job sites.

Designed to handle 450 CFM @ 100 PSIG or 575 CFM @ 150 PSIG, this system ensures dry, contaminant-free compressed air for superior surface preparation and coating quality.

Performance Ratings:

Specifications:

• Inlet Size: 2″ NPT

• Outlet Size: 1-1/2″ NPT

• Maximum Pressure: 200 PSI

• Air Motor Lubricant: ATF

• Dimensions: 38″ W × 22″ D × 46″ H (97 × 56 × 117 cm)

• Weight: 297 lb (135 kg)

• Mounting Type: Skid-mounted

• Frame Finish: Industrial powder coat for corrosion resistance

• Warranty: 5-Year Limited Warranty (see documentation)

Key Features & Benefits:

• Integrated Moisture Management System

  • Combines aftercooler, moisture separator, and coalescing filter for maximum water and oil removal.

  • Protects blasting equipment and improves coating adhesion by delivering clean, dry air.

• Efficient Air Cooling Performance

  • Reduces air temperature to within 10°F – 15°F (5.6°C – 8.3°C) of ambient air, condensing moisture for easy separation.

• Field-Ready Operation

  • No electrical power required – fully pneumatic system ideal for mobile contractors and outdoor jobsites.

  • Compact, skid-mounted design ensures stability and quick setup.

• Durable Construction

  • Heavy-duty, powder-coated frame resists rust and abrasion.

  • Built for continuous operation under industrial conditions.

• User-Friendly Maintenance

  • Includes air temperature gauge for monitoring and troubleshooting.

  • Easy-access filter and separator components simplify service and cleaning.

How It Works:
The Pirate Brand® Dry Land™ Aftercooler System uses a three-stage process to cool and purify compressed air:

1. Cooling: Hot air from the compressor passes through the aftercooler, where it is cooled to within 10–15°F of ambient temperature, condensing water vapor into liquid form.

2. Separation: The moisture separator removes condensed liquid and airborne water droplets via centrifugal and gravity forces.

3. Filtration: The coalescing filter captures oil aerosols and fine particulates, leaving clean, dry air for critical blasting and painting applications.
