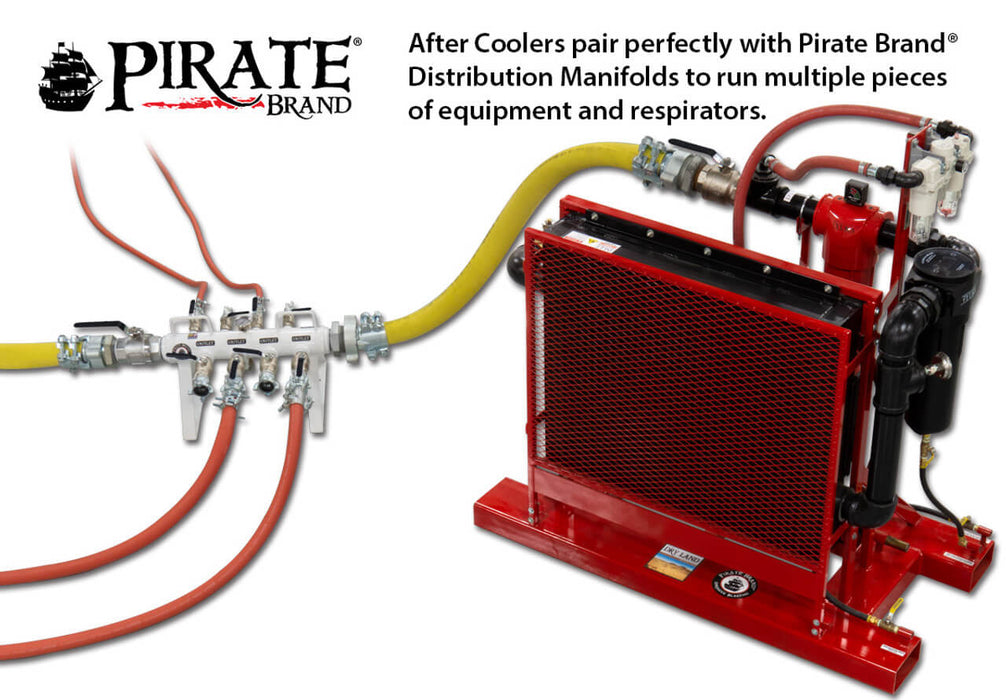

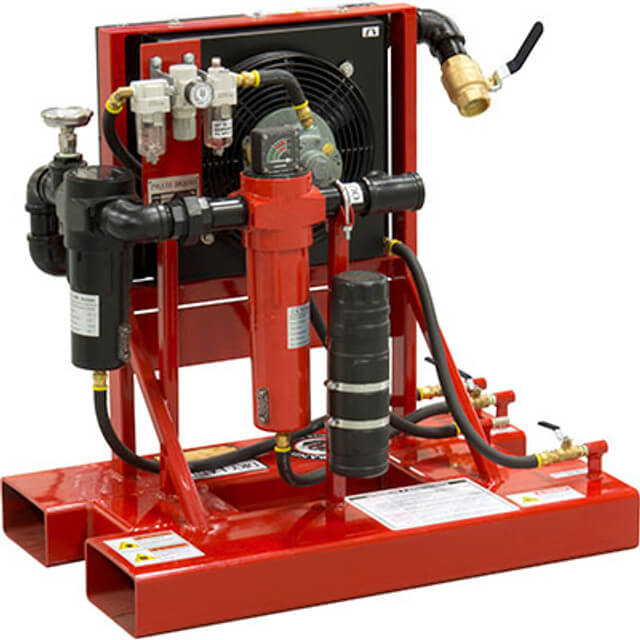

Dry Land™ Aftercooler Skid-Mounted System – 250 CFM @ 100 PSIG / 360 CFM @ 150 PSIG with Moisture Separator & Coalescing Filter, Powder-Coated Frame

Part Number: DLAC-250-360
Weight: 263 lb (120 kg)

The Dry Land™ Aftercooler Skid-Mounted System (DLAC-250-360) is an industrial-grade air cooling and moisture removal unit designed for abrasive blasting, painting, and other compressed-air applications requiring dry, clean air flow.

This system integrates an aftercooler, moisture separator, and coalescing filter on a durable powder-coated skid, providing a complete pre-filtration and cooling solution in one mobile package. Designed for performance and portability, it requires no electricity—making it ideal for mobile contractors and field operations.

Performance Ratings:

Specifications:

• Inlet Size: 1-1/2″ NPT

• Outlet Size: 1-1/2″ NPT

• Maximum Pressure: 200 PSI

• Air Motor Lubricant: ATF

• Dimensions: 35″ W × 22″ D × 33.75″ H (89 × 56 × 86 cm)

• Mounting Type: Skid-mounted

• Construction: Powder-coated steel frame

• Warranty: 5-Year Limited Warranty*

Key Features & Benefits:

• Comprehensive Moisture Control:

  • Includes aftercooler, moisture separator, and coalescing filter for maximum water and oil removal efficiency.

  • Reduces the risk of media clogging and surface contamination in blasting and coating operations.

• High-Efficiency Cooling:

  • The aftercooler drops air temperature to within 10°F–15°F of ambient, condensing moisture for easy separation.

• Field-Ready Design:

  • No electricity required — fully pneumatic and portable for mobile use.

  • Compact skid-mounted frame ensures easy handling and setup.

• Built for Durability:

  • Rugged, powder-coated frame resists corrosion and wear in industrial environments.

  • Designed for long-term use with minimal maintenance requirements.

• Maintenance-Friendly:

  • Integrated air temperature gauge aids in system monitoring and troubleshooting.

  • Easily accessible components for filter changes and drainage.

How It Works:
The Pirate Brand® Dry Land™ Aftercooler System functions through a three-stage moisture removal process:

1. Cooling: Hot compressed air first passes through the aftercooler, reducing air temperature by 10–15°F (5.6–8.3°C) relative to ambient conditions, condensing water vapor.

2. Separation: The cooled, moisture-laden air enters the moisture separator, where water droplets are removed by centrifugal and gravity separation.

3. Filtration: Finally, the air flows through a coalescing filter that eliminates oil and fine contaminants, ensuring dry, clean air output.

The result is consistent, high-quality compressed air suitable for precision blasting, coating, or pneumatic system use.
