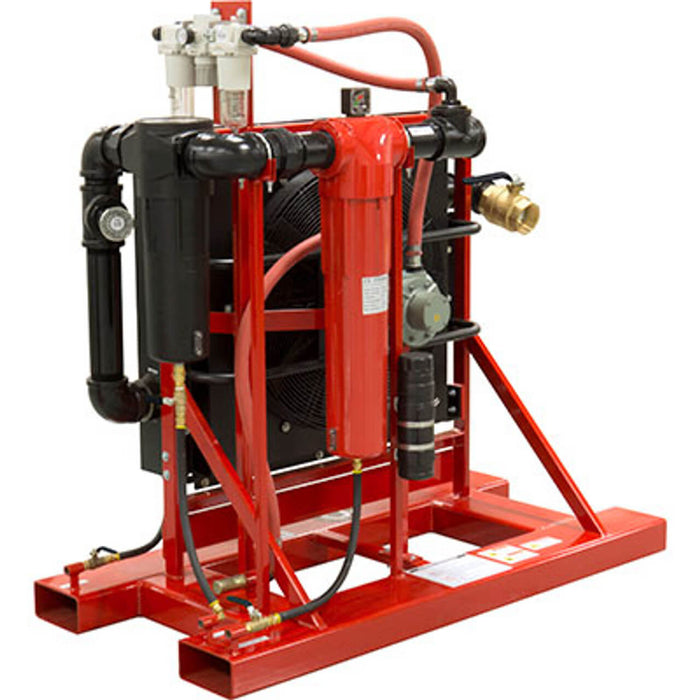

Dry Land™ Aftercooler Skid-Mounted System – 1,600 CFM @ 100 PSIG / 2,300 CFM @ 150 PSIG with Moisture Separator & Coalescing Filter on Powder-Coated Skid

Part Number: DLAC-1600-2300
Weight: 844 lb (383 kg)

The Dry Land™ Aftercooler Skid-Mounted System (DLAC-1600-2300) is a heavy-duty industrial-grade air cooling and moisture removal solution designed for large-scale abrasive blasting, coating, and compressed air systems. This system delivers exceptional air quality by removing moisture, oil, and particulates from the compressed air stream—ensuring clean, dry air for high-volume industrial operations.

This fully integrated package includes an aftercooler, moisture separator, and coalescing filter mounted on a powder-coated steel skid. Built to handle up to 1,600 CFM @ 100 PSIG or 2,300 CFM @ 150 PSIG, it’s engineered for maximum performance, durability, and reliability—all without the need for electrical power.

Performance Ratings:

Specifications:

• Inlet Size: 3″ NPT

• Outlet Size: 3″ NPT

• Maximum Pressure: 200 PSI

• Air Motor Lubricant: ATF

• Dimensions: 64″ W × 32″ D × 62.5″ H (163 × 82 × 159 cm)

• Weight: 844 lb (383 kg)

• Mounting Type: Heavy-duty skid-mounted system

• Frame Finish: Industrial-grade powder-coated steel

• Warranty: 5-Year Limited Warranty*

Key Features & Benefits:

• Comprehensive Moisture Removal

  • Combines an aftercooler, moisture separator, and coalescing filter in one compact unit.

  • Effectively removes water, oil, and contaminants to deliver clean, dry air.

• High-Capacity Cooling Efficiency

  • Reduces compressed air temperature to within 10°F–15°F (5.6°C–8.3°C) of ambient air.

  • Condenses moisture for efficient drainage and moisture control.

• No Electricity Required

  • Pneumatic design ensures full operation without electrical power.

  • Ideal for mobile contractors and remote-site blasting or coating projects.

• Industrial Durability

  • Powder-coated frame resists corrosion, abrasion, and harsh environmental conditions.

  • Engineered for continuous high-capacity use in demanding job sites.

• Easy Maintenance & Monitoring

  • Built-in air temperature gauge for quick diagnostics.

  • Accessible filters and drain valves for simplified cleaning and maintenance.

How It Works:
The Pirate Brand® Dry Land™ Aftercooler System uses a proven three-stage process for superior compressed air drying:

1. Cooling Stage: Hot compressed air enters the aftercooler and is cooled to near-ambient temperatures, causing moisture to condense.

2. Separation Stage: The moisture separator removes condensed water and airborne droplets using centrifugal and gravitational force.

3. Filtration Stage: The coalescing filter captures fine oil aerosols and particulates, delivering clean, dry air for industrial applications.
