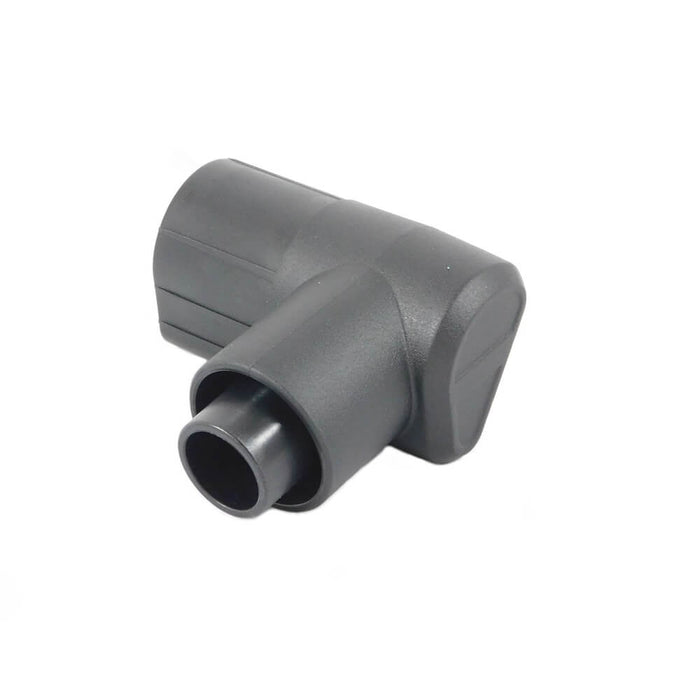

DeWalt / Porter-Cable 5140090-45 Dust Collection Adaptor – Genuine OEM Replacement Planer Vacuum Adapter
Part Number: 5140090-45
Category: Power Tool Parts & Accessories → Planer Parts → Dust Collection Adapters
Type: DeWalt / Porter-Cable 5140090-45 Dust Collection Adaptor – Genuine OEM Replacement Planer Vacuum Adapter
The DeWalt / Porter-Cable 5140090-45 Dust Collection Adaptor is a genuine OEM replacement vacuum adapter designed for compatible DeWalt portable hand planers. This durable plastic adaptor attaches to the planer's chip discharge port, allowing a compatible vacuum hose or dust collection system to be connected for efficient chip and dust removal during planing. Manufactured to original equipment specifications, it provides a direct-fit replacement for damaged or missing adapters, helping maintain a cleaner workspace and improve chip evacuation.
Key Features & Benefits
- Part Number: 5140090-45
- Genuine OEM DeWalt / Porter-Cable replacement part
- Replacement dust collection adaptor for portable hand planers
- Connects the planer to a compatible vacuum or dust collection system
- Helps reduce airborne wood chips and dust
- Improves chip evacuation during planing
- Durable molded plastic construction
- Direct-fit OEM replacement
- Manufactured to original equipment specifications
Technical Specifications
Part Number: 5140090-45
Manufacturer: DeWalt / Porter-Cable
Product Type: Dust Collection Adaptor
Material: Molded Plastic
Application: Portable Hand Planer Dust Collection
OEM Part: Yes
Quantity: Sold Individually
Compatible Applications
The DeWalt / Porter-Cable 5140090-45 Dust Collection Adaptor fits the following planers:
DeWalt
- D26677K Hand Planer (Type 1)
- D26676 Hand Planer (Type 1)
Always verify your planer model, type number, and original part number before ordering to ensure proper compatibility.
Function of the Dust Collection Adaptor
The 5140090-45 Dust Collection Adaptor is an important part of the planer's dust extraction system. It helps to:
- Connect the planer to a shop vacuum or dust collector
- Direct wood chips away from the work area
- Reduce airborne dust during planing
- Improve visibility while working
- Minimize cleanup after use
- Support efficient chip evacuation for smoother operation
Using a genuine OEM replacement adaptor helps ensure a secure connection and dependable dust collection performance.
Common Signs Replacement Is Needed
Replace the dust collection adaptor if you notice:
- Cracked or broken adaptor body
- Loose fit on the planer or vacuum hose
- Missing adaptor
- Reduced dust collection efficiency
- Chips escaping around the dust port
- Damaged or worn connection points
A damaged adaptor can reduce chip evacuation, increase airborne dust, and create a mess in the work area.
Installation & Service Notes
Disconnect the planer from its power source before performing maintenance.
Remove any damaged 5140090-45 Dust Collection Adaptor from the chip discharge port and clean away accumulated wood chips or debris. Inspect the discharge opening for obstructions before installing the replacement adaptor. Press the adaptor firmly into place according to the manufacturer's instructions, then attach a compatible vacuum hose or dust collection system. Verify that the adaptor fits securely and that airflow is unobstructed before operating the planer.
Important: Always verify your planer model, type number, and original part number before ordering. Empty the connected vacuum or dust collector regularly to maintain optimal airflow. Use genuine OEM DeWalt replacement parts to ensure proper fit, reliable dust collection, and long-term planer performance.
Maintenance Recommendations
- Clean the adaptor after each use to prevent chip buildup.
- Inspect for cracks or loose connections before operating the planer.
- Keep the chip discharge port free of obstructions.
- Empty the vacuum or dust collector regularly to maintain airflow.
- Replace damaged adaptors promptly to preserve dust collection efficiency.
- Use genuine OEM replacement parts to maintain factory fit, reliable chip evacuation, and long-term planer performance.
