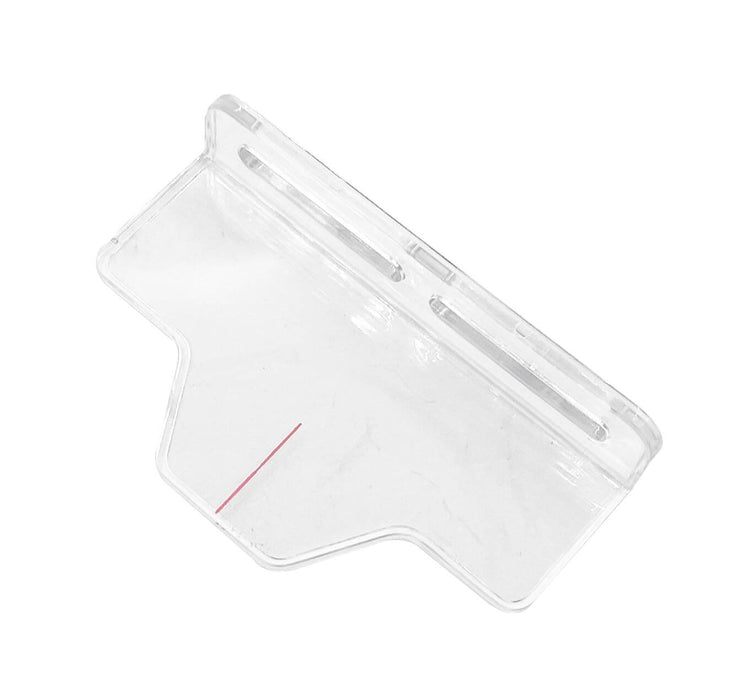

DeWalt 5140032-07 Rip Fence Pointer – Genuine OEM Replacement Table Saw Rip Scale Pointer

Part Number: 5140032-07
Category: Power Tool Parts & Accessories → Table Saw Parts → Rip Fence Components
Type: DeWalt 5140032-07 Rip Fence Pointer – Genuine OEM Replacement Table Saw Rip Scale Pointer

The DeWalt 5140032-07 Rip Fence Pointer is a genuine OEM replacement rip scale indicator designed for compatible DeWalt table saws. This precision-molded pointer mounts to the rip fence assembly and aligns with the saw's rip scale, allowing users to accurately set fence positions for consistent, repeatable cuts. Manufactured to original equipment specifications, it provides a direct-fit replacement for cracked, damaged, faded, or missing pointers, helping restore factory cutting accuracy and fence alignment.

Key Features & Benefits

• Part Number: 5140032-07
• Genuine OEM DeWalt replacement part
• Replacement rip fence scale pointer
• Provides accurate visual reference for rip fence positioning
• Helps improve cutting accuracy and repeatability
• Durable molded plastic construction
• Easy direct-fit installation
• Manufactured to original equipment specifications

Technical Specifications

Part Number: 5140032-07

Manufacturer: DeWalt

Product Type: Rip Fence Pointer

Material: Molded Plastic

OEM Part: Yes

Quantity: Sold Individually

Compatible Applications

The DeWalt 5140032-07 Rip Fence Pointer fits the following table saw models:

DeWalt

• DCS7485T1 60V FLEXVOLT Table Saw with Battery (Type 1)
• DCS7485B 60V FLEXVOLT Table Saw Bare Tool (Type 1)
• DW744X (Type 6)
• DW745 (Type 1)
• DW745 (Type 2)
• DW745 (Type 3)
• DW745 (Type 20)
• DW745-AR (Type 1)
• DW745-AR (Type 3)
• DW745-B2 (Type 1)
• DW745-B2 (Type 3)
• DWE7480 Table Saw (Type 1)
• DWE7480 Table Saw (Type 20)

Always verify your table saw model, type number, and original part number before ordering to ensure proper compatibility.

Function of the Rip Fence Pointer

The 5140032-07 Rip Fence Pointer is an important component of the rip fence measurement system. It helps to:

• Indicate the fence position on the rip scale
• Improve measurement accuracy when setting rip widths
• Support consistent and repeatable cuts
• Reduce measuring errors during fence adjustments
• Restore the table saw's original fence indication system

Using a genuine OEM replacement pointer helps ensure proper alignment, accurate readings, and dependable cutting performance.

Common Signs Replacement Is Needed

Replace the rip fence pointer if you notice:

• Cracked or broken pointer
• Missing pointer
• Faded or difficult-to-read indicator
• Pointer no longer aligns with the rip scale
• Loose mounting
• Inconsistent rip width measurements

A damaged or misaligned pointer can make fence adjustments less accurate, resulting in inconsistent cuts and additional setup time.

Installation & Service Notes

Disconnect the table saw from the power source before performing maintenance.

Remove the damaged 5140032-07 Rip Fence Pointer from the rip fence assembly according to the manufacturer's service instructions. Clean the mounting area and inspect the rip fence for wear or damage before installing the replacement pointer. Secure the new pointer in its original position and verify that it aligns correctly with the rip scale. Adjust the pointer if necessary after confirming the fence is properly calibrated, then test the fence movement and measurement accuracy before returning the saw to service.

Important: Always verify your table saw model, type number, and original part number before ordering. After replacing the pointer, check rip fence calibration against the blade and measuring scale to ensure accurate cuts. Use genuine OEM DeWalt replacement parts to maintain factory fit, precise fence alignment, and reliable cutting performance.

Maintenance Recommendations

• Keep the rip scale and pointer clean for easy visibility.
• Periodically verify rip fence calibration.
• Inspect the pointer for cracks or loose mounting hardware.
• Avoid striking or placing heavy objects against the rip fence.
• Recalibrate the fence after major service or transport.
• Use genuine OEM replacement parts to maintain factory accuracy, proper fit, and long-term table saw performance.
