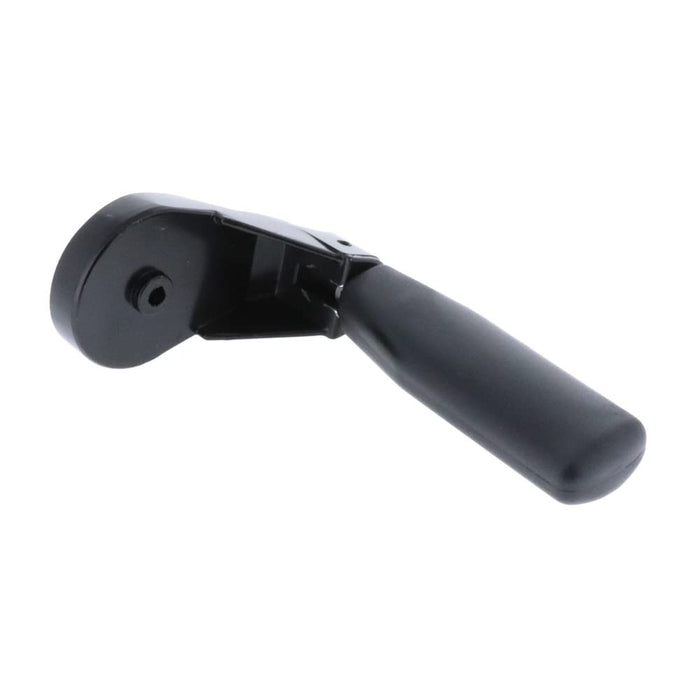

DeWalt 285985-00 Handle Assembly – Genuine OEM Replacement Planer Thickness Adjustment Handle

Part Number: 285985-00
Category: Power Tool Parts & Accessories → Planer Parts → Thickness Adjustment Handles
Type: DeWalt 285985-00 Handle Assembly – Genuine OEM Replacement Planer Thickness Adjustment Handle

The DeWalt 285985-00 Handle Assembly is a genuine OEM replacement thickness adjustment handle designed for compatible DeWalt portable planers. Located on the top of the planer, this folding handle is used to raise and lower the cutter head, allowing precise adjustment of the finished workpiece thickness. Manufactured to original equipment specifications, it provides a direct-fit replacement for broken, cracked, or damaged adjustment handles, helping restore smooth, accurate depth adjustments and dependable planer performance. The scale plate disc is sold separately as Part #285986-00.

Key Features & Benefits

• Part Number: 285985-00
• Genuine OEM DeWalt replacement part
• Replacement planer thickness adjustment handle
• Raises and lowers the cutter head for precise thickness adjustment
• Folding design for convenient storage
• Restores smooth depth adjustment operation
• Durable OEM construction
• Direct-fit OEM replacement
• Manufactured to original equipment specifications

Technical Specifications

Part Number: 285985-00

Manufacturer: DeWalt

Product Type: Thickness Adjustment Handle Assembly

OEM Part: Yes

Application: Planer Cutter Head Height Adjustment System

Compatible Applications

The DeWalt 285985-00 Handle Assembly fits select:

• DeWalt DW733 12-1/2" Portable Planer (Type 1)
• DeWalt DW733-B2 Planer (Type 2)

Always verify your planer model, type number, and original part number before ordering to ensure proper compatibility.

Function of the Thickness Adjustment Handle

The DeWalt 285985-00 Handle Assembly is used to adjust the cutter head height, allowing the operator to set the desired planing depth. It helps to:

• Raise and lower the cutter head
• Set the finished workpiece thickness
• Make precise depth adjustments
• Fold down for compact storage
• Restore smooth thickness adjustment
• Maintain accurate and consistent planing results

Using a genuine OEM replacement handle assembly helps ensure proper fit, dependable operation, and long-term planer performance.

Common Signs Replacement Is Needed

Replace the handle assembly if you notice:

• Broken or cracked adjustment handle
• Difficulty adjusting cutter head height
• Loose or damaged handle hub
• Handle no longer folds properly
• Excessive wear affecting operation
• Missing adjustment handle

A damaged thickness adjustment handle can make it difficult to accurately set cutting depth and reduce overall planer usability.

Installation & Service Notes

Disconnect the planer from the power source before performing any repairs.

Remove the existing 285985-00 Handle Assembly according to the manufacturer's service instructions. Inspect the adjustment shaft, mounting hardware, and height adjustment mechanism for wear or damage before installing the replacement handle. Secure the new handle using the original hardware and verify smooth cutter head movement throughout its full adjustment range. If needed, install the 285986-00 Scale Plate separately, as it is not included with the handle assembly.

Important: Always verify your planer model, type number, and original part number before ordering. Use genuine OEM DeWalt replacement components to ensure proper fit, accurate thickness adjustment, and long-term planer reliability.

Maintenance Recommendations

• Keep the adjustment mechanism clean and free of wood chips.
• Inspect the handle regularly for cracks or looseness.
• Verify smooth cutter head movement during routine maintenance.
• Avoid forcing the handle beyond its normal adjustment range.
• Replace damaged handles promptly to maintain accurate thickness settings.
• Use genuine OEM replacement parts to maintain factory adjustment accuracy, smooth operation, and long-term planer performance.
