Delco ELM3080041DNG Eliminator XL Series Electric Hot Water Pressure Washer – 3000 PSI, 8.0 GPM, 15 HP, 460V 3-Phase

Part Number: 65247
Category: Commercial Electric Hot Water Pressure Washers
Type: Eliminator XL Series Natural Gas Hot Water Pressure Washer – 3000 PSI, 8.0 GPM, 15 HP, 460V 3-Phase

The Delco ELM3080041DNG Eliminator XL Series Electric Hot Water Pressure Washer is a high-capacity stationary cleaning system delivering 3000 PSI at 8.0 GPM. Designed for demanding commercial and industrial installations, the Eliminator XL combines electric-powered pressure washing with a powerful 750,000 BTU natural gas-fired heating system for high-volume hot-water cleaning.

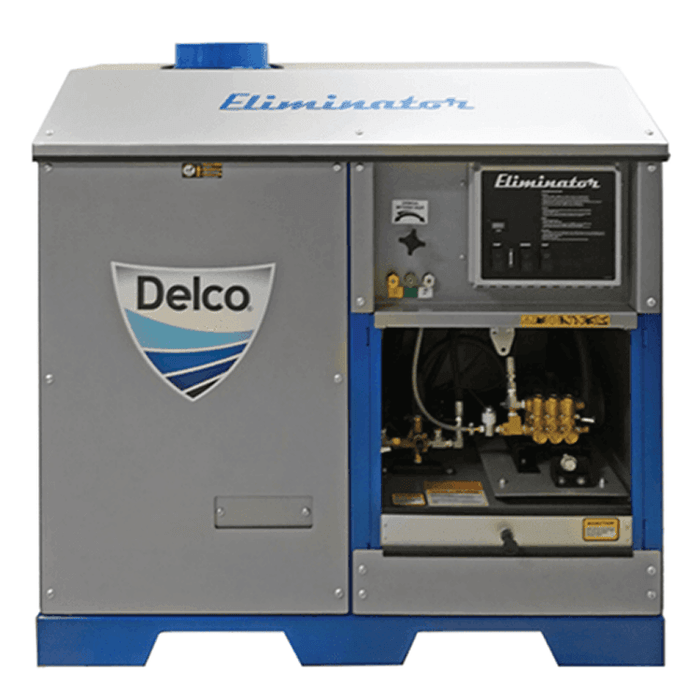

Image shown for illustrative purposes only

Product Specifications

• Part Number: 65247
• Brand: Delco
• Model Number: ELM3080041DNG
• Series: Eliminator XL
• Product Type: Stationary Electric Hot Water Pressure Washer
• Pressure Rating: 3000 PSI
• Flow Rate: 8.0 GPM
• Motor: 15 HP
• Motor Speed: 1750 RPM
• Voltage: 460V
• Phase: 3-Phase (3Ø)
• Amperage: 18A
• Pump: UDOR Industrial Triplex
• Drive Type: Belt Drive
• Burner Fuel: Natural Gas
• Burner Rating: 750,000 BTU
• Heating Coil: 1/2" Schedule 80 Vertical Coil
• Hose: 3/8" x 50' Steel-Braided Armor Hose
• Frame: Powder-Coated for Corrosion Resistance
• Panels: Corrosion-Resistant Stainless Steel Vented Panels
• Dimensions: 64" L x 36" W x 61" H
• Product Weight: 1,660 lbs.
• Configuration: Stationary
• Condition: New

Features & Benefits

• Delivers 3000 PSI at 8.0 GPM for high-volume commercial and industrial cleaning
• Heavy-duty 15 HP electric motor
• 460V / 3-phase / 18A electrical configuration
• Slow-speed 1750 RPM operation
• UDOR industrial triplex pump
• Forged brass pump manifold
• Ceramic-coated plunger sleeves
• Thermal relief valve
• External unloader with bypass hose
• Heavy-duty belt-drive system
• Powerful 750,000 BTU natural gas-fired heating system
• Hot-water operation helps break down grease, oil, grime, and stubborn contaminants
• NEMA 4X electrical enclosure for demanding wash environments
• High-pressure soap system with metering valve
• Time-delay shutdown
• Remote operating box ready-wired
• Integrated float tank
• Heavy-duty 1/2" Schedule 80 vertical heating coil
• Roll-down locking doors help protect internal components
• Corrosion-resistant stainless steel vented panels
• Designed for permanent high-volume commercial and industrial installations

Unit Includes

• 3/8" x 50' Steel-Braided Armor Hose
• Trigger Gun
• Lance
• 15° Quick-Connect Nozzle
• 25° Quick-Connect Nozzle
• 40° Quick-Connect Nozzle
• High-Pressure Soap Injector

Applications

• Industrial wash bays
• Fleet and commercial vehicle washing
• Heavy equipment cleaning
• Manufacturing facilities
• Truck and transportation facilities
• Equipment maintenance operations
• Grease and oil removal
• Commercial facility cleaning
• Agricultural equipment washing
• Warehouse and plant maintenance
• High-volume stationary pressure washing
• Permanent industrial cleaning installations

Limited Warranty

• 10-Year Frame Warranty
• 5-Year Pump Warranty
• 1-Year Motor Warranty

Important Notes

• Verify part number 65247 and model ELM3080041DNG before ordering
• Rated for 3000 PSI at 8.0 GPM
• Motor is rated at 15 HP / 460V / 3Ø / 18A
• This unit should be categorized under Electric Pressure Washers; natural gas powers the water-heating burner
• Equipped with an UDOR industrial triplex pump and belt drive
• Uses natural gas for the hot-water heating system
• Burner is rated at 750,000 BTU
• Confirm an adequate continuous water supply capable of supporting 8.0 GPM
• Verify voltage, phase, amperage, circuit protection, and wiring requirements before installation
• Natural gas supply, regulator, combustion air, exhaust, and venting must comply with applicable codes and manufacturer requirements
• Use only properly pressure- and temperature-rated hoses, fittings, spray guns, nozzles, and accessories
• Never operate the pump without an adequate water supply
• Disconnect electrical power, relieve system pressure, and allow heated components to cool before servicing
• Professional installation is recommended for permanent electrical and natural-gas connections
• Product images may vary slightly from the actual configuration
