Delco ELM3080041CNG Eliminator XL Series Electric Hot Water Pressure Washer – 3000 PSI, 8.0 GPM, 15 HP, 230V 3-Phase

Part Number: 65246
Category: Commercial Electric Hot Water Pressure Washers
Type: Eliminator XL Series Natural Gas Hot Water Pressure Washer – 3000 PSI, 8.0 GPM, 15 HP, 230V 3-Phase

The Delco ELM3080041CNG Eliminator XL Series Electric Hot Water Pressure Washer is a high-capacity stationary cleaning system engineered for demanding commercial and industrial applications. It delivers 3000 PSI at 8.0 GPM and combines electric-powered pressure washing with a powerful 750,000 BTU natural gas-fired heating system. delco-cleaning

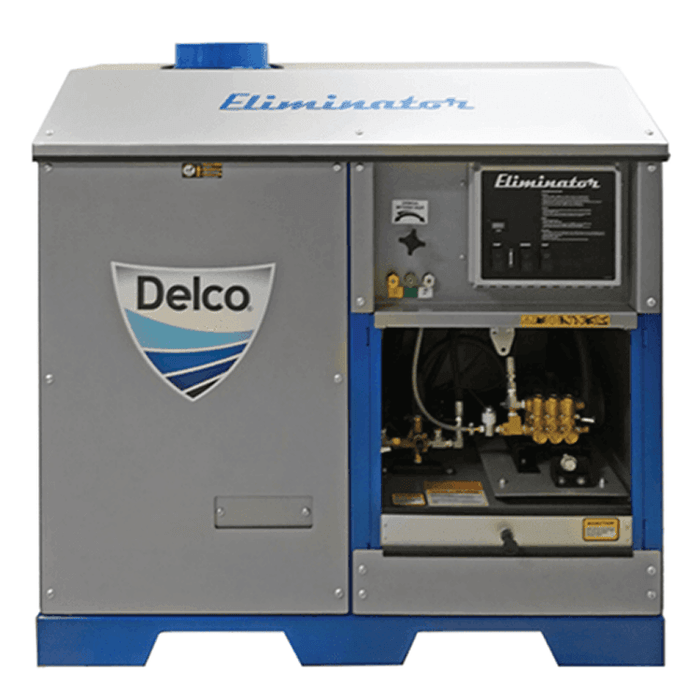

Image shown for illustrative purposes only

Product Specifications

• Part Number: 65246
• Brand: Delco
• Model Number: ELM3080041CNG
• Series: Eliminator XL
• Product Type: Stationary Electric Hot Water Pressure Washer
• Pressure Rating: 3000 PSI
• Flow Rate: 8.0 GPM
• Motor: 15 HP
• Motor Speed: 1750 RPM
• Voltage: 230V
• Phase: 3-Phase (3Ø)
• Amperage: 36A
• Pump: UDOR Industrial Triplex
• Drive Type: Belt Drive
• Burner Fuel: Natural Gas
• Burner Rating: 750,000 BTU
• Heating Coil: 1/2" Schedule 80 Vertical Coil
• Hose: 3/8" x 50' Steel-Braided Armor Hose
• Frame: Powder-Coated for Corrosion Resistance
• Panels: Corrosion-Resistant Stainless Steel Vented Panels
• Dimensions: 64" L x 36" W x 61" H
• Product Weight: 1,660 lbs.
• Configuration: Stationary
• Condition: New delco-cleaning

Features & Benefits

• Delivers 3000 PSI at 8.0 GPM for high-volume professional cleaning
• Heavy-duty 15 HP electric motor
• 230V / 3-phase / 36A electrical configuration
• 1750 RPM slow-speed operation
• UDOR industrial triplex pump
• Forged brass pump manifold
• Ceramic-coated plunger sleeves
• Thermal relief valve
• External unloader with bypass hose
• Heavy-duty belt-drive system
• Powerful 750,000 BTU natural gas-fired heating system
• NEMA 4X electrical enclosure with rocker switch, hour meter, and soap control switch
• High-pressure soap system with metering valve
• Time-delay shutdown
• Remote operating box ready-wired
• Integrated float tank
• Heavy-duty 1/2" Schedule 80 vertical heating coil
• Roll-down locking doors help protect internal components
• Movable water inlet/outlet point with front, side, or rear positioning
• Powder-coated frame with corrosion-resistant stainless steel vented panels
• Wall-mount capability for permanent installations delco-cleaning

Unit Includes

• 3/8" x 50' Steel-Braided Armor Hose
• Trigger Gun
• Lance
• 15° Quick-Connect Nozzle
• 25° Quick-Connect Nozzle
• 40° Quick-Connect Nozzle
• High-Pressure Soap Injector delco-cleaning

Applications

• Industrial wash bays
• Fleet and commercial vehicle washing
• Heavy equipment cleaning
• Manufacturing plants
• Truck and transportation facilities
• Equipment maintenance operations
• Grease and oil removal
• Commercial facility cleaning
• Agricultural equipment washing
• Warehouse and plant maintenance
• High-volume stationary cleaning systems
• Professional facilities requiring continuous hot-water cleaning capability

Limited Warranty

• 10-Year Frame Warranty
• 5-Year Pump Warranty
• 1-Year Motor Warranty delco-cleaning

Important Notes

• Verify part number 65246 and model ELM3080041CNG before ordering
• Rated for 3000 PSI at 8.0 GPM
• Motor is rated at 15 HP / 230V / 3Ø / 36A
• This model belongs under Electric Pressure Washers; natural gas is used for the water-heating burner
• Equipped with an UDOR industrial triplex pump and belt drive
• Uses natural gas for the hot-water heating system
• Burner is rated at 750,000 BTU
• Manufacturer-listed product weight is 1,660 lbs.
• Confirm an adequate continuous water supply capable of supporting 8.0 GPM
• Verify voltage, phase, amperage, circuit protection, and wiring requirements before installation
• Natural gas supply, regulator, combustion air, exhaust, and venting must comply with applicable codes and manufacturer requirements
• Use only properly pressure- and temperature-rated hoses, fittings, spray guns, nozzles, and accessories
• Never operate the pump without an adequate water supply
• Disconnect electrical power, relieve system pressure, and allow heated components to cool before servicing
• Professional installation is recommended for permanent electrical and natural-gas connections
• Product images may vary slightly from the actual configuration
