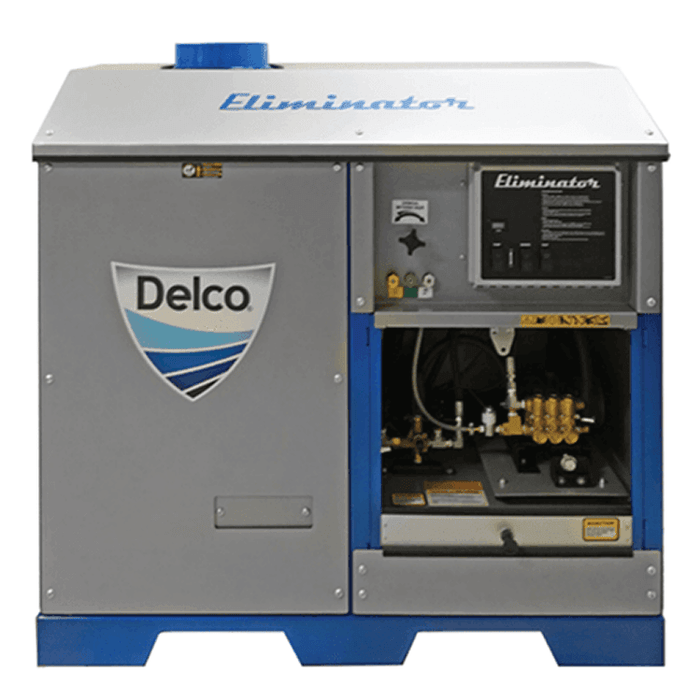

Delco ELM3050041CNG Eliminator Series Electric Hot Water Pressure Washer – 3000 PSI, 5.0 GPM, 10 HP, 230V 3-Phase

Part Number: 65190
Category: Commercial Electric Hot Water Pressure Washers
Type: Eliminator Series Natural Gas Hot Water Pressure Washer – 3000 PSI, 5.0 GPM, 10 HP, 230V 3-Phase

The Delco ELM3050041CNG Eliminator Series Electric Hot Water Pressure Washer is a stationary industrial cleaning system delivering 3000 PSI at 5.0 GPM. Designed for commercial and industrial installations, it combines an electric motor-driven pressure washer with a natural gas-fired heating system for effective hot-water cleaning of grease, oil, grime, and other difficult buildup.

Product Specifications

• Part Number: 65190
• Brand: Delco
• Model Number: ELM3050041CNG
• Series: Eliminator
• Product Type: Stationary Electric Hot Water Pressure Washer
• Pressure Rating: 3000 PSI
• Flow Rate: 5.0 GPM
• Motor: 10 HP
• Motor Speed: 1750 RPM
• Voltage: 230V
• Phase: 3-Phase (3Ø)
• Amperage: 25A
• Pump: UDOR Industrial Triplex
• Drive Type: Belt Drive
• Burner Fuel: Natural Gas
• Burner Rating: 380,000 BTU
• Heating Coil: 1/2" Schedule 80 Vertical Coil
• Hose: 3/8" x 50' Steel-Braided Armor Hose
• Frame: Powder-Coated for Corrosion Resistance
• Panels: Corrosion-Resistant Stainless Steel Vented Panels
• Configuration: Stationary
• Condition: New

Features & Benefits

• Delivers 3000 PSI at 5.0 GPM for professional hot-water cleaning
• Heavy-duty 10 HP electric motor
• 230V / 3-phase / 25A electrical configuration
• Slow-speed 1750 RPM operation
• UDOR industrial triplex pump
• Forged brass pump manifold
• Ceramic-coated plunger sleeves
• Thermal relief valve
• External unloader with bypass hose
• Heavy-duty belt-drive system
• Powerful 380,000 BTU natural gas-fired burner
• Hot-water operation helps break down grease, oil, grime, and stubborn contaminants
• NEMA 4X electrical enclosure designed for demanding wash environments
• High-pressure soap system with metering control
• Time-delay shutdown system
• Integrated float tank
• Heavy-duty 1/2" Schedule 80 vertical heating coil
• Protective enclosed cabinet design
• Corrosion-resistant stainless steel vented panels
• Designed for permanent commercial and industrial installations

Unit Includes

• 3/8" x 50' Steel-Braided Armor Hose
• Trigger Gun
• Lance
• 15° Quick-Connect Nozzle
• 25° Quick-Connect Nozzle
• 40° Quick-Connect Nozzle
• High-Pressure Soap Injector

Applications

• Industrial wash bays
• Fleet and vehicle washing
• Heavy equipment cleaning
• Manufacturing facilities
• Automotive and truck service facilities
• Equipment maintenance areas
• Grease and oil removal
• Commercial facility cleaning
• Agricultural equipment washing
• Warehouse and plant maintenance
• Permanent stationary cleaning systems

Limited Warranty

• 10-Year Frame Warranty
• 5-Year Pump Warranty
• 1-Year Motor Warranty

Important Notes

• Verify part number 65190 and model ELM3050041CNG before ordering
• Rated for 3000 PSI at 5.0 GPM
• Motor is rated at 10 HP / 230V / 3Ø / 25A
• This unit should be categorized as an Electric Pressure Washer; natural gas is used for the water-heating burner
• Equipped with an UDOR industrial triplex pump and belt drive
• Uses natural gas for the hot-water heating system
• Burner is rated at 380,000 BTU
• Confirm an adequate continuous water supply capable of supporting the required 5.0 GPM
• Verify voltage, phase, amperage, circuit protection, and wiring requirements before installation
• Natural gas supply, regulator, combustion air, exhaust, and venting must comply with applicable codes and manufacturer requirements
• Use only properly pressure- and temperature-rated hoses, fittings, spray guns, nozzles, and accessories
• Never operate the pump without an adequate water supply
• Disconnect electrical power, relieve system pressure, and allow heated components to cool before servicing
• Professional installation is recommended for permanent electrical and natural-gas connections
• Product images may vary slightly from the actual configuration
