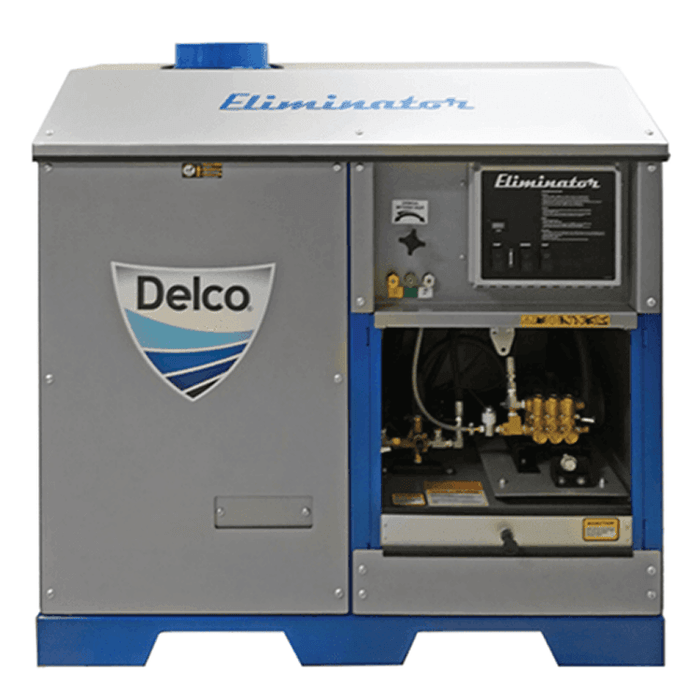

Delco ELM3040041BNG Eliminator Series Electric Hot Water Pressure Washer – 3000 PSI, 4.0 GPM, 7.5 HP, 208/230V Single-Phase

Part Number: 65184
Category: Commercial Electric Hot Water Pressure Washers
Type: Eliminator Series Natural Gas Hot Water Pressure Washer – 3000 PSI, 4.0 GPM, 7.5 HP, 208/230V Single-Phase

The Delco ELM3040041BNG Eliminator Series Electric Hot Water Pressure Washer is a stationary industrial cleaning system delivering 3000 PSI at 4.0 GPM. It combines a 7.5 HP electric motor with a 380,000 BTU natural gas-fired heating system, providing high-pressure hot-water cleaning without a gasoline-powered engine.

Product Specifications

• Part Number: 65184
• Brand: Delco
• Model Number: ELM3040041BNG
• Series: Eliminator
• Product Type: Stationary Electric Hot Water Pressure Washer
• Pressure Rating: 3000 PSI
• Flow Rate: 4.0 GPM
• Motor: 7.5 HP
• Motor Speed: 1750 RPM
• Voltage: 208/230V Selectable
• Phase: Single-Phase (1Ø)
• Amperage: 29A
• Pump: UDOR Industrial Triplex
• Drive Type: Belt Drive
• Burner Fuel: Natural Gas
• Burner Rating: 380,000 BTU
• Heating Coil: 1/2" Schedule 80 Vertical Coil
• Hose: 3/8" x 50' Steel-Braided Armor Hose
• Frame: Powder-Coated for Corrosion Resistance
• Panels: Corrosion-Resistant Stainless Steel Vented Panels
• Dimensions: 52" L x 36" W x 51" H
• Product Weight: 860 lbs.
• Configuration: Stationary
• Condition: New delco-cleaning

Features & Benefits

• Delivers 3000 PSI at 4.0 GPM for demanding commercial and industrial cleaning
• Heavy-duty 7.5 HP electric motor
• Selectable 208V or 230V single-phase operation
• 29A electrical rating
• Slow-speed 1750 RPM operation
• UDOR industrial triplex pump
• Forged brass pump manifold
• Ceramic-coated plunger sleeves
• Thermal relief valve
• External unloader with bypass hose
• Belt-drive system designed for professional-duty operation
• Powerful 380,000 BTU natural gas heating system
• NEMA 4X electrical enclosure with rocker switch, hour meter, and soap control switch
• High-pressure soap system with metering valve
• Time-delay shutdown
• Remote operating box ready-wired
• Integrated float tank
• Heavy-duty 1/2" Schedule 80 vertical heating coil
• Roll-down locking doors help protect internal components
• Movable water inlet/outlet connection with front, side, or rear positioning
• Corrosion-resistant stainless steel vented panels
• Wall-mount capability for permanent installations delco-cleaning

Unit Includes

• 3/8" x 50' Steel-Braided Armor Hose
• Trigger Gun
• Lance
• 15° Quick-Connect Nozzle
• 25° Quick-Connect Nozzle
• 40° Quick-Connect Nozzle
• High-Pressure Soap Injector delco-cleaning

Applications

• Industrial wash bays
• Fleet and vehicle washing
• Equipment maintenance facilities
• Manufacturing plants
• Automotive and truck service facilities
• Grease and oil removal
• Commercial facility cleaning
• Agricultural equipment cleaning
• Warehouse maintenance
• Shop and garage cleaning
• Permanent stationary pressure washing installations

Limited Warranty

• 10-Year Frame Warranty
• 5-Year Pump Warranty
• 1-Year Motor Warranty delco-cleaning

Important Notes

• Verify part number 65184 and model ELM3040041BNG before ordering
• Rated for 3000 PSI at 4.0 GPM
• Motor is rated at 7.5 HP / 208-230V / 1Ø / 29A
• This specific model provides voltage selection between 208V and 230V delco-cleaning
• Equipped with an UDOR industrial triplex pump and belt drive
• Uses natural gas for the water-heating system
• Burner is rated at 380,000 BTU
• Confirm an adequate continuous water supply capable of supporting the required 4.0 GPM
• Verify voltage, amperage, circuit protection, wiring, and installation requirements before connecting the unit
• Natural gas supply, regulator, combustion air, exhaust, and venting must comply with applicable codes and manufacturer requirements
• Use only properly pressure- and temperature-rated hoses, fittings, spray guns, nozzles, and accessories
• Never operate the pump without an adequate water supply
• Disconnect electrical power, relieve system pressure, and allow heated components to cool before servicing
• Professional installation is recommended for permanent electrical and natural-gas connections
• Product images may vary slightly from the actual configuration
