Delco ELM3010041DNG Eliminator XL Series Electric Hot Water Pressure Washer – 3000 PSI, 10.0 GPM, 20 HP, 460V 3-Phase

Part Number: 65283
Category: Commercial Electric Hot Water Pressure Washers
Type: Eliminator XL Series Natural Gas Hot Water Pressure Washer – 3000 PSI, 10.0 GPM, 20 HP, 460V 3-Phase

The Delco ELM3010041DNG Eliminator XL Series Electric Hot Water Pressure Washer is a high-capacity stationary cleaning system delivering 3000 PSI at 10.0 GPM. Designed for demanding commercial and industrial environments, this Eliminator XL combines a powerful electric motor-driven pressure washer with a 750,000 BTU natural gas-fired heating system for high-volume hot-water cleaning.

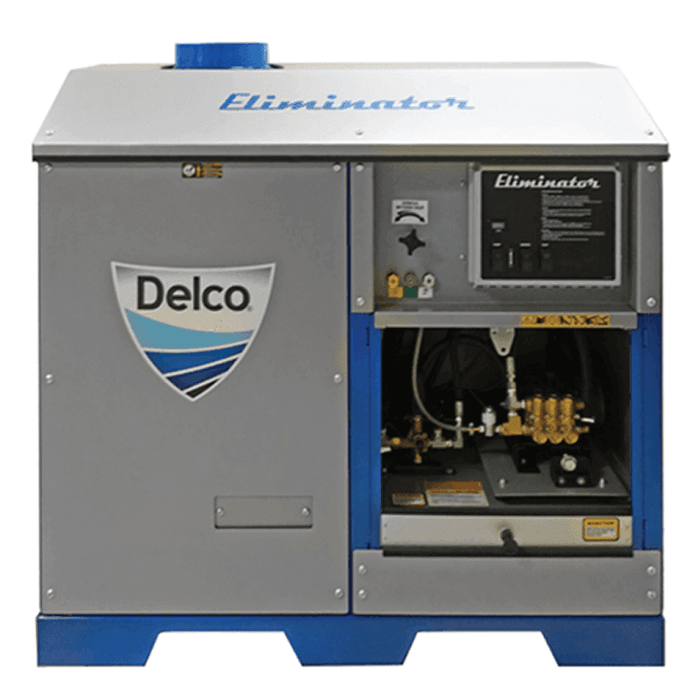

Image shown for illustrative purposes only

Product Specifications

• Part Number: 65283
• Brand: Delco
• Model Number: ELM3010041DNG
• Series: Eliminator XL
• Product Type: Stationary Electric Hot Water Pressure Washer
• Pressure Rating: 3000 PSI
• Flow Rate: 10.0 GPM
• Motor: 20 HP
• Motor Speed: 1750 RPM
• Voltage: 460V
• Phase: 3-Phase (3Ø)
• Amperage: 24A
• Pump: UDOR Industrial Triplex
• Drive Type: Belt Drive
• Burner Fuel: Natural Gas
• Burner Rating: 750,000 BTU
• Heating Coil: 1/2" Schedule 80 Vertical Coil
• Hose: 3/8" x 50' Steel-Braided Armor Hose
• Frame: Powder-Coated for Corrosion Resistance
• Panels: Corrosion-Resistant Stainless Steel Vented Panels
• Configuration: Stationary
• Condition: New

Features & Benefits

• High-volume 3000 PSI at 10.0 GPM cleaning performance
• Heavy-duty 20 HP electric motor
• 460V / 3-phase / 24A electrical configuration
• Slow-speed 1750 RPM operation
• UDOR industrial triplex pump
• Forged brass pump manifold
• Ceramic-coated plunger sleeves
• Thermal relief valve
• External unloader with bypass hose
• Heavy-duty belt-drive system
• Powerful 750,000 BTU natural gas-fired heating system
• High 10.0 GPM output provides substantial washing and rinsing capacity
• Hot water helps break down grease, oil, grime, and difficult industrial contaminants
• NEMA 4X electrical enclosure designed for demanding wash environments
• High-pressure soap system with metering valve
• Time-delay shutdown
• Remote operating box ready-wired
• Integrated float tank
• Heavy-duty 1/2" Schedule 80 vertical heating coil
• Protective enclosed cabinet design
• Corrosion-resistant stainless steel vented panels
• Designed for permanent, high-volume industrial cleaning installations

Unit Includes

• 3/8" x 50' Steel-Braided Armor Hose
• Trigger Gun
• Lance
• 15° Quick-Connect Nozzle
• 25° Quick-Connect Nozzle
• 40° Quick-Connect Nozzle
• High-Pressure Soap Injector

Applications

• High-volume industrial wash bays
• Fleet and commercial vehicle washing
• Heavy equipment cleaning
• Manufacturing and processing facilities
• Truck and transportation facilities
• Equipment maintenance operations
• Grease and oil removal
• Commercial facility cleaning
• Agricultural and construction equipment washing
• Warehouse and plant maintenance
• High-throughput stationary pressure washing
• Permanent industrial cleaning systems

Limited Warranty

• 10-Year Frame Warranty
• 5-Year Pump Warranty
• 1-Year Motor Warranty

Important Notes

• Verify part number 65283 and model ELM3010041DNG before ordering
• Rated for 3000 PSI at 10.0 GPM
• Motor is rated at 20 HP / 460V / 3Ø / 24A
• This model belongs under Electric Pressure Washers; natural gas is used for the water-heating burner
• Equipped with an UDOR industrial triplex pump and belt-drive system
• Uses natural gas for the hot-water heating system
• Burner is rated at 750,000 BTU
• The 10.0 GPM flow rate requires a substantial continuous water supply; verify the installation can maintain adequate inlet flow
• Verify voltage, phase, amperage, circuit protection, and wiring requirements before installation
• Natural gas supply, regulator, combustion air, exhaust, and venting must comply with applicable codes and manufacturer requirements
• Use only hoses, fittings, spray guns, nozzles, and accessories rated for the system's pressure, flow, and temperature
• Never operate the pump without an adequate water supply
• Disconnect electrical power, relieve system pressure, and allow heated components to cool before servicing
• Professional installation is recommended for permanent electrical and natural-gas connections
• Product images may vary slightly from the actual configuration
