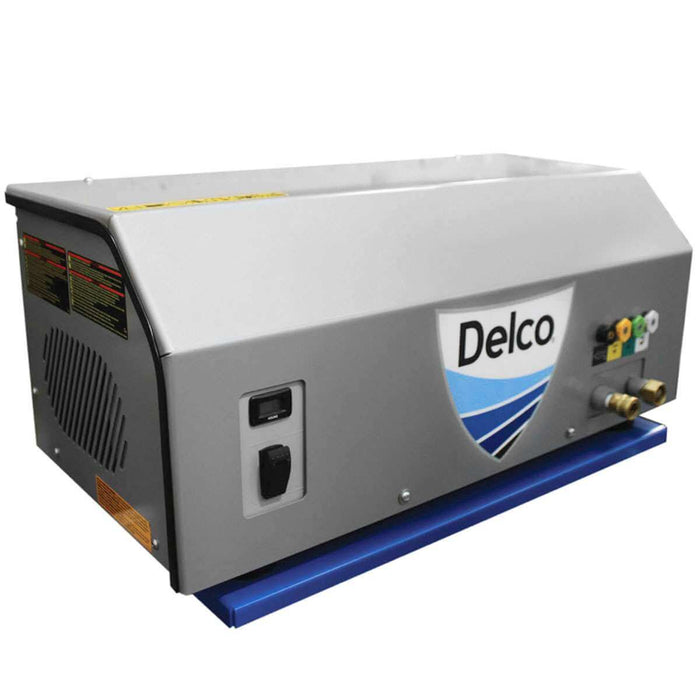

Delco DWM3540041B Electric Cold Water Wall-Mount Pressure Washer – 10 HP, 230V Single-Phase, 38A

Part Number: 65455
Category: Commercial Electric Cold Water Pressure Washers
Type: CWE Series Wall-Mount Electric Cold Water Pressure Washer – 3500 PSI, 4.0 GPM, 10 HP, 230V Single-Phase

The Delco DWM3540041B CWE Series Electric Cold Water Wall-Mount Pressure Washer is a heavy-duty stationary cleaning system delivering 3500 PSI at 4.0 GPM. Powered by a 10 HP electric motor operating on 230V single-phase power, this higher-pressure configuration is designed for commercial and industrial facilities requiring substantial cleaning performance from a permanently installed system.

Product Specifications

• Part Number: 65455
• Brand: Delco
• Model Number: DWM3540041B
• Series: CWE
• Product Type: Electric Cold Water Pressure Washer
• Pressure Rating: 3500 PSI
• Flow Rate: 4.0 GPM
• Motor: 10 HP
• Voltage: 230V
• Phase: Single-Phase (1Ø)
• Amperage: 38A
• Pump: UDOR Industrial Triplex
• Drive Type: Belt Drive
• Mounting Configuration: Large Wall Mount
• Frame Material: Steel
• Water Type: Cold Water
• Configuration: Stationary / Wall-Mounted
• Condition: New

Features & Benefits

• Delivers 3500 PSI at 4.0 GPM for demanding commercial cleaning
• Heavy-duty 10 HP electric motor
• 230V single-phase / 38A electrical configuration
• UDOR industrial triplex pump
• Heavy-duty belt-drive system
• High 3500 PSI output provides strong cleaning force for difficult buildup
• 4.0 GPM flow provides effective washing and rinsing performance
• Large wall-mount configuration helps conserve valuable facility floor space
• Durable steel mounting frame
• Electric motor eliminates the need for a gasoline-powered engine
• Cold-water design is ideal for applications where heated cleaning is not required
• Stationary installation creates a convenient dedicated pressure washing station
• Professional-duty configuration for frequent equipment and facility cleaning
• Well suited for fleet, manufacturing, maintenance, and commercial service environments

Applications

• Fleet maintenance facilities
• Automotive and truck service shops
• Heavy equipment cleaning
• Manufacturing facilities
• Equipment maintenance areas
• Commercial garages
• Machinery washing
• Warehouse and plant cleaning
• Agricultural equipment cleaning
• Construction equipment washing
• Commercial property maintenance
• Dedicated high-pressure wash stations

Important Notes

• Verify part number 65455 and model DWM3540041B before ordering
• Rated for 3500 PSI at 4.0 GPM
• Motor is rated at 10 HP / 230V / 1Ø / 38A
• Equipped with an UDOR industrial triplex pump
• Uses a belt-drive pump configuration
• Features a large steel wall-mount design
• This is a cold-water pressure washer and does not incorporate a hot-water burner
• This model should be categorized under Electric Pressure Washers → Cold Water Pressure Washers
• Confirm the wall structure and mounting hardware are suitable for the complete machine weight and operating loads
• Verify electrical service, circuit protection, wiring, grounding, and disconnect requirements before installation
• Ensure an adequate continuous water supply capable of supporting at least 4.0 GPM
• Use only hoses, fittings, spray guns, nozzles, and accessories rated for at least the system's 3500 PSI operating pressure
• Never operate the pump without an adequate water supply
• Disconnect electrical power and relieve system pressure before service or maintenance
• Professional electrical and structural installation is recommended
• Product images and component appearance may vary slightly from the actual configuration
