Delco DWM2040042B Electric Cold Water Wall-Mount Pressure Washer – 5 HP, 230V Single-Phase, 23A

Part Number: 65172
Category: Commercial Electric Cold Water Pressure Washers
Type: CWE Series Wall-Mount Electric Cold Water Pressure Washer – 2000 PSI, 4.0 GPM, 5 HP, 230V Single-Phase

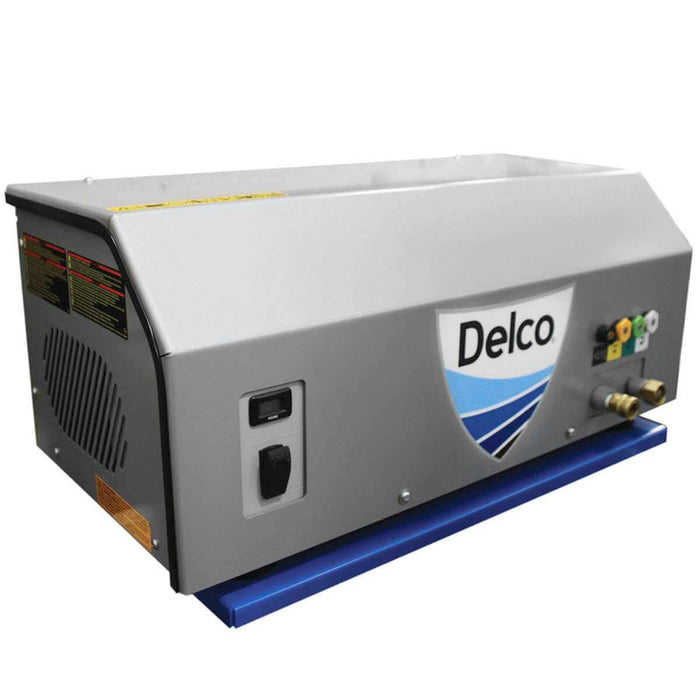

The Delco DWM2040042B CWE Series Electric Cold Water Wall-Mount Pressure Washer is a compact commercial cleaning system delivering 2000 PSI at 4.0 GPM. Powered by a 5 HP electric motor operating on 230V single-phase power, this model provides dependable cold-water pressure washing performance while conserving valuable floor space.

Product Specifications

• Part Number: 65172
• Brand: Delco
• Model Number: DWM2040042B
• Series: CWE
• Product Type: Electric Cold Water Pressure Washer
• Pressure Rating: 2000 PSI
• Flow Rate: 4.0 GPM
• Motor: 5 HP
• Voltage: 230V
• Phase: Single-Phase (1Ø)
• Amperage: 23A
• Pump: UDOR Industrial Triplex
• Drive Type: Direct Drive
• Mounting Configuration: Small Wall Mount
• Frame Material: Steel
• Water Type: Cold Water
• Configuration: Stationary / Wall-Mounted
• Condition: New

Features & Benefits

• Delivers 2000 PSI at 4.0 GPM for professional cold-water cleaning
• Heavy-duty 5 HP electric motor
• 230V single-phase / 23A electrical configuration
• UDOR industrial triplex pump
• Compact direct-drive pump system
• Small wall-mount design helps conserve valuable floor space
• Durable steel mounting frame
• Electric motor eliminates the need for a gasoline-powered engine
• 4.0 GPM flow provides strong washing and rinsing capability
• Cold-water design is ideal for applications where heated cleaning is unnecessary
• Stationary installation provides convenient access from a dedicated wash area
• Helps keep pressure washing equipment off the shop or facility floor
• Well suited for frequent commercial and industrial maintenance cleaning

Applications

• Automotive service shops
• Fleet maintenance facilities
• Commercial garages
• Equipment maintenance areas
• Manufacturing facilities
• Warehouse cleaning
• Shop and service-bay cleaning
• Machinery and equipment washing
• Agricultural equipment cleaning
• Commercial property maintenance
• Maintenance departments
• Dedicated stationary wash stations

Important Notes

• Verify part number 65172 and model DWM2040042B before ordering
• Rated for 2000 PSI at 4.0 GPM
• Motor is rated at 5 HP / 230V / 1Ø / 23A
• Equipped with an UDOR industrial triplex pump
• Uses a direct-drive pump configuration
• Features a small steel wall-mount design
• This is a cold-water pressure washer and does not incorporate a hot-water burner
• This model should be categorized under Electric Pressure Washers → Cold Water Pressure Washers
• Confirm the mounting surface and hardware can safely support the complete pressure washer and operating loads
• Confirm electrical service meets the required voltage, amperage, wiring, grounding, and circuit-protection requirements
• Ensure an adequate continuous water supply capable of supporting at least 4.0 GPM
• Use only hoses, fittings, spray guns, nozzles, and accessories rated for the system's operating pressure
• Never operate the pump without an adequate water supply
• Disconnect electrical power and relieve system pressure before performing service or maintenance
• Product images and component appearance may vary slightly from the actual configuration
