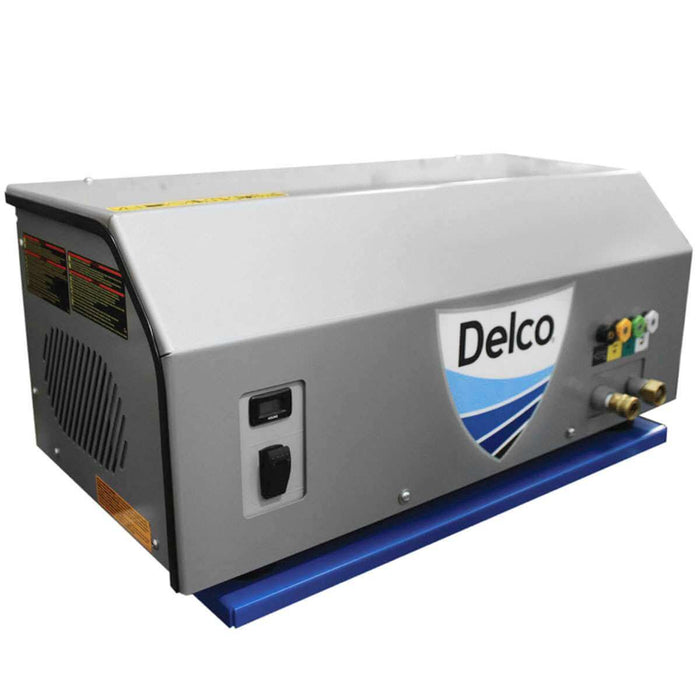

Delco DWM1330042B CWE Series Electric Cold Water Wall-Mount Pressure Washer – 3 HP, 230V Single-Phase, 13.2A

Part Number: 65171
Category: Commercial Electric Cold Water Pressure Washers
Type: CWE Series Wall-Mount Electric Cold Water Pressure Washer – 1300 PSI, 3.0 GPM, 3 HP, 230V Single-Phase

The Delco DWM1330042B CWE Series Electric Cold Water Pressure Washer is a compact commercial cleaning system delivering 1300 PSI at 3.0 GPM. Powered by a 3 HP electric motor operating on 230V single-phase power, this model is designed for permanent installations where dependable pressure washing performance is needed without the space requirements of a conventional portable machine.

Product Specifications

• Part Number: 65171
• Brand: Delco
• Model Number: DWM1330042B
• Series: CWE
• Product Type: Electric Cold Water Pressure Washer
• Pressure Rating: 1300 PSI
• Flow Rate: 3.0 GPM
• Motor: 3 HP
• Voltage: 230V
• Phase: Single-Phase (1Ø)
• Amperage: 13.2A
• Pump: UDOR Industrial Triplex
• Drive Type: Direct Drive
• Mounting Configuration: Small Wall Mount
• Frame Material: Steel
• Water Type: Cold Water
• Configuration: Stationary / Wall-Mounted
• Condition: New

Features & Benefits

• Delivers 1300 PSI at 3.0 GPM for commercial cleaning applications
• Heavy-duty 3 HP electric motor
• 230V single-phase / 13.2A electrical configuration
• UDOR industrial triplex pump
• Compact direct-drive pump system
• Small wall-mount configuration helps conserve valuable floor space
• Durable steel mounting frame
• Electric motor eliminates the need for a gasoline-powered engine
• Cold-water configuration simplifies operation where heated water is not required
• 3.0 GPM flow provides effective washing and rinsing performance
• Stationary installation keeps the pressure washer conveniently available in a dedicated cleaning area
• Well suited for shops, maintenance departments, service facilities, and commercial wash areas
• Professional-duty design for routine equipment and facility cleaning

Applications

• Automotive service shops
• Equipment maintenance facilities
• Commercial garages
• Fleet maintenance areas
• Manufacturing facilities
• Shop and warehouse cleaning
• Agricultural equipment cleaning
• Machinery and equipment washing
• Commercial property maintenance
• Maintenance departments
• Dedicated wash stations
• Space-conscious commercial installations

Important Notes

• Verify part number 65171 and model DWM1330042B before ordering
• Rated for 1300 PSI at 3.0 GPM
• Motor is rated at 3 HP / 230V / 1Ø / 13.2A
• Equipped with an UDOR industrial triplex pump
• Uses a direct-drive pump configuration
• Features a small steel wall-mount design
• This is a cold-water pressure washer and does not incorporate a hot-water burner
• This model should be categorized under Electric Pressure Washers → Cold Water Pressure Washers
• Confirm the mounting surface can safely support the complete pressure washer assembly and operating loads
• Confirm the available electrical service meets the required voltage, amperage, wiring, grounding, and circuit-protection requirements
• Ensure an adequate continuous water supply capable of supporting at least 3.0 GPM
• Use only hoses, fittings, spray guns, nozzles, and accessories rated for the system's operating pressure
• Never operate the pump without an adequate water supply
• Disconnect electrical power and relieve system pressure before performing service or maintenance
• Product images and component appearance may vary slightly from the actual configuration
