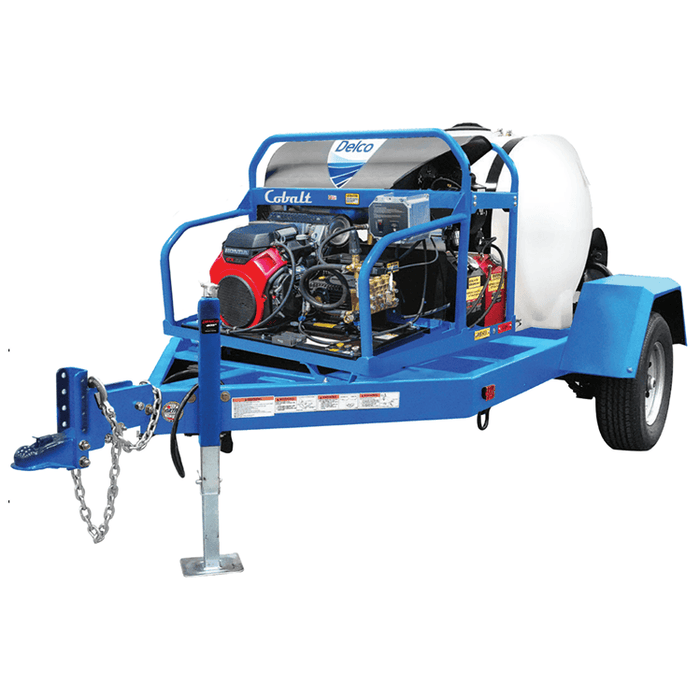

Delco DTRS33080241EAC1 Stage 3 Mobile Trailer Hot Water Pressure Washer – 3000 PSI, 8.0 GPM, Honda GX690 Engine

Part Number: 95177
Category: Commercial Hot Water Pressure Washer Trailers
Type: Stage 3 Mobile Trailer Hot Water Pressure Washer – 3000 PSI, 8.0 GPM, Honda GX690

The Delco DTRS33080241EAC1 Stage 3 Mobile Trailer Hot Water Pressure Washer is a high-flow, self-contained commercial cleaning system delivering 3000 PSI at 8.0 GPM. Powered by a Honda GX690 gasoline engine with recoil and electric key-start, this trailer-mounted system is built for professional cleaning operations requiring substantial water flow, hot-water cleaning capability, and a large onboard water supply.

Product Specifications

• Part Number: 95177
• Brand: Delco
• Model Number: DTRS33080241EAC1
• Series / Configuration: Stage 3
• Product Type: Mobile Trailer Hot Water Pressure Washer
• Pressure Rating: 3000 PSI
• Flow Rate: 8.0 GPM
• Engine: Honda GX690
• Starting System: Recoil / Electric Key-Start
• Pump: UDOR
• Drive Type: Belt Drive
• Trailer Rating: 5,200 lbs.
• Water Tank: (2) 525-Gallon
• Tire Size: ST225/75R15
• Electrical System: 120VAC
• Water Type: Hot Water
• Configuration: Mobile Trailer
• Condition: New

Features & Benefits

• Delivers 3000 PSI at 8.0 GPM for high-volume professional cleaning
• Proven Honda GX690 gasoline engine
• Convenient recoil and electric key-start
• Commercial-duty UDOR pump
• Heavy-duty belt-drive system
• High 8.0 GPM flow rate provides exceptional washing, flushing, and rinsing capacity
• 3000 PSI output provides strong cleaning force for commercial and industrial surfaces
• Hot-water operation helps break down grease, oil, grime, and stubborn contaminants
• Large 525-gallon onboard water capacity
• Stage 3 trailer configuration designed for high-capacity mobile cleaning operations
• 5,200-lb. rated trailer platform
• Equipped with ST225/75R15 tires
• 120VAC electrical system
• Self-contained design supports cleaning at remote locations where a convenient water source may not be available
• Ideal for professional contractors requiring greater water capacity and higher flow than smaller trailer systems
• Designed for demanding commercial, fleet, industrial, and equipment-cleaning applications

Applications

• Professional mobile pressure washing
• Fleet and truck washing
• Heavy equipment cleaning
• Construction equipment washing
• Agricultural and farm equipment cleaning
• Industrial equipment maintenance
• Oil and grease removal
• Commercial property maintenance
• Municipal and public works applications
• Parking facilities and garages
• Remote jobsite cleaning
• High-volume hot-water pressure washing

Important Notes

• Verify part number 95177 and model DTRS33080241EAC1 before ordering
• This model is the Stage 3 mobile trailer configuration
• Rated for 3000 PSI at 8.0 GPM
• Powered by a Honda GX690 engine
• Features recoil and electric key-start
• Equipped with an UDOR pump and belt-drive system
• Listed with 525-gallon water capacity
• Trailer is listed with a 5,200-lb. rating
• Equipped with ST225/75R15 tires
• Uses a 120VAC electrical system
• This is a hot-water pressure washer trailer system
• Use only hoses, spray guns, fittings, nozzles, and accessories rated for the system's operating pressure, flow, and hot-water temperature
• Never operate the pressure washer pump without an adequate water supply
• Always follow applicable trailer towing, loading, inspection, registration, and road-use requirements
• Confirm the tow vehicle, hitch, coupler, braking equipment, safety equipment, and electrical connection are suitable for the loaded trailer before transport
• A 525-gallon water load adds substantial weight, so applicable trailer payload, axle, and tow-vehicle limits must be carefully observed
• Product configuration and component appearance may vary slightly from images shown
