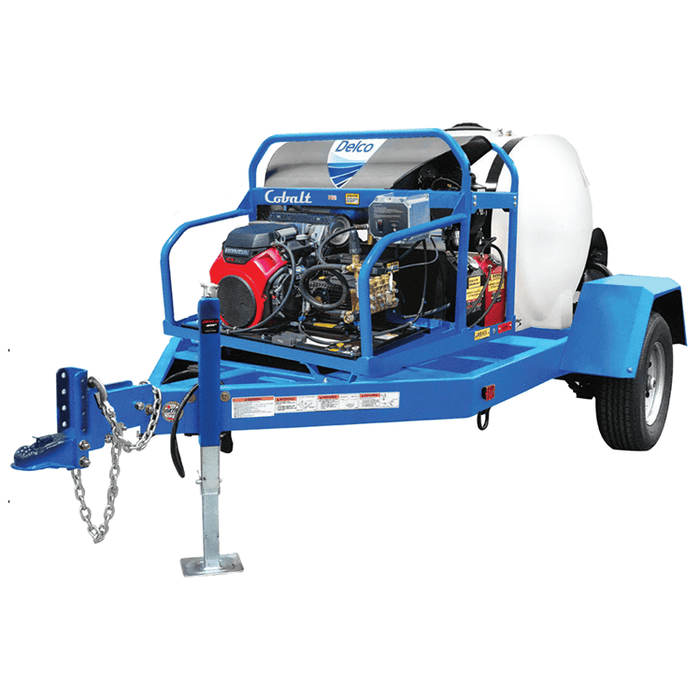

Delco DTRS23555141EDC1 Stage 2 Mobile Trailer Hot Water Pressure Washer – 3500 PSI, 5.5 GPM, CRX 680 Engine

Part Number: 95180
Category: Commercial Hot Water Pressure Washer Trailers
Type: Stage 2 Mobile Trailer Hot Water Pressure Washer – 3500 PSI, 5.5 GPM, CRX 680

The Delco DTRS23555141EDC1 Stage 2 Mobile Trailer Hot Water Pressure Washer is a self-contained commercial cleaning system delivering 3500 PSI at 5.5 GPM. Powered by a CRX 680 engine with recoil and electric key-start, this trailer-mounted unit is designed for professional cleaning operations requiring powerful hot-water performance and an onboard water supply.

Product Specifications

• Part Number: 95180
• Brand: Delco
• Model Number: DTRS23555141EDC1
• Series / Configuration: Stage 2
• Product Type: Mobile Trailer Hot Water Pressure Washer
• Pressure Rating: 3500 PSI
• Flow Rate: 5.5 GPM
• Engine: CRX 680
• Starting System: Recoil / Electric Key-Start
• Pump: UDOR
• Drive Type: Belt Drive
• Trailer Rating: 3,500 lbs.
• Water Tank: (1) 225-Gallon Tank
• Tire Size: ST205/75R14
• Electrical System: 12VDC
• Water Type: Hot Water
• Configuration: Mobile Trailer
• Condition: New

Features & Benefits

• Delivers 3500 PSI at 5.5 GPM for demanding professional cleaning
• Heavy-duty CRX 680 gasoline engine
• Convenient recoil and electric key-start
• Commercial-duty UDOR pump
• Professional belt-drive system
• Hot-water cleaning helps remove grease, oil, grime, and stubborn buildup
• Integrated 225-gallon water tank provides a substantial onboard water supply
• Mobile trailer configuration allows the complete cleaning system to travel between jobsites
• 3,500-lb. rated trailer platform
• Equipped with ST205/75R14 tires
• 12VDC electrical system
• 3500 PSI provides substantial cleaning force for equipment and hard surfaces
• 5.5 GPM flow rate delivers strong washing and rinsing capacity
• Onboard water storage makes the system well suited for locations where a convenient water source may not be available
• Designed for professional mobile and commercial pressure washing operations

Applications

• Mobile pressure washing businesses
• Fleet and truck washing
• Heavy equipment cleaning
• Construction equipment washing
• Agricultural equipment cleaning
• Oil and grease removal
• Commercial property maintenance
• Industrial equipment cleaning
• Municipal and public works applications
• Parking areas and garages
• Remote jobsite cleaning
• Professional hot-water pressure washing

Important Notes

• Verify part number 95180 and model DTRS23555141EDC1 before ordering
• This model is the Stage 2 mobile trailer configuration
• Rated for 3500 PSI at 5.5 GPM
• Powered by a CRX 680 engine
• Features recoil and electric key-start
• Equipped with an UDOR pump and belt-drive system
• Includes one 225-gallon water tank
• Trailer is listed with a 3,500-lb. rating
• Equipped with ST205/75R14 tires
• Uses a 12VDC electrical system
• This is a hot-water pressure washer trailer system
• Use only hoses, spray guns, fittings, nozzles, and accessories rated for the system's operating pressure and temperature
• Never operate the pressure washer pump without an adequate water supply
• Always follow applicable trailer towing, loading, inspection, registration, and road-use requirements
• Confirm the tow vehicle, hitch, coupler, safety equipment, and electrical connection are appropriate for the trailer before transport
• A full 225-gallon water tank adds substantial operating weight, so applicable trailer and tow-vehicle load limits must be observed
• Product configuration and component appearance may vary slightly from images shown
