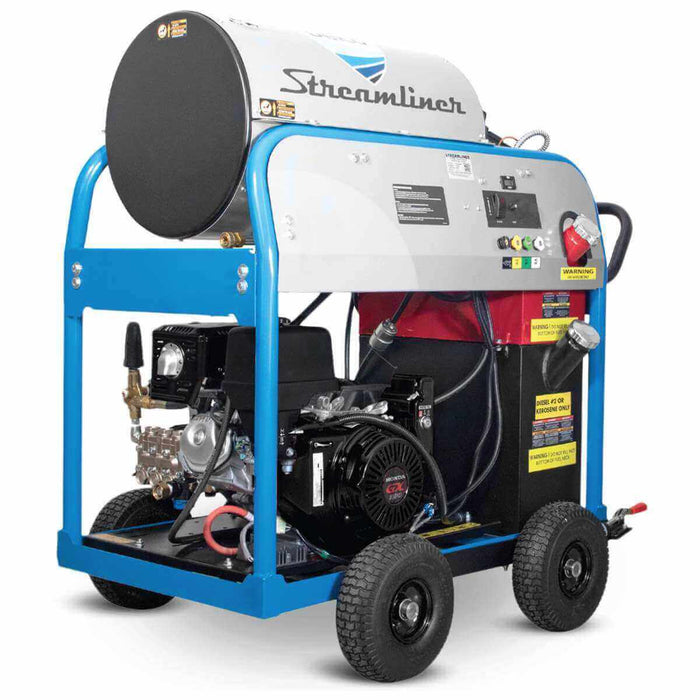

Delco DSL4040253EDC1 Streamliner Series Hot Water Pressure Washer – 4000 PSI, 4.0 GPM, Honda GX390 Engine

Part Number: 65016
Category: Commercial Hot Water Pressure Washers
Type: Streamliner Series Hot Water Pressure Washer – 4000 PSI, 4.0 GPM, Honda GX390 Engine

The Delco DSL4040253EDC1 Streamliner Series Hot Water Pressure Washer is a compact industrial cleaning system delivering 4000 PSI at 4.0 GPM. Designed for mobile professional cleaning, the Streamliner is compact enough for transport in a transit van or truck bed and is designed to pass through a 36-inch doorway. delco-cleaning

Product Specifications

• Part Number: 65016
• Brand: Delco
• Model Number: DSL4040253EDC1
• Series: Streamliner
• Product Type: Industrial Hot Water Pressure Washer
• Pressure Rating: 4000 PSI
• Flow Rate: 4.0 GPM
• Engine: Honda GX390, 389cc
• Engine Start: Key Start
• Pump: General Pump Industrial Triplex
• Drive Type: Gear Drive
• Pump Speed: 1750 RPM
• Generator: 3.4 kW with two 120V outlets
• Burner System: 120V
• Burner Fuel: No. 1 or No. 2 Diesel / Kerosene
• Coil: 1/2" Schedule 80 Horizontal Coil
• Gasoline Tank: 5.0 Gallons
• Diesel Tank: 10.0 Gallons
• Hose: 3/8" x 50' Steel-Braided Armor Hose
• Frame: Heavy-Duty 1-1/2" Round Tubular Steel
• Frame Finish: Powder-Coated
• Product Weight: 450 lbs.
• Dimensions: 50" L x 32" W x 47" H
• Condition: New delco-cleaning

Features & Benefits

• Delivers 4000 PSI at 4.0 GPM for demanding commercial and industrial cleaning
• Honda GX390 key-start engine provides professional gasoline-powered performance
• General Pump industrial triplex pump features a forged brass manifold, thermal relief valve, ceramic-coated plunger sleeves, and external unloader with bypass hose
• Gear-drive system paired with a slow-speed 1750 RPM pump configuration
• Hot-water cleaning helps break down grease, oil, grime, and stubborn buildup
• Burner on/off rocker switch and hour meter provide convenient system control and operating-time tracking
• High-temperature safety switch provides additional system protection
• Isolated pump and engine plate with vibration dampeners helps reduce operating vibration
• Integrated 3.4 kW generator with two 120V outlets
• 120V burner system operates using No. 1 diesel, No. 2 diesel, or kerosene
• Heavy-duty 1/2" Schedule 80 horizontal heating coil
• Wheel brake system helps secure the unit during operation
• Large 5-gallon gasoline and 10-gallon diesel tanks support extended professional use
• Heavy-duty powder-coated tubular steel frame provides strength and corrosion resistance
• Compact Streamliner design is suited for truck-bed and transit-van installations and movement through a 36" doorway delco-cleaning

Unit Includes

• 3/8" x 50' steel-braided Armor Hose
• Trigger Gun
• Lance
• 15°, 25°, and 40° Quick-Connect Nozzles
• Downstream Injector
• 10W-30 Engine Oil delco-cleaning

Applications

The Delco DSL4040253EDC1 Streamliner is suitable for:

• Commercial hot-water pressure washing
• Professional pressure washing contractors
• Heavy equipment cleaning
• Fleet and vehicle washing
• Grease and oil removal
• Concrete and hard-surface cleaning
• Construction equipment cleanup
• Industrial and facility maintenance
• Shop and service-area cleaning
• Mobile pressure washing operations
• Truck- and van-based cleaning setups

Limited Warranty

Delco's current catalog lists the following limited warranty coverage for Streamliner units:

• 10-Year Frame Warranty
• 5-Year Pump Warranty
• 3-Year Engine Warranty delco-cleaning

Important Notes

• Verify part number 65016 and model DSL4040253EDC1 before ordering
• Rated for 4000 PSI at 4.0 GPM
• Equipped with a Honda GX390 key-start engine and General Pump gear-drive system
• Battery is not included
• The Honda GX390 is equipped with low-oil shutdown technology
• This model is listed as 49-State/EPA compliant and not for sale in California
• Confirm the water supply can continuously support the 4.0 GPM flow requirement
• Burner is designed for No. 1 diesel, No. 2 diesel, or kerosene
• Use hoses, fittings, spray guns, nozzles, and accessories rated for the system's pressure and hot-water operation
• Hot water and heated components can cause burns; use appropriate protective equipment
• Never operate the pump without an adequate water supply
• Gasoline engines require adequate ventilation and should not be operated in enclosed spaces
• Relieve system pressure and allow heated components to cool before servicing
• Follow applicable Honda engine, General Pump, burner, generator, gear-drive, and pressure washer maintenance requirements
• Product images may vary slightly from the actual configuration.
