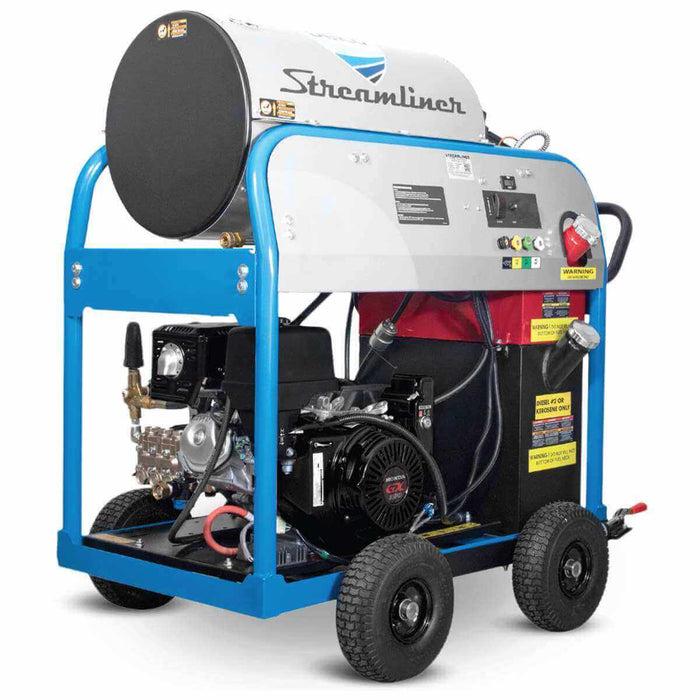

Delco DSL4040242EDC1 Streamliner Series Hot Water Pressure Washer – 4000 PSI, 4.0 GPM, Honda GX390 Engine

Part Number: 65361
Category: Commercial Hot Water Pressure Washers
Type: Streamliner Series Hot Water Pressure Washer – 4000 PSI, 4.0 GPM, Honda GX390 Engine

The Delco DSL4040242EDC1 Streamliner Series Hot Water Pressure Washer is a compact industrial hot-water cleaning system delivering 4000 PSI at 4.0 GPM. Designed for mobile professional cleaning, the Streamliner can fit within a transit van or truck bed and is compact enough to pass through a 36-inch doorway. delco-cleaning

Product Specifications

• Part Number: 65361
• Brand: Delco
• Model Number: DSL4040242EDC1
• Series: Streamliner
• Product Type: Industrial Hot Water Pressure Washer
• Pressure Rating: 4000 PSI
• Flow Rate: 4.0 GPM
• Engine: Honda GX390
• Engine Displacement: 389cc
• Starting System: Key Start
• Engine Protection: Low-Oil Shutdown
• Pump: UDOR Industrial Triplex
• Drive Type: Direct Drive
• Gasoline Tank: 5.0 Gallons
• Diesel Tank: 10.0 Gallons
• Generator: 3.4 kW with Two 120V Outlets
• Burner System: 120V
• Burner Fuel: No. 1 Diesel, No. 2 Diesel, or Kerosene
• Heating Coil: 1/2" Schedule 80 Horizontal Coil
• Hose: 3/8" x 50' Steel-Braided Armor Hose
• Frame: Heavy-Duty 1-1/2" Round Tubular Steel
• Frame Finish: Powder-Coated
• Dimensions: 50" L x 32" W x 47" H
• Product Weight: 450 lbs.
• Condition: New delco-cleaning

Features & Benefits

• Delivers 4000 PSI at 4.0 GPM for demanding commercial cleaning
• Honda GX390 389cc engine with convenient key-start operation
• Honda engine features low-oil shutdown protection
• UDOR industrial triplex pump with direct-drive configuration
• Forged brass pump manifold
• Thermal relief valve
• Ceramic-coated plunger sleeves
• External unloader with bypass hose
• Burner on/off rocker switch and hour meter
• High-temperature safety switch
• Isolated pump and engine plate with vibration dampeners
• Integrated 3.4 kW generator with two 120V outlets
• 120V burner system
• Wheel brake system
• Heavy-duty 1/2" Schedule 80 horizontal heating coil
• Large 5-gallon gasoline and 10-gallon diesel tanks
• Heavy-duty tubular steel frame with corrosion-resistant powder-coated finish
• Compact mobile design well suited for van- and truck-based pressure washing systems delco-cleaning

Unit Includes

• 3/8" x 50' Steel-Braided Armor Hose
• Trigger Gun
• Lance
• 15° Quick-Connect Nozzle
• 25° Quick-Connect Nozzle
• 40° Quick-Connect Nozzle
• Downstream Injector
• 10W-30 Engine Oil delco-cleaning

Applications

• Professional mobile pressure washing
• Commercial hot-water cleaning
• Fleet and vehicle washing
• Heavy equipment cleaning
• Construction equipment washing
• Grease and oil removal
• Concrete and hard-surface cleaning
• Commercial property maintenance
• Industrial and facility maintenance
• Truck- and van-mounted pressure washing operations

Limited Warranty

• 10-Year Frame Warranty
• 5-Year Pump Warranty
• 3-Year Engine Warranty delco-cleaning

Important Notes

• Verify part number 65361 and model DSL4040242EDC1 before ordering
• Rated for 4000 PSI at 4.0 GPM
• Equipped with a Honda GX390 key-start engine
• Uses an UDOR industrial triplex pump with direct drive
• Confirm an adequate continuous water supply for 4.0 GPM operation
• Burner accepts No. 1 diesel, No. 2 diesel, or kerosene
• Use only properly pressure- and temperature-rated hoses, fittings, spray guns, nozzles, and accessories
• Never operate the pump without an adequate water supply
• Provide proper ventilation when operating the gasoline engine
• Hot water, exhaust, burner components, and heating coil can reach hazardous temperatures
• Relieve system pressure and allow heated components to cool before servicing
• Follow applicable Honda, UDOR, burner, generator, and pressure washer maintenance procedures
• Manufacturer documentation lists this model as 49-State/EPA compliant and not for sale in California
• Product images may vary slightly from the actual configuration
