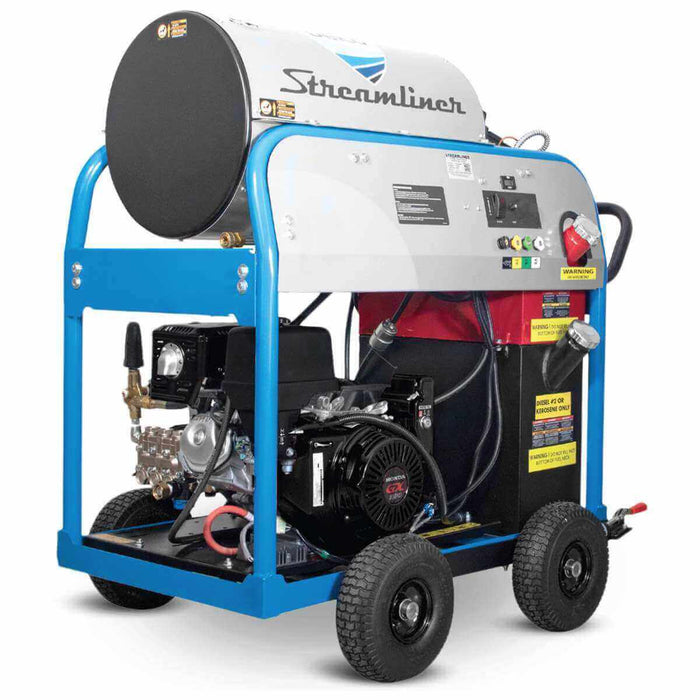

Delco DSL4040143EDC1 Streamliner Series Hot Water Pressure Washer – 4000 PSI, 4.0 GPM, CRX 420 Engine

Part Number: 65364
Category: Commercial Hot Water Pressure Washers
Type: Streamliner Series Hot Water Pressure Washer – 4000 PSI, 4.0 GPM, CRX 420 Engine

The Delco DSL4040143EDC1 Streamliner Series Hot Water Pressure Washer is a compact industrial hot-water cleaning system delivering 4000 PSI at 4.0 GPM. Designed for professional mobile cleaning, the Streamliner combines high-pressure washing, heated cleaning capability, and a space-efficient frame suitable for transit vans, truck beds, and other commercial wash setups.

Product Specifications

• Part Number: 65364
• Brand: Delco
• Model Number: DSL4040143EDC1
• Series: Streamliner
• Product Type: Industrial Hot Water Pressure Washer
• Pressure Rating: 4000 PSI
• Flow Rate: 4.0 GPM
• Engine: CRX 420
• Starting System: Key Start
• Pump: UDOR Industrial Triplex
• Drive Type: Gear Drive
• Pump Speed: 1750 RPM
• Gasoline Tank: 5.0 Gallons
• Diesel Tank: 10.0 Gallons
• Generator: 3.4 kW with Two 120V Outlets
• Burner System: 120V
• Burner Fuel: No. 1 Diesel, No. 2 Diesel, or Kerosene
• Heating Coil: 1/2" Schedule 80 Horizontal Coil
• Hose: 3/8" x 50' Steel-Braided Armor Hose
• Frame: Heavy-Duty 1-1/2" Round Tubular Steel
• Frame Finish: Powder-Coated
• Dimensions: 50" L x 32" W x 47" H
• Product Weight: 450 lbs.
• Condition: New

Features & Benefits

• Delivers 4000 PSI at 4.0 GPM for demanding commercial cleaning
• CRX 420 key-start engine
• UDOR industrial triplex pump
• Gear-drive system for efficient power transfer and reduced pump operating speed
• 1750 RPM slow-speed pump operation
• Forged brass pump manifold
• Ceramic-coated plunger sleeves
• Thermal relief valve
• External unloader with bypass hose
• Burner on/off rocker switch and hour meter
• High-temperature safety switch
• Isolated pump and engine plate with vibration dampeners
• Integrated 3.4 kW generator with two 120V outlets
• 120V burner system
• Wheel brake system for improved stability
• Heavy-duty 1/2" Schedule 80 horizontal heating coil
• Large 5-gallon gasoline and 10-gallon diesel tanks
• Powder-coated heavy-duty tubular steel frame
• Compact design well suited for mobile pressure washing operations

Unit Includes

• 3/8" x 50' Steel-Braided Armor Hose
• Trigger Gun
• Lance
• 15° Quick-Connect Nozzle
• 25° Quick-Connect Nozzle
• 40° Quick-Connect Nozzle
• Downstream Injector
• 10W-30 Engine Oil

Applications

• Professional mobile pressure washing
• Commercial hot-water cleaning
• Fleet and vehicle washing
• Heavy equipment cleaning
• Construction equipment washing
• Grease and oil removal
• Concrete and hard-surface cleaning
• Commercial property maintenance
• Industrial and facility maintenance
• Truck- and van-based pressure washing systems

Limited Warranty

• 10-Year Frame Warranty
• 5-Year Pump Warranty
• 3-Year Engine Warranty

Important Notes

• Verify part number 65364 and model DSL4040143EDC1 before ordering
• Rated for 4000 PSI at 4.0 GPM
• Powered by a CRX 420 key-start engine
• Equipped with an UDOR industrial triplex pump and gear-drive system
• Battery is not included
• Confirm an adequate continuous water supply for 4.0 GPM operation
• Burner accepts No. 1 diesel, No. 2 diesel, or kerosene
• Use only properly pressure- and temperature-rated hoses, fittings, spray guns, nozzles, and accessories
• Never operate the pump without an adequate water supply
• Gasoline engines require proper ventilation
• Hot water, burner components, exhaust, and heating coil can reach hazardous temperatures
• Relieve system pressure and allow heated components to cool before servicing
• Follow applicable CRX, UDOR, burner, generator, gear-drive, and pressure washer maintenance procedures
• Product images may vary slightly from the actual configuration
