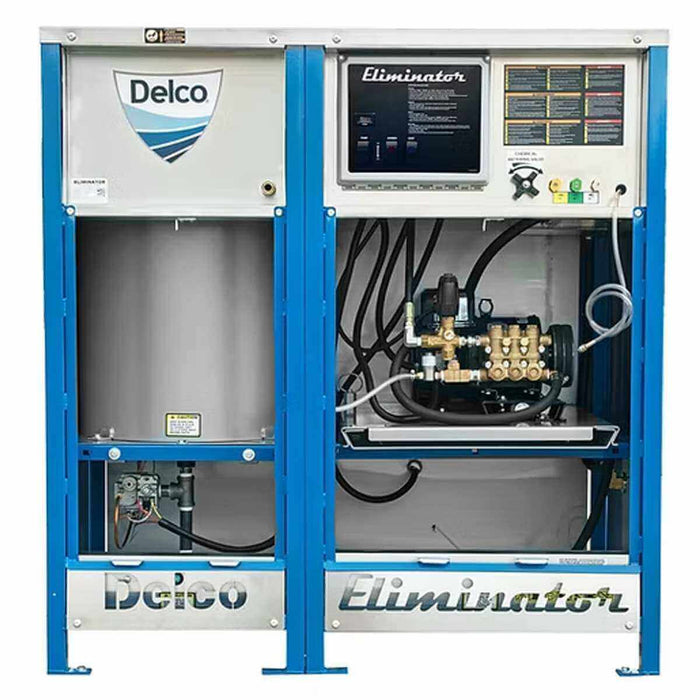

Delco DNG3080031D Eliminator Series Electric Hot Water Pressure Washer – 3000 PSI, 8.0 GPM, 15 HP, 460V 3-Phase

Part Number: 65049
Category: Commercial Electric Hot Water Pressure Washers
Type: Eliminator Series Natural Gas Hot Water Pressure Washer – 3000 PSI, 8.0 GPM, 15 HP, 460V 3-Phase

The Delco DNG3080031D Eliminator Series Electric Hot Water Pressure Washer is a stationary industrial cleaning system delivering 3000 PSI at 8.0 GPM. Designed for demanding commercial and industrial environments, the Eliminator combines electric-powered high-pressure performance with a natural gas-fired heating system for high-volume hot-water cleaning.

Image shown for illustrative purposes only

Product Specifications

• Part Number: 65049
• Brand: Delco
• Model Number: DNG3080031D
• Series: Eliminator
• Product Type: Electric Hot Water Pressure Washer
• Pressure Rating: 3000 PSI
• Flow Rate: 8.0 GPM
• Motor: 15 HP
• Voltage: 460V
• Phase: 3-Phase
• Amperage: 17.5A
• Pump: UDOR Industrial Triplex
• Drive Type: Belt Drive
• Burner Fuel: Natural Gas
• Burner Rating: 380,000 BTU
• Configuration: Stationary
• Condition: New

Features & Benefits

• Delivers 3000 PSI at 8.0 GPM for high-volume industrial cleaning
• Heavy-duty 15 HP electric motor
• 460V three-phase, 17.5A electrical configuration
• UDOR industrial triplex pump designed for professional-duty operation
• Belt-drive system helps reduce pump operating speed and isolate the pump from motor vibration
• Powerful 380,000 BTU natural gas-fired heating system
• High 8.0 GPM flow provides substantial washing and rinsing capacity
• Hot-water cleaning helps break down grease, oil, grime, and stubborn buildup
• Electric motor eliminates the need for a gasoline-powered pressure washer engine
• Stationary configuration is well suited for permanent wash bays and equipment-cleaning areas
• Designed for commercial and industrial facilities with compatible electrical, water, natural gas, and ventilation infrastructure
• Natural gas heating is well suited for facilities with an existing permanent gas supply

Applications

• Industrial wash bays
• Fleet and vehicle washing
• Heavy equipment cleaning
• Manufacturing facilities
• Equipment maintenance areas
• Grease and oil removal
• Commercial facility cleaning
• Transportation and service facilities
• Agricultural equipment cleaning
• Warehouse and plant maintenance
• High-volume stationary pressure washing

Important Notes

• Verify part number 65049 and model DNG3080031D before ordering
• Rated for 3000 PSI at 8.0 GPM
• Requires 460V three-phase electrical service
• Motor rating is 15 HP / 17.5A
• Equipped with an UDOR industrial triplex pump and belt drive
• Uses natural gas for the hot-water burner
• Burner input is rated at 380,000 BTU
• Natural gas powers the water-heating system; the pressure washer pump is driven by the electric motor
• Confirm an adequate continuous water supply capable of supporting the required 8.0 GPM
• Verify electrical voltage, phase, amperage, circuit protection, and wiring requirements before installation
• Natural gas supply, regulator, combustion air, exhaust, and venting must meet applicable codes and manufacturer requirements
• Use only pressure- and temperature-rated hoses, fittings, spray guns, nozzles, and accessories
• Never operate the pump without an adequate water supply
• Disconnect electrical power, relieve system pressure, and allow heated components to cool before servicing
• Professional installation is recommended for the permanent electrical and natural-gas connections
