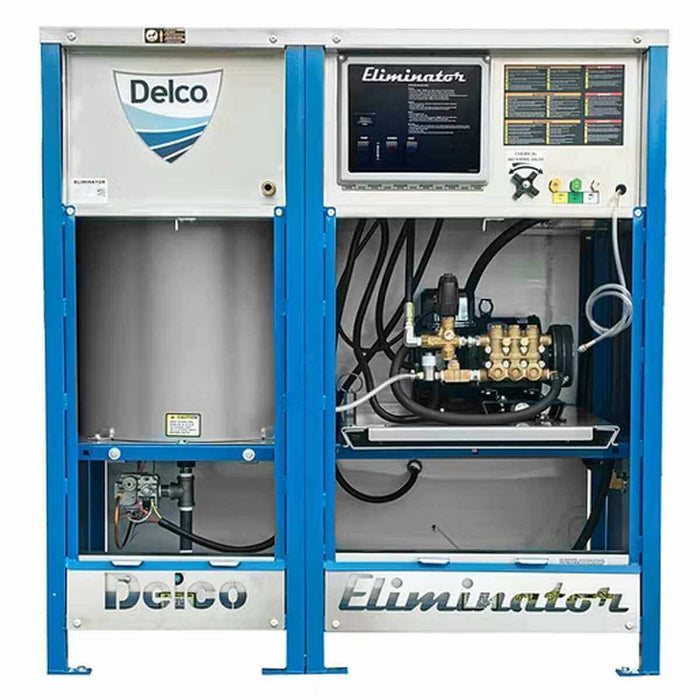

Delco DNG3080031C Eliminator Series Electric Hot Water Pressure Washer – 3000 PSI, 8.0 GPM, 15 HP, 230V 3-Phase

Part Number: 65048
Category: Commercial Electric Hot Water Pressure Washers
Type: Eliminator Series Natural Gas Hot Water Pressure Washer – 3000 PSI, 8.0 GPM, 15 HP, 230V 3-Phase

The Delco DNG3080031C Eliminator Series Electric Hot Water Pressure Washer is a stationary industrial cleaning system delivering 3000 PSI at 8.0 GPM. Designed for demanding commercial and industrial environments, the Eliminator combines an electric motor-driven high-pressure system with a natural gas-fired burner, eliminating the need for a gasoline engine while providing high-volume heated cleaning performance.

Image shown for illustrative purposes only

Product Specifications

• Part Number: 65048
• Brand: Delco
• Model Number: DNG3080031C
• Series: Eliminator
• Product Type: Electric Hot Water Pressure Washer
• Pressure Rating: 3000 PSI
• Flow Rate: 8.0 GPM
• Motor: 15 HP
• Electrical: 230V / 3-Phase / 35A
• Pump: UDOR Industrial Triplex
• Drive Type: Belt Drive
• Burner Fuel: Natural Gas
• Burner Rating: 380,000 BTU
• Configuration: Stationary
• Condition: New

Features & Benefits

• Delivers 3000 PSI at 8.0 GPM for high-volume industrial cleaning
• 15 HP electric motor eliminates the need for a gasoline-powered engine
• 230V three-phase commercial electrical configuration
• UDOR industrial triplex pump designed for professional-duty operation
• Belt-drive system helps reduce pump operating speed and isolate the pump from motor vibration
• 380,000 BTU natural gas-fired heating system
• High-flow 8.0 GPM output provides strong washing and rinsing capacity
• Hot-water operation helps break down grease, oil, grime, and stubborn buildup
• Stationary design is well suited for permanent wash bays and industrial cleaning areas
• Electric motor configuration avoids gasoline-engine exhaust at the pressure washer motor
• Designed for commercial and industrial facilities with compatible electrical, water, gas, and exhaust infrastructure

Applications

• Industrial wash bays
• Fleet and vehicle washing
• Heavy equipment cleaning
• Manufacturing facilities
• Equipment maintenance areas
• Grease and oil removal
• Commercial facility cleaning
• Transportation and service facilities
• Agricultural equipment cleaning
• High-volume stationary pressure washing

Important Notes

• Verify part number 65048 and model DNG3080031C before ordering
• Rated for 3000 PSI at 8.0 GPM
• Requires 230V, three-phase electrical service
• Motor rating is 15 HP / 35A
• Equipped with an UDOR industrial triplex pump and belt drive
• Uses natural gas for the hot-water burner
• Burner input is rated at 380,000 BTU
• This is an electric-motor pressure washer; natural gas is used for the water-heating system
• Confirm an adequate continuous water supply capable of supporting at least the required 8.0 GPM
• Electrical installation should be performed according to applicable electrical codes and manufacturer requirements
• Natural gas supply, regulator, venting, combustion air, and exhaust installation must meet applicable codes and manufacturer specifications
• Use only pressure- and temperature-rated hoses, fittings, spray guns, nozzles, and accessories
• Never operate the pump without an adequate water supply
• Relieve system pressure, disconnect electrical power, and allow heated components to cool before servicing
• Professional installation is recommended for stationary electrical and natural-gas connections
