Delco DLP3080031C Eliminator Series Electric Hot Water Pressure Washer – 3000 PSI, 8.0 GPM, 15 HP, 230V 3-Phase

Part Number: 65050
Category: Commercial Electric Hot Water Pressure Washers
Type: Eliminator Series Liquid Propane Hot Water Pressure Washer – 3000 PSI, 8.0 GPM, 15 HP, 230V 3-Phase

The Delco DLP3080031C Eliminator Series Electric Hot Water Pressure Washer is a heavy-duty stationary cleaning system delivering 3000 PSI at 8.0 GPM. Designed for high-demand commercial and industrial environments, the Eliminator combines electric-powered pressure washing with a liquid propane-fired heating system for powerful hot-water cleaning.

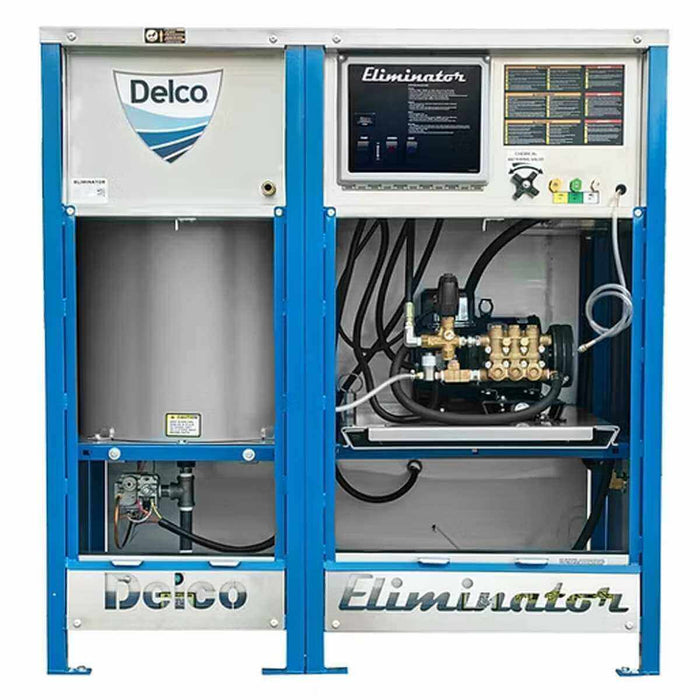

Image shown for illustrative purposes only

Product Specifications

• Part Number: 65050
• Brand: Delco
• Model Number: DLP3080031C
• Series: Eliminator
• Product Type: Stationary Electric Hot Water Pressure Washer
• Pressure Rating: 3000 PSI
• Flow Rate: 8.0 GPM
• Motor: 15 HP
• Motor Speed: 1750 RPM
• Voltage: 230V
• Phase: 3-Phase
• Amperage: 35A
• Pump: UDOR Industrial Triplex
• Drive Type: Belt Drive
• Burner Fuel: Liquid Propane
• Burner Rating: 450,000 BTU
• Heating Coil: 1/2" Schedule 80 Vertical Coil
• Hose: 3/8" x 50' Steel-Braided Armor Hose
• Frame Finish: Powder-Coated
• Panels: Corrosion-Resistant Stainless Steel Vented Panels
• Dimensions: 30" L x 50" W x 53" H
• Product Weight: 814 lbs.
• Configuration: Stationary
• Condition: New delco-cleaning

Features & Benefits

• Delivers 3000 PSI at 8.0 GPM for high-volume industrial cleaning
• Heavy-duty 15 HP electric motor
• 230V / 3-phase / 35A electrical configuration
• Slow-speed 1750 RPM operation
• UDOR industrial triplex pump
• Forged brass pump manifold
• Ceramic-coated plunger sleeves
• Thermal relief valve
• External unloader with bypass hose
• Belt-drive configuration for professional-duty operation
• Powerful 450,000 BTU liquid propane burner
• NEMA 4X electrical enclosure with rocker switch, hour meter, and soap control switch
• High-pressure soap system with metering valve
• Time-delay shutdown
• Remote operating box ready-wired
• Integrated float tank
• Heavy-duty 1/2" Schedule 80 vertical heating coil
• Roll-down locking doors help protect internal components
• Slide-out motor and pump tray simplifies service access
• Powder-coated frame with corrosion-resistant stainless steel vented panels
• Wall-mount capability for stationary installations delco-cleaning

Unit Includes

• 3/8" x 50' Steel-Braided Armor Hose
• Trigger Gun
• Lance
• 15° Quick-Connect Nozzle
• 25° Quick-Connect Nozzle
• 40° Quick-Connect Nozzle
• High-Pressure Soap Injector delco-cleaning

Applications

• Industrial wash bays
• Fleet and vehicle washing
• Heavy equipment cleaning
• Manufacturing facilities
• Equipment maintenance areas
• Grease and oil removal
• Commercial facility cleaning
• Transportation and service facilities
• Agricultural equipment cleaning
• Warehouse and plant maintenance
• Permanent high-volume pressure washing stations

Limited Warranty

• 10-Year Frame Warranty
• 5-Year Pump Warranty
• 1-Year Motor Warranty delco-cleaning

Important Notes

• Verify part number 65050 and model DLP3080031C before ordering
• Rated for 3000 PSI at 8.0 GPM
• Requires 230V three-phase electrical service
• Motor is rated at 15 HP / 35A
• Equipped with an UDOR industrial triplex pump and belt drive
• Uses liquid propane (LP) for the water-heating system
• Burner is rated at 450,000 BTU
• Confirm an adequate continuous water supply for the required 8.0 GPM flow
• Verify voltage, phase, amperage, circuit protection, and wiring before installation
• LP gas supply, regulator, combustion air, exhaust, and venting must meet applicable codes and manufacturer requirements
• Use only properly pressure- and temperature-rated hoses, fittings, spray guns, nozzles, and accessories
• Never operate the pump without an adequate water supply
• Disconnect electrical power, relieve pressure, and allow heated components to cool before servicing
• Professional installation is recommended for permanent electrical and liquid propane connections
• Product images may vary slightly from the actual configuration
