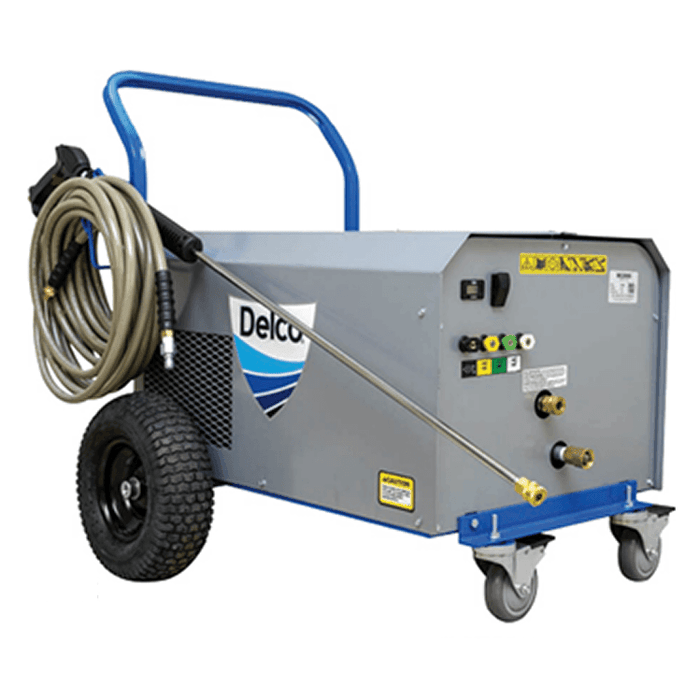

Delco DFMSS3050041C CWE Series Stainless Steel Electric Cold Water Floor-Mount Pressure Washer – 10 HP, 230V 3-Phase, 25A

Part Number: 65293
Category: Commercial Electric Cold Water Pressure Washers
Type: CWE Series Stainless Steel Electric Cold Water Pressure Washer – 3000 PSI, 5.0 GPM, 10 HP, 230V 3-Phase

The Delco DFMSS3050041C CWE Series Stainless Steel Electric Cold Water Floor-Mount Pressure Washer is a heavy-duty commercial cleaning system delivering 3000 PSI at 5.0 GPM. Powered by a 10 HP electric motor operating on 230V three-phase power, this unit provides a strong combination of cleaning pressure and water flow for demanding commercial and industrial applications.

Product Specifications

• Part Number: 65293
• Brand: Delco
• Model Number: DFMSS3050041C
• Series: CWE
• Product Type: Stainless Steel Electric Cold Water Pressure Washer
• Pressure Rating: 3000 PSI
• Flow Rate: 5.0 GPM
• Motor: 10 HP
• Voltage: 230V
• Phase: 3-Phase (3Ø)
• Amperage: 25A
• Pump: UDOR Industrial Triplex
• Drive Type: Belt Drive
• Frame Configuration: Large Portable
• Frame Material: Stainless Steel
• Water Type: Cold Water
• Condition: New

Features & Benefits

• Delivers 3000 PSI at 5.0 GPM for demanding professional cleaning
• Heavy-duty 10 HP electric motor
• 230V / 3-phase / 25A electrical configuration
• Equipped with an UDOR industrial triplex pump
• Professional-duty belt-drive system
• 3000 PSI output provides strong cleaning force for equipment and hard surfaces
• 5.0 GPM flow rate provides excellent washing, flushing, and rinsing capacity
• Large portable configuration provides mobility around commercial and industrial facilities
• Durable stainless steel frame
• Stainless steel construction provides enhanced resistance to corrosion and moisture exposure
• Electric operation eliminates the need for a gasoline-powered engine
• No exhaust emissions from an engine at the point of use
• Cold-water design eliminates the complexity of a hot-water burner system
• Well suited for frequent commercial and industrial pressure washing
• Combines high cleaning pressure with increased water volume for efficient removal of dirt and debris

Applications

• Fleet and commercial vehicle washing
• Heavy equipment cleaning
• Construction equipment washing
• Agricultural equipment cleaning
• Manufacturing facilities
• Industrial equipment maintenance
• Automotive and truck service facilities
• Machinery washing
• Warehouse and plant maintenance
• Commercial facility cleaning
• Wash-down environments
• Professional cold-water pressure washing

Important Notes

• Verify part number 65293 and model DFMSS3050041C before ordering
• Rated for 3000 PSI at 5.0 GPM
• Motor is rated at 10 HP / 230V / 3Ø / 25A
• Equipped with an UDOR industrial triplex pump
• Uses a belt-drive pump configuration
• Features a large portable stainless steel frame
• Stainless steel provides enhanced corrosion resistance but still requires routine cleaning and maintenance
• This is a cold-water pressure washer and does not incorporate a hot-water burner
• This model should be categorized under Electric Pressure Washers → Cold Water Pressure Washers
• Confirm electrical service, voltage, phase, amperage, wiring, grounding, circuit protection, and disconnect requirements before installation
• Ensure an adequate continuous water supply capable of supporting at least 5.0 GPM
• Use only hoses, fittings, spray guns, nozzles, and accessories rated for the system's 3000 PSI operating pressure
• Never operate the pump without an adequate water supply
• Disconnect electrical power and relieve system pressure before performing service or maintenance
• Professional electrical installation is recommended for the 230V three-phase connection
• Product images and component appearance may vary slightly from the actual configuration
