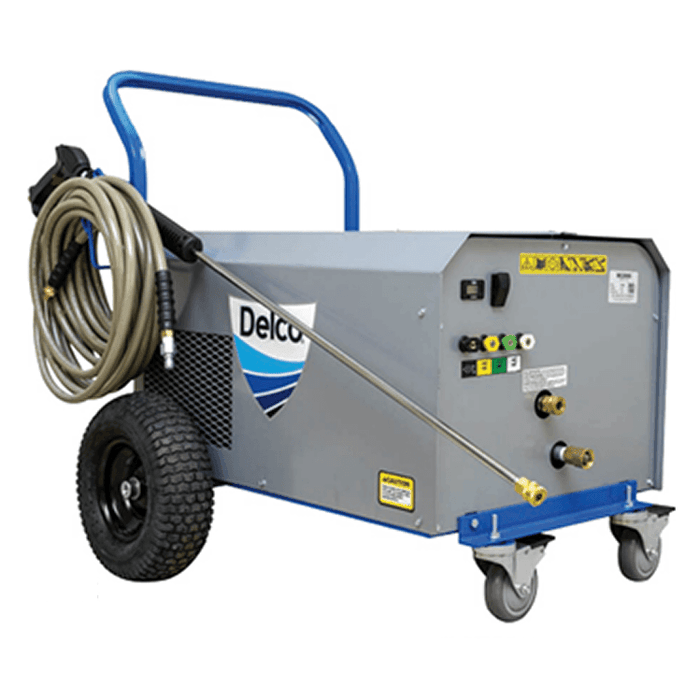

Delco DFMSS3040041D CWE Series Stainless Steel Electric Cold Water Floor-Mount Pressure Washer – 7.5 HP, 460V 3-Phase, 9.5A

Part Number: 65296
Category: Commercial Electric Cold Water Pressure Washers
Type: CWE Series Stainless Steel Electric Cold Water Pressure Washer – 3000 PSI, 4.0 GPM, 7.5 HP, 460V 3-Phase

The Delco DFMSS3040041D CWE Series Stainless Steel Electric Cold Water Floor-Mount Pressure Washer is a commercial-duty cleaning system delivering 3000 PSI at 4.0 GPM. Powered by a 7.5 HP electric motor operating on 460V three-phase power, this model combines professional cold-water cleaning performance with a durable stainless steel portable frame.

Product Specifications

• Part Number: 65296
• Brand: Delco
• Model Number: DFMSS3040041D
• Series: CWE
• Product Type: Stainless Steel Electric Cold Water Pressure Washer
• Pressure Rating: 3000 PSI
• Flow Rate: 4.0 GPM
• Motor: 7.5 HP
• Voltage: 460V
• Phase: 3-Phase (3Ø)
• Amperage: 9.5A
• Pump: UDOR Industrial Triplex
• Drive Type: Belt Drive
• Frame Configuration: Large Portable
• Frame Material: Stainless Steel
• Water Type: Cold Water
• Condition: New

Features & Benefits

• Delivers 3000 PSI at 4.0 GPM for professional cold-water cleaning
• Heavy-duty 7.5 HP electric motor
• 460V / 3-phase / 9.5A electrical configuration
• UDOR industrial triplex pump
• Professional-duty belt-drive system
• High 3000 PSI output provides strong cleaning force for equipment and hard surfaces
• 4.0 GPM flow provides effective washing and rinsing performance
• Large portable configuration provides mobility around commercial and industrial facilities
• Stainless steel frame provides enhanced corrosion resistance and durability
• Electric motor eliminates the need for a gasoline-powered engine
• Cold-water configuration is ideal for applications where heated cleaning is unnecessary
• Stainless steel construction is well suited for demanding environments where equipment may be routinely exposed to moisture
• Designed for frequent commercial and industrial cleaning applications

Applications

• Fleet and commercial vehicle washing
• Heavy equipment cleaning
• Manufacturing facilities
• Industrial equipment maintenance
• Construction equipment washing
• Automotive and truck service facilities
• Agricultural equipment cleaning
• Machinery washing
• Warehouse and plant maintenance
• Commercial facility cleaning
• Wash-down environments
• Professional cold-water pressure washing

Important Notes

• Verify part number 65296 and model DFMSS3040041D before ordering
• Rated for 3000 PSI at 4.0 GPM
• Motor is rated at 7.5 HP / 460V / 3Ø / 9.5A
• Equipped with an UDOR industrial triplex pump
• Uses a belt-drive pump configuration
• Features a large portable stainless steel frame
• Stainless steel construction provides enhanced corrosion resistance but still requires routine cleaning and maintenance
• This is a cold-water pressure washer and does not incorporate a hot-water burner
• This model should be categorized under Electric Pressure Washers → Cold Water Pressure Washers
• Confirm electrical service, voltage, phase, amperage, wiring, grounding, circuit protection, and disconnect requirements before installation
• Ensure an adequate continuous water supply capable of supporting at least 4.0 GPM
• Use only hoses, fittings, spray guns, nozzles, and accessories rated for the system's 3000 PSI operating pressure
• Never operate the pump without an adequate water supply
• Disconnect electrical power and relieve system pressure before performing service or maintenance
• Professional electrical installation is recommended for the 460V three-phase connection
• Product images and component appearance may vary slightly from the actual configuration
