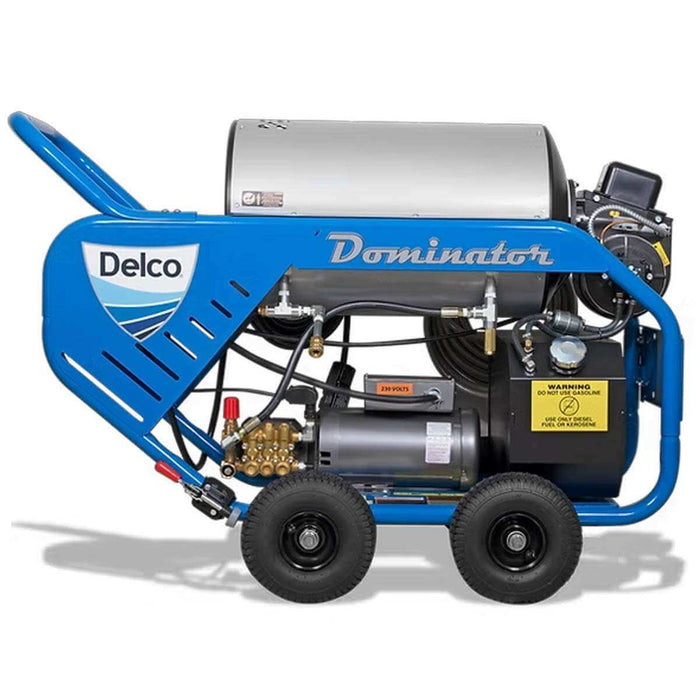

Delco DDM2040042BAC2 Dominator Series Electric Hot Water Pressure Washer – 5 HP, 230V Single-Phase, 23A

Part Number: 65384
Category: Commercial Electric Hot Water Pressure Washers
Type: Dominator Series Electric Hot Water Pressure Washer – 2000 PSI, 4.0 GPM, 5 HP, 230V Single-Phase

The Delco DDM2040042BAC2 Dominator Series Electric Hot Water Pressure Washer is a commercial-duty cleaning system delivering 2000 PSI at 4.0 GPM. Powered by a 5 HP electric motor, this model operates on 230V single-phase power, providing professional hot-water cleaning performance without a gasoline engine driving the pressure washer pump.

Product Specifications

• Part Number: 65384
• Brand: Delco
• Model Number: DDM2040042BAC2
• Series: Dominator
• Product Type: Electric Hot Water Pressure Washer
• Pressure Rating: 2000 PSI
• Flow Rate: 4.0 GPM
• Motor: 5 HP
• Voltage: 230V
• Phase: Single-Phase (1Ø)
• Amperage: 23A
• Pump: UDOR Industrial Triplex
• Drive Type: Direct Drive
• Fuel Tank Capacity: 6.7 Gallons
• Configuration: Portable Electric Hot Water Pressure Washer
• Condition: New

Features & Benefits

• Delivers 2000 PSI at 4.0 GPM for professional hot-water cleaning
• Heavy-duty 5 HP electric motor
• 230V single-phase electrical configuration
• 23A electrical rating
• UDOR industrial triplex pump
• Compact direct-drive pump configuration
• Hot-water cleaning helps loosen grease, oil, grime, and difficult buildup
• Built-in 6.7-gallon fuel tank supports burner operation
• 4.0 GPM flow provides effective washing and rinsing performance
• Electric motor eliminates the need for a gasoline engine to drive the pressure washer pump
• Commercial-duty configuration for frequent professional cleaning
• Well suited for facilities where electric-powered pressure washing is preferred
• Compact Dominator design works well for shops, maintenance facilities, and other commercial cleaning environments

Applications

• Commercial equipment cleaning
• Automotive and truck service shops
• Fleet maintenance
• Facility maintenance
• Grease and oil removal
• Shop and garage cleaning
• Parts and machinery cleaning
• Agricultural equipment washing
• Commercial property maintenance
• Warehouse cleaning
• Industrial maintenance
• Professional hot-water washing applications

Important Notes

• Verify part number 65384 and model DDM2040042BAC2 before ordering
• Rated for 2000 PSI at 4.0 GPM
• Motor is rated at 5 HP / 230V / 1Ø / 23A
• Equipped with an UDOR industrial triplex pump
• Uses a direct-drive pump configuration
• Built-in fuel tank capacity is 6.7 gallons
• This model should be categorized under Electric Pressure Washers → Hot Water Pressure Washers
• Confirm the available electrical service meets the manufacturer's voltage, amperage, wiring, and circuit-protection requirements
• Confirm an adequate continuous water supply capable of supporting at least 4.0 GPM
• Use only pressure- and temperature-rated hoses, fittings, spray guns, nozzles, and accessories
• Never operate the pump without an adequate water supply
• Burner, exhaust, and heating components can reach hazardous temperatures during operation
• Disconnect electrical power, relieve system pressure, and allow heated components to cool before servicing
• Follow Delco and UDOR operating and maintenance recommendations
• Product images and component appearance may vary slightly from the actual configuration
