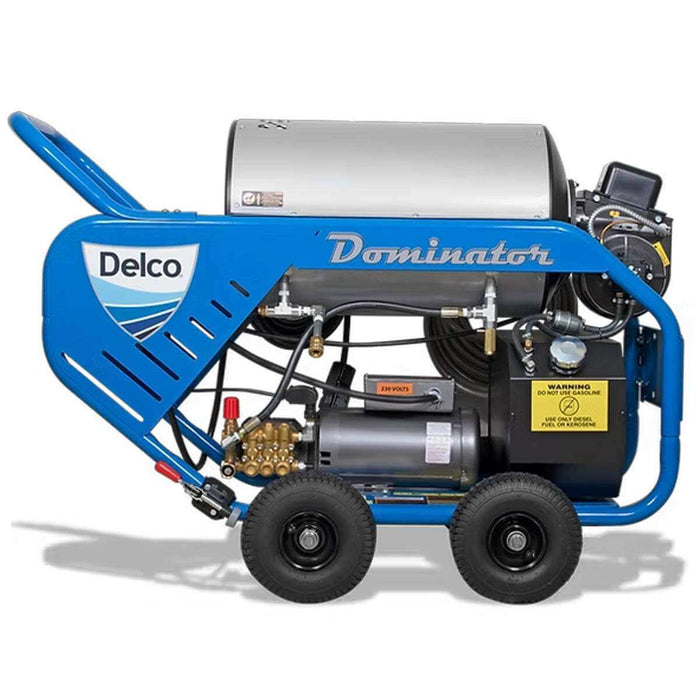

Delco DDM1030042AAC1 Dominator Series Electric Hot Water Pressure Washer – 2 HP, 120V Single-Phase, 16.4A

Part Number: 65383
Category: Commercial Electric Hot Water Pressure Washers
Type: Dominator Series Electric Hot Water Pressure Washer – 1000 PSI, 3.0 GPM, 2 HP, 120V Single-Phase

The Delco DDM1030042AAC1 Dominator Series Electric Hot Water Pressure Washer is a compact commercial cleaning system delivering 1000 PSI at 3.0 GPM. Powered by a 2 HP electric motor, this model operates on 120V single-phase power, making it a practical option for applications where standard-voltage electric operation is preferred over a gasoline-powered pressure washer.

Product Specifications

• Part Number: 65383
• Brand: Delco
• Model Number: DDM1030042AAC1
• Series: Dominator
• Product Type: Electric Hot Water Pressure Washer
• Pressure Rating: 1000 PSI
• Flow Rate: 3.0 GPM
• Motor: 2 HP
• Voltage: 120V
• Phase: Single-Phase (1Ø)
• Amperage: 16.4A
• Pump: UDOR Industrial Triplex
• Drive Type: Direct Drive
• Fuel Tank Capacity: 6.7 Gallons
• Configuration: Portable Electric Hot Water Pressure Washer
• Condition: New

Features & Benefits

• Delivers 1000 PSI at 3.0 GPM for commercial hot-water cleaning
• 2 HP electric motor eliminates the need for a gasoline engine to drive the pump
• Operates on 120V single-phase power
• 16.4A electrical rating
• UDOR industrial triplex pump
• Compact direct-drive pump configuration
• Hot-water cleaning helps loosen grease, oil, grime, and stubborn residue
• 6.7-gallon fuel tank supports extended burner operation
• 3.0 GPM flow provides effective washing and rinsing performance
• Electric motor operation is well suited for facilities where gasoline-engine equipment is undesirable
• Commercial-duty configuration for maintenance and professional cleaning
• Compact design makes the Dominator suitable for shops, service facilities, and other space-conscious cleaning applications

Applications

• Commercial equipment cleaning
• Automotive and truck service shops
• Facility maintenance
• Shop and garage cleaning
• Grease and oil removal
• Parts and machinery cleaning
• Fleet maintenance
• Agricultural equipment cleaning
• Commercial property maintenance
• Warehouse and industrial cleaning
• Professional hot-water washing applications

Important Notes

• Verify part number 65383 and model DDM1030042AAC1 before ordering
• Rated for 1000 PSI at 3.0 GPM
• Motor is rated at 2 HP / 120V / 1Ø / 16.4A
• Equipped with an UDOR industrial triplex pump
• Uses a direct-drive pump configuration
• Fuel tank capacity is 6.7 gallons
• This model should be categorized under Electric Pressure Washers → Hot Water Pressure Washers
• Confirm the available electrical circuit meets the manufacturer's voltage, amperage, wiring, and circuit-protection requirements
• Confirm an adequate continuous water supply capable of supporting at least 3.0 GPM
• Use only pressure- and temperature-rated hoses, fittings, spray guns, nozzles, and accessories
• Never operate the pump without an adequate water supply
• Burner and heating components can reach hazardous temperatures during operation
• Disconnect electrical power, relieve system pressure, and allow heated components to cool before servicing
• Follow Delco and UDOR maintenance and operating recommendations
• Product images and component appearance may vary slightly from the actual configuration
